New MotorCAD machine topology: Axial flux motors
Axial flux available topologies
Ansys MotorCAD supports 3 different axial flux topologies, including (Double Rotor - Single Stator), (Single Rotor- Single Stator) and (Single Rotor- Double Stator)
Double Rotor - Single Stator
Single Rotor - Single Stator
Single Rotor - Double Stator

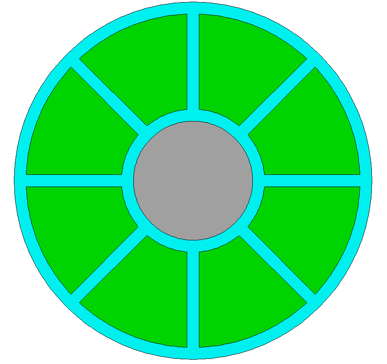

Multiple user views: Radial - Axial - Linear and 3D
Ansys MotorCAD Axial is a powerful new feature that enables engineers to design and optimize Axial flux electric motors with ease. Engineers will have full control and will be capable of viewing the machine at different angles.

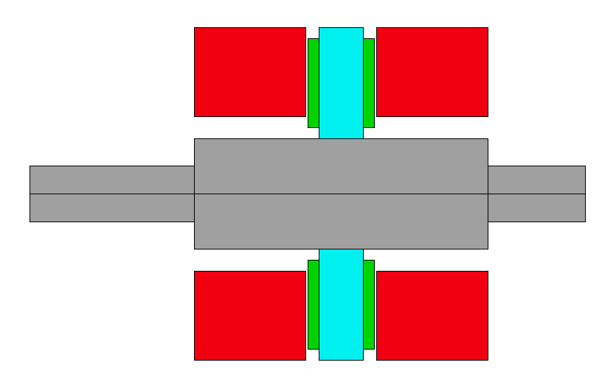

Axial view is also possible, for each of the available typologies.

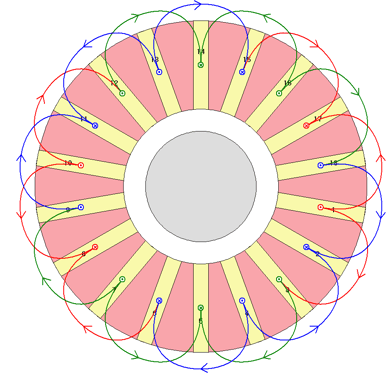

Automatic and custom winding patterns

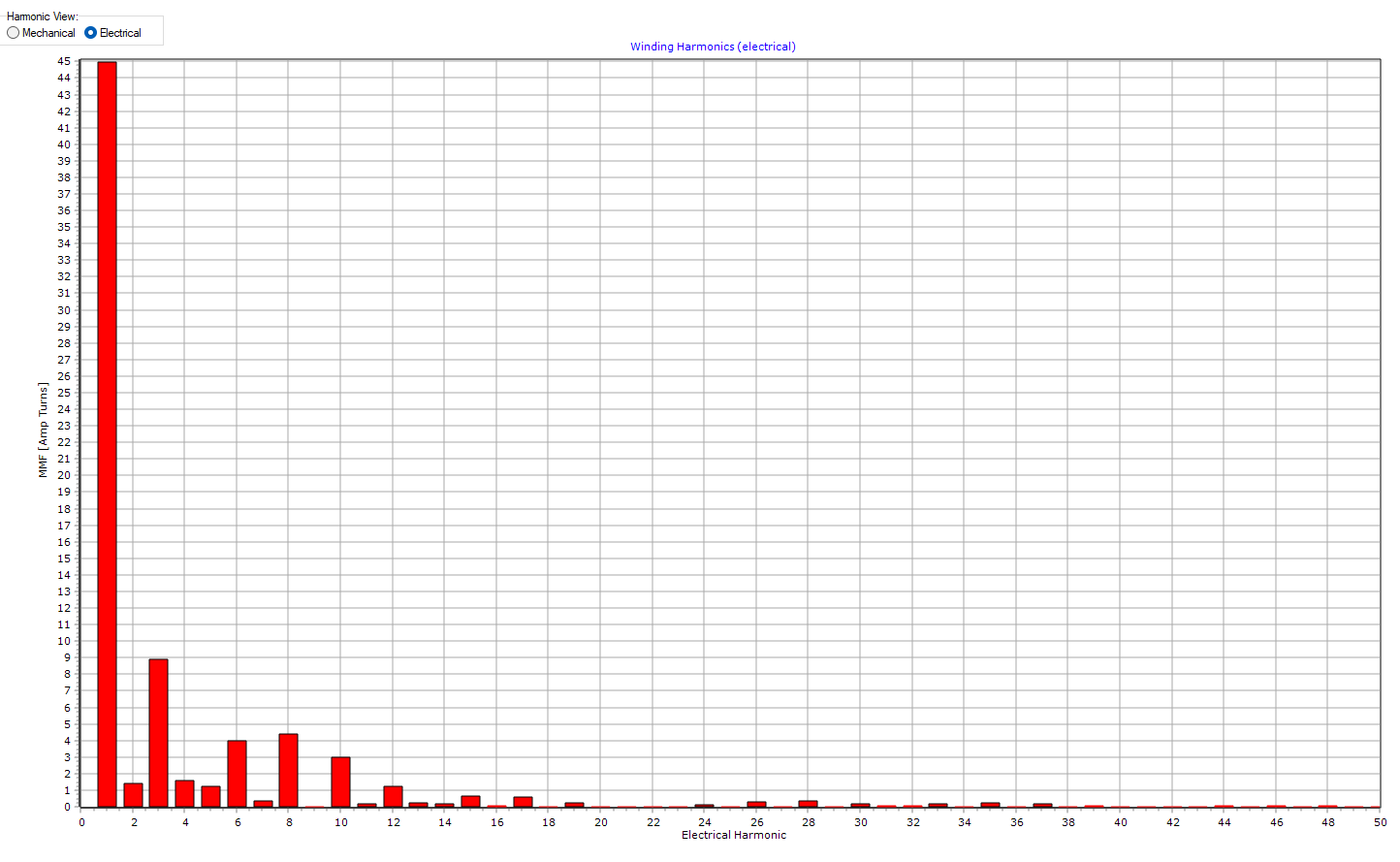

Winding harmonics and factor can also be displayed:
Output data and graphs
Flux density, torque, voltages, inductance and more:

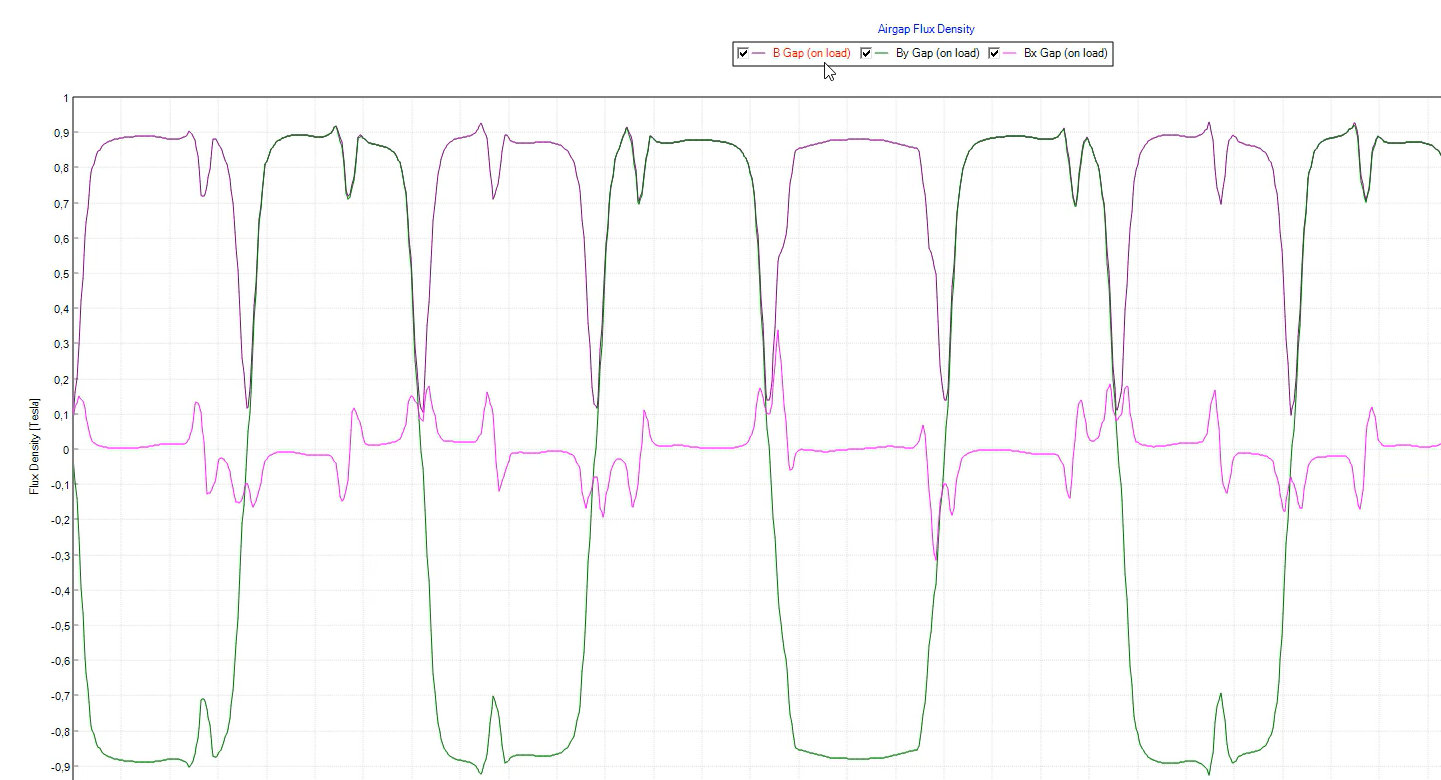

Flux density as a function fo the rotor positioon

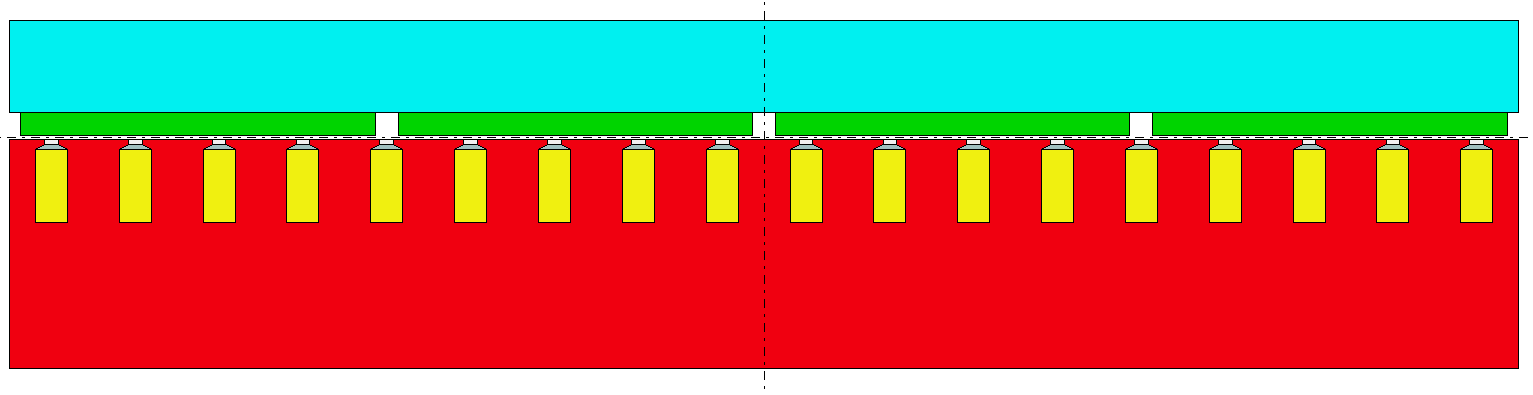

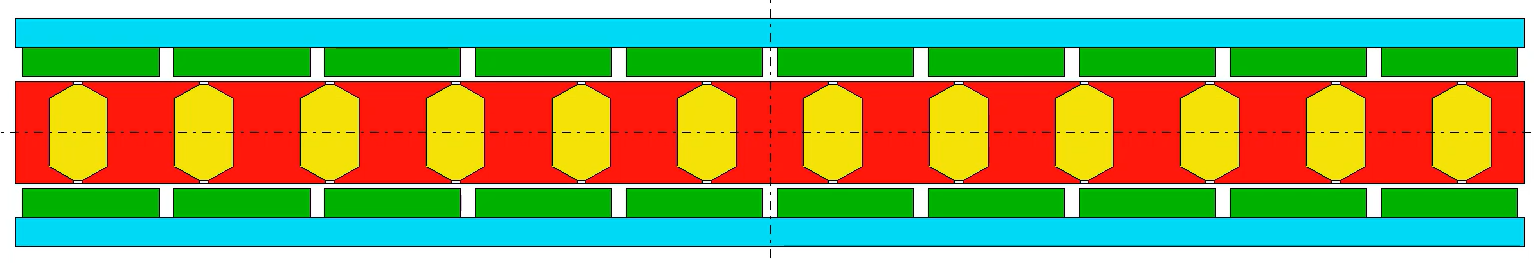

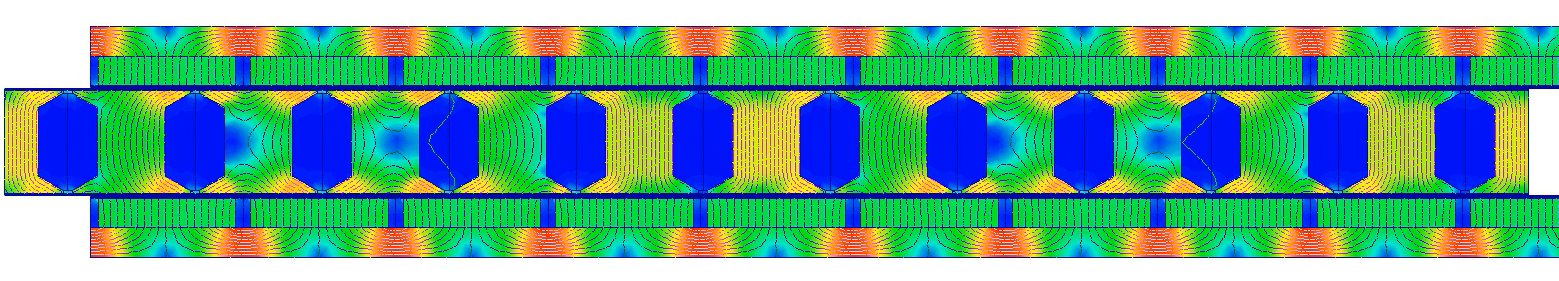

Linear FEA equivalent model:

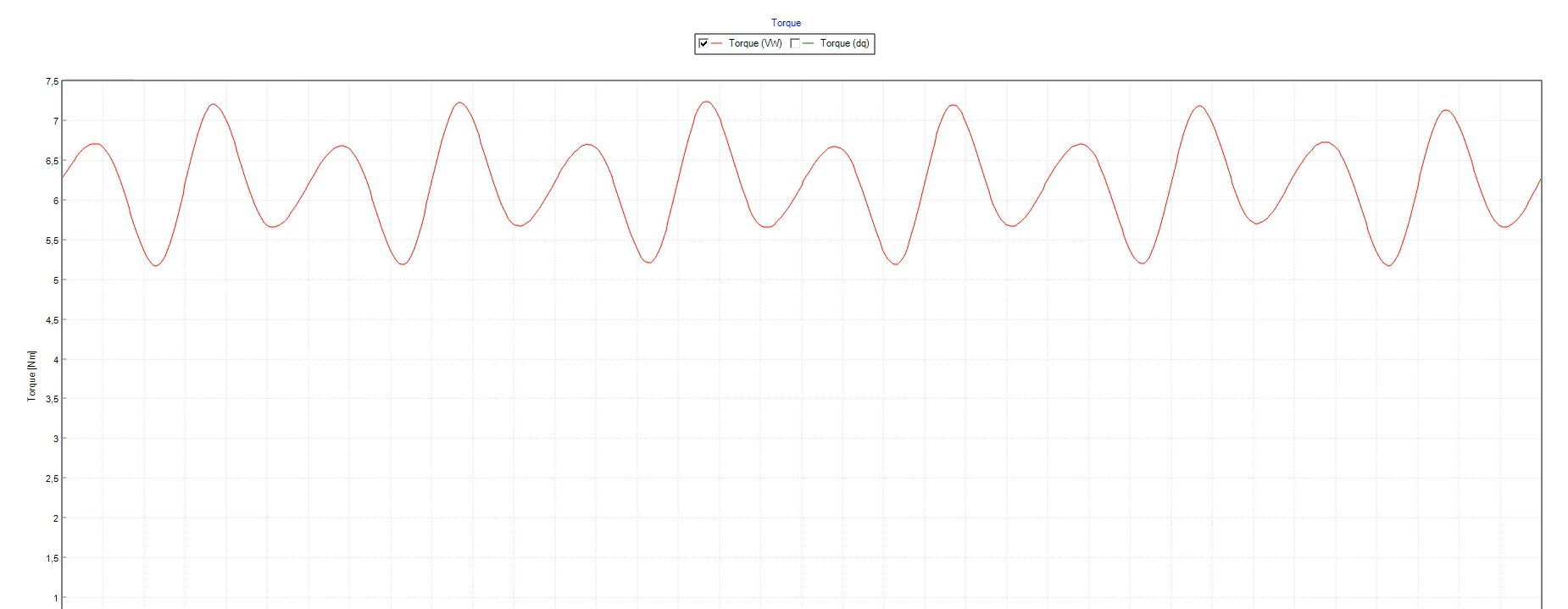

Torque as a function of the rotor position:
