Introduction
In a previous article, we covered different types of Sensitivity Analysis that OptiSLang can perform. In this article, we'll examine the results of those a sensitivity analysis and build a robust metamodel that will serve as the foundation for an optimization process.
This article covers:
- Interpreting sensitivity analysis results
- Understanding metamodels and their importance in optimization
- Building and refining a Model of Optimal Prognosis (MOP)
- Evaluating model quality using Coefficients of Prognosis (CoP)
Understanding Metamodels and MOPs
MOP stands for "Metamodel of Optimal Prognosis," and it's a key concept in efficient design optimization. In essence, a metamodel is a "model of a model"—a simplified mathematical representation that approximates the behavior of a more complex system.
Rather than running full MotorCAD simulations for every design iteration (which would be computationally expensive), we create a surrogate model that can predict outcomes almost instantly. This approach is particularly valuable when dealing with complex engineering systems like electric motors.
Here's how surrogate modeling works:
- Sample the design space using a limited number of full simulations (our sensitivity analysis)
- Based on these samples, construct mathematical functions that approximate the relationship between input parameters and output responses
- Use these approximations to evaluate thousands of potential designs in seconds, rather than the hours or days required for full simulations

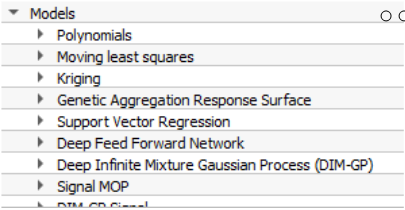

The "Optimal Prognosis" part of MOP refers to OptiSLang's ability to automatically select the best mathematical approach for approximating each response. It might use polynomial regression for one output, radial basis functions for another, and neural networks for a third—all selected to maximize predictive accuracy.
Reviewing Sensitivity Analysis Results
After running our sensitivity analysis, we're presented with a table of results showing multiple designs and their performance characteristics. Looking at the "Feasible" column, you'll notice that the majority of designs show "False" – this is completely normal. The feasible designs are those that meet all the constraints we defined when setting up our sensitivity analysis.
You'll also notice some designs have zeros across all result columns. These are designs that failed during the analysis, likely due to combinations of variables resulting in non-physical or broken geometry. When creating our metamodel, we need to either investigate each failed design to determine the root cause or, more practically, omit when we build our MOP.
Building the Metamodel

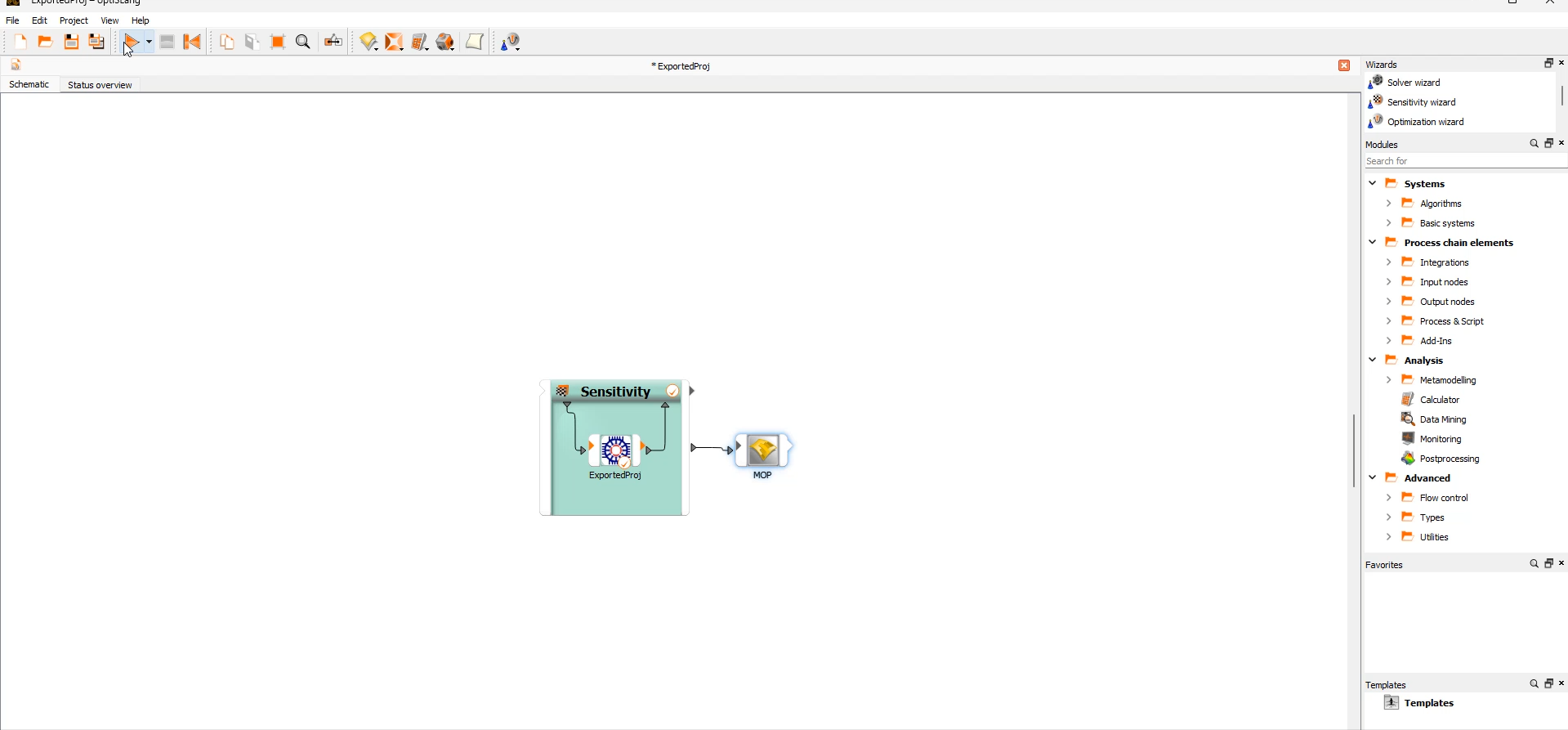

To build our metamodel, we first need to activate the MOP node if it was previously deactivated. This is done by clicking on the MOP node then using the keyboard shortcut Ctrl+E). After reactivation, we run OptiSLang to build the MOP based on our sensitivity analysis data.
Once the MOP is built, we can examine the results by opening the postprocessing window.

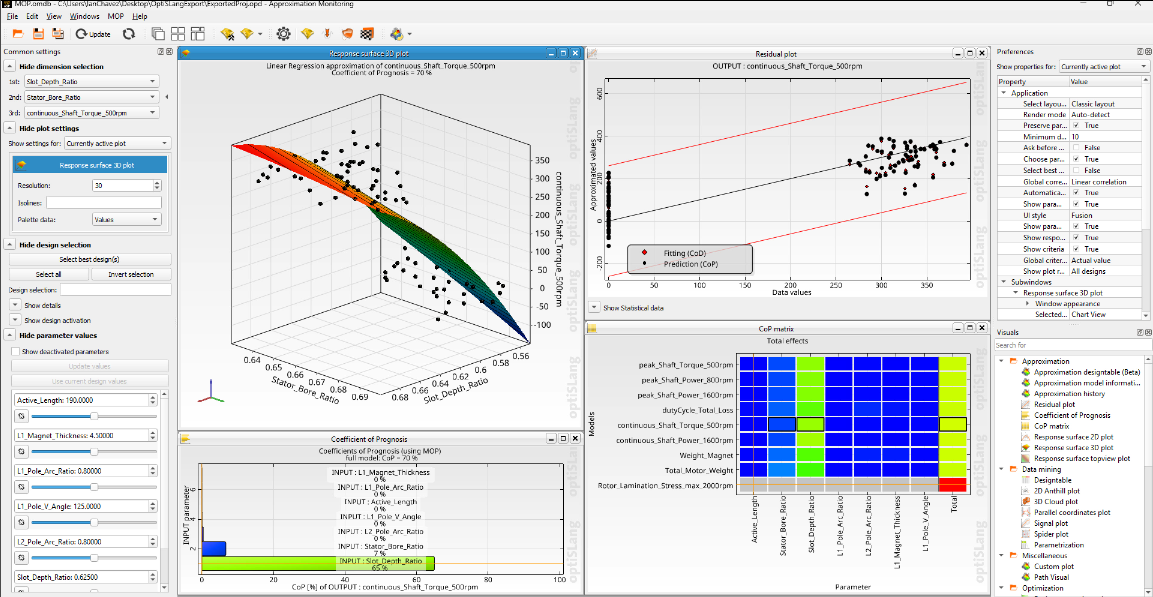

Looking at the response surface and residual plot, we can immediately spot a group of designs that are separated from the others:

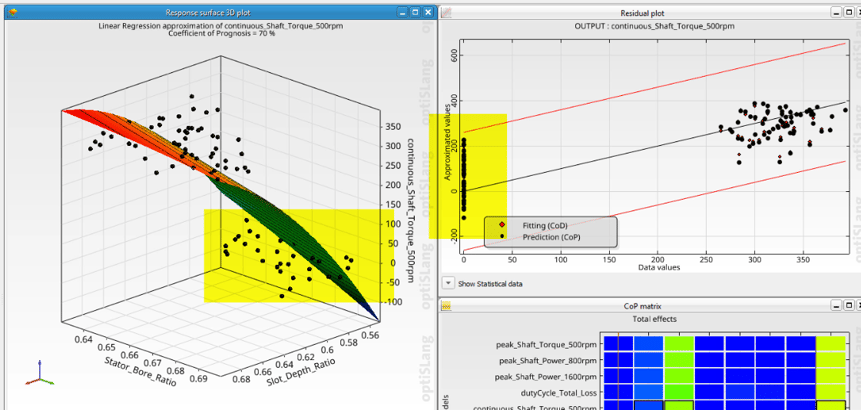

The response surface is plotting torque at 500 rpm on the z-axis, and these outlier designs all show values of zero. In the residual plot, these designs appear all the way on the left side where the "Data Values" on the x-axis is zero—these are clearly our broken designs.
The CoP Matrix: Evaluating Model Quality

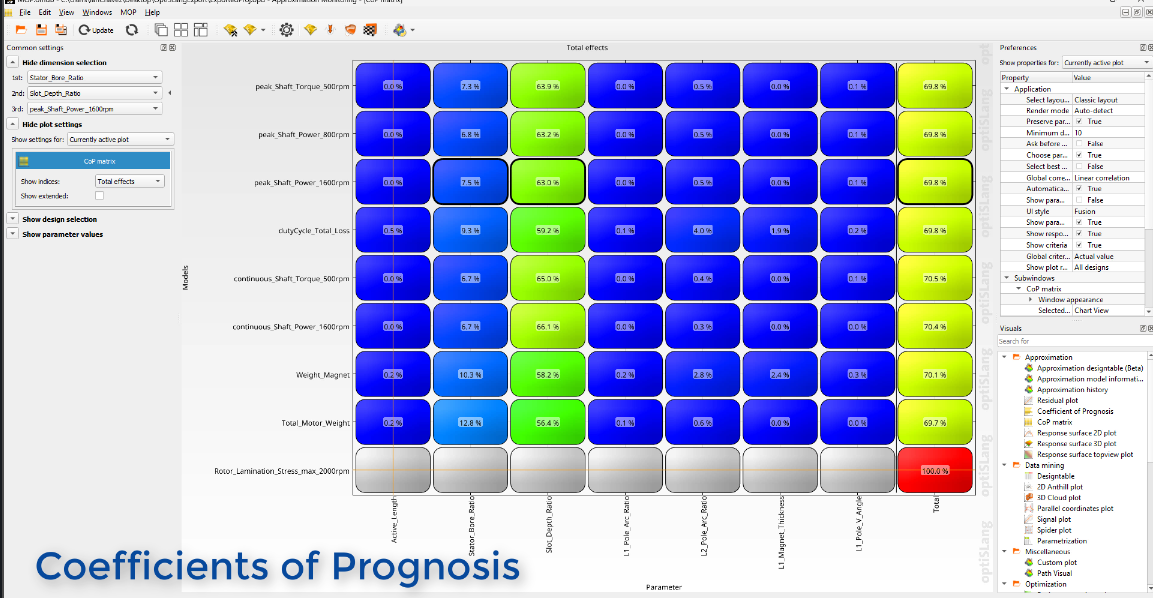

The CoP matrix, or Coefficients of Prognosis matrix, is a powerful tool for measuring the quality of our mathematical model. The right column shows how well each output parameter is predicted by our metamodel. Additionally, the matrix shows the quantitative influence of each input parameter on the variation of our results.
Using the CoP matrix, we can:
- Determine the most important input parameters
- Evaluate the forecast quality of our surrogate models
- Decide whether to proceed with optimization or improve the model with additional sampling
Currently, our CoP values are around 70%, but for a robust optimization, we want these as close to 100% as possible.
Removing Failed Designs to Improve the Model

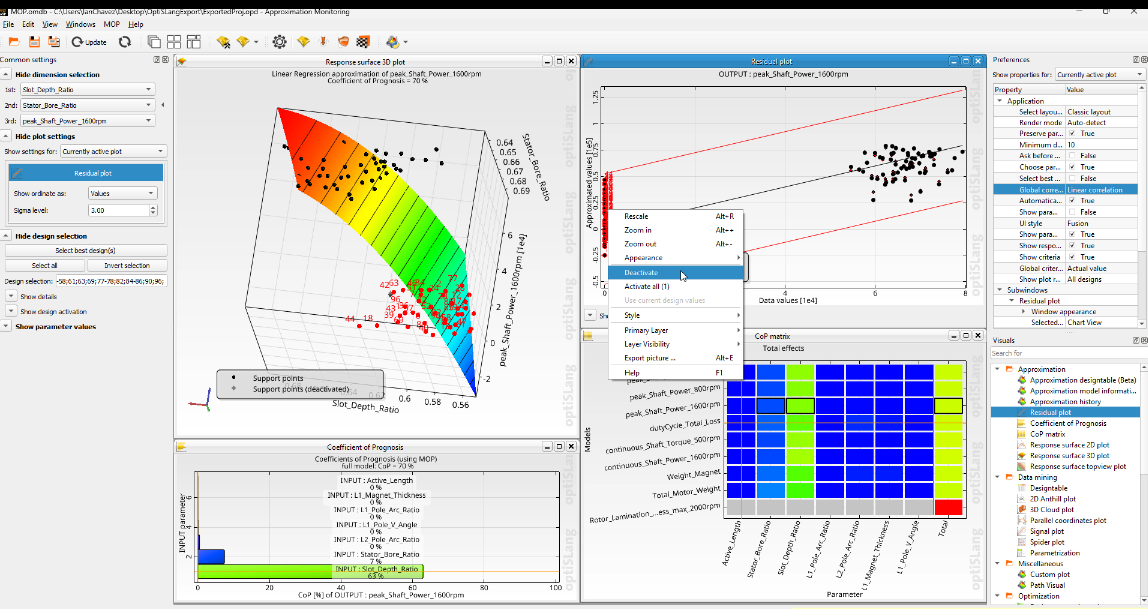

To clean up our metamodel, we need to remove the failed designs that are skewing our results. In the residual plot, we simply drag over the outlying designs to select them all at once, then right-click and select "Deactivate."
Now we rebuild our MOP using only the remaining valid designs by clicking on the "Build MOP" button. Once the model rebuilds, the postprocessing windows refresh with our new data.
Evaluating Our Improved Metamodel

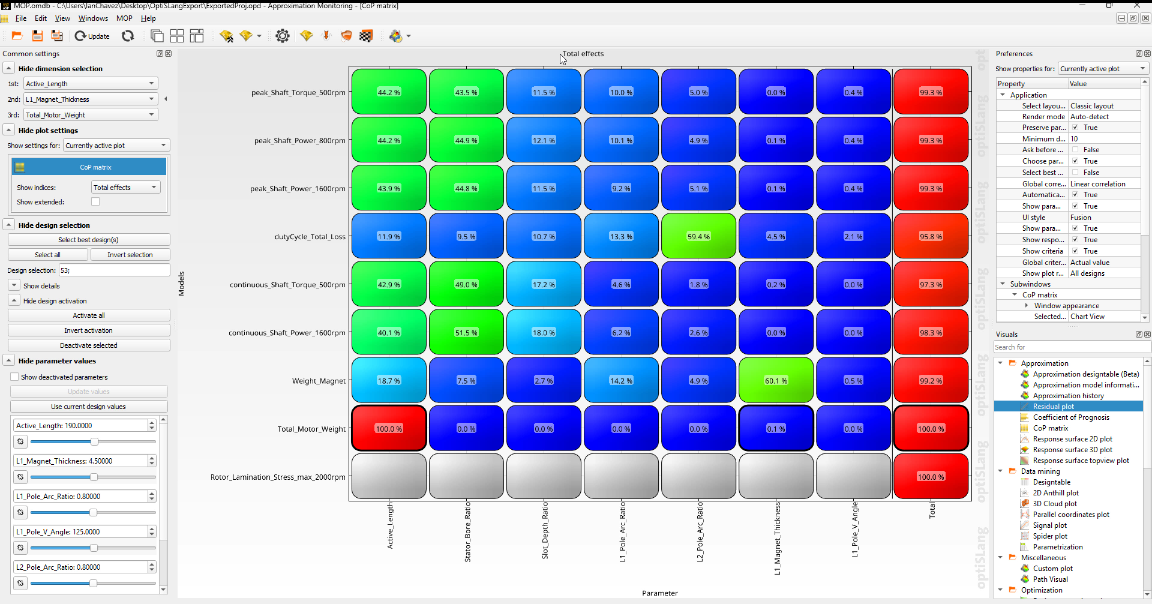

Looking at the updated CoP matrix, we can see dramatic improvement—most values in the right column now show over 99%, with the lowest value at 95.3%.
These high CoP values indicate that our metamodel can accurately predict the performance of our motor across the design space, giving us confidence in the optimization results we'll obtain in the next step.
At this point, we could try to remove additional outliers to further improve our model, but we need to be cautious not to over-estimate the approximation quality. With a larger sample size, this would be less risky, but our current CoP values are more than adequate for optimization.
Leveraging Our Metamodel for Optimization

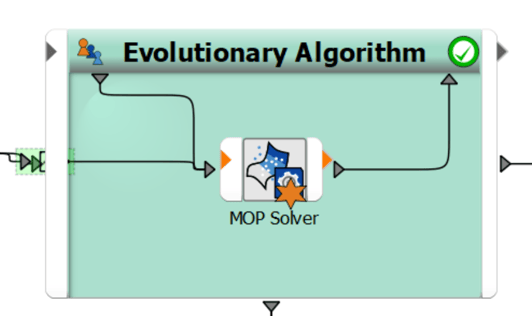

The true power of our MOP becomes apparent in the optimization phase. Once we have a high-quality metamodel, we can connect it to an optimizer that will explore tens of thousands of potential designs without running a single additional MotorCAD simulation.
Because evaluating the metamodel is computationally inexpensive, we can explore far more designs than would ever be feasible with direct simulations. This approach drastically reduces the time required to find optimal designs while also providing valuable insights into design trade-offs.
Conclusion
In this article, we've learned how to build and refine a high-quality metamodel based on sensitivity analysis results. This surrogate model will allow us to efficiently explore our design space without the computational expense of full simulations. For more information, check out the associated video and playlist that covers the full optimization process of a BPM motor.
