Introduction to Gas Turbines and Combustor Design

Gas turbines are widely used across industries for power generation and propulsion, but their efficiency and reliability heavily depend on the performance of the combustor. The combustor, where fuel and air mix to produce energy, plays a pivotal role in determining the operational success of a turbine.

As manufacturers push for higher efficiency and lower emissions, challenges in combustor design and operation become increasingly complex. From ensuring clean combustion to maintaining operational reliability, engineers must navigate a range of constraints to deliver optimal performance. This is where cutting-edge simulation tools like Ansys Fluent prove invaluable.


The Importance of Flame Stability in Combustors

One of the critical challenges in gas turbine operation is achieving and maintaining flame stability within the combustor. Flame stability is essential for efficient energy conversion, reduced emissions, and reliable operation. An unstable flame can lead to operational issues such as lean blowout (LBO)—where the flame extinguishes due to insufficient fuel—or flashback, where the flame propagates upstream and causes potential damage to the system.

Flame stability is particularly challenging because modern combustors are designed to operate at a lean fuel-air ratio to reduce emissions. While this approach is environmentally beneficial, it also increases the risk of instability. For manufacturers, balancing these conflicting priorities is a key challenge that requires both engineering expertise and advanced simulation capabilities.



Challenges in Gas Turbine Combustor Operation

Gas turbine combustor operation is limited by many factors, including:

  • Flame stability
  • Emissions limitations
  • Combustion dynamics

For this article, we’ll focus on flame stability. During most of a combustor's operational life, it runs at a lean fuel-air ratio. The flame can be either attached (anchored to a physical structure) or detached (stabilized by flow swirl or recirculation). As the primary combustion zone becomes leaner, the flame risks losing stability, leading to operability issues like lean blowout (LBO) or flashback. These challenges make it critical for combustor manufacturers to accurately identify the operational range and design components to mitigate these risks.



Engineering Approaches to Control Flame Stability

Addressing flame stability requires careful engineering and innovative solutions. Several approaches are commonly used, including:

  1. Bluff bodies – Structures that create recirculating flow to stabilize the flame.
  2. Swirlers – Devices that impart rotational motion to the flow, enhancing mixing and stabilizing the flame.
  3. Pilot flames – Secondary flames that provide a stable ignition source for the main flame.
  4. Counter fuel flow – Fuel flow adjustments to control flame behavior.
  5. Active fuel-air ratio control – Real-time adjustments to the fuel-air mixture to maintain stability.

While these methods are effective, accurately modeling their behavior in real-world conditions is challenging due to the complex interactions between turbulent flow, chemical kinetics, and heat transfer. This is where Computational Fluid Dynamics (CFD) tools come into play.

How Computational Fluid Dynamics (CFD) Helps

CFD methods offer a physics-based approach to model the intricate, reacting turbulent flow field within combustors. By simulating the combustion process, engineers can predict flame behavior, pressure, temperature, and emissions under various conditions. The insights gained from these simulations allow manufacturers to refine their designs and address flame stability issues proactively.

CFD simulations also enable the analysis of detailed flow, thermal, and chemical kinetics data, which can be leveraged to optimize combustor components for improved performance and reliability.

The Ansys Advantage in Combustor Design

Ansys Fluent is a leading simulation tool for tackling combustor design challenges. Its advanced physics models are industry-validated and provide accurate predictions for complex phenomena such as:

  • Vortex dynamics
  • Mixing dynamics
  • Flame kinematics
  • Chemical kinetics

Modeling the effects of flame stretch rate and heat loss is especially critical for predicting the dynamics of premixed flames. Ansys Fluent excels in capturing these interactions, enabling engineers to achieve stable operation across the full range of engine conditions—even with fuel flexibility.

By offering insights into flame behavior, Ansys Fluent helps manufacturers design combustors that deliver efficient, stable, and environmentally friendly performance.

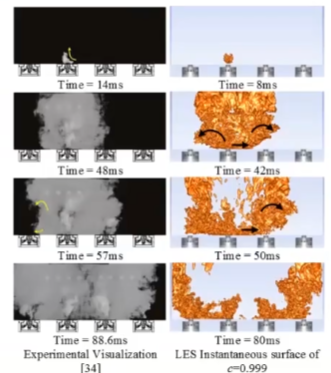

Fig. 1  Qualitative comparison of flame propagation using Fluent

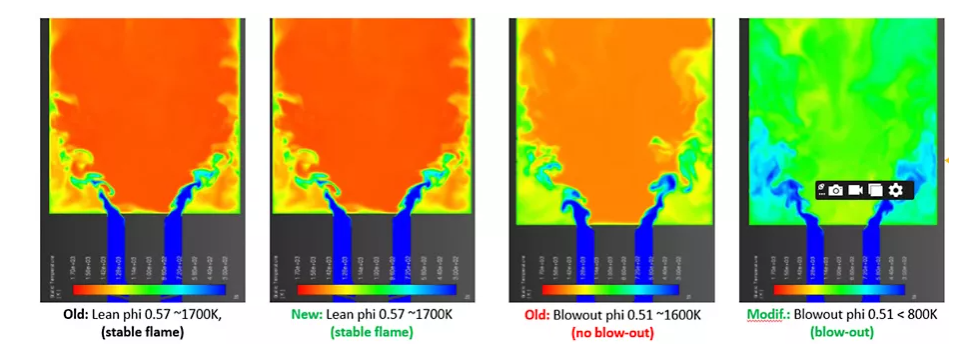

Fig 2. Accurate prediction of lean blowout limit with strained FGM

Conclusion

Flame stability is a critical consideration in gas turbine combustor design. By addressing challenges such as lean blowout and flashback, manufacturers can achieve more reliable and efficient operation. Tools like Ansys Fluent provide the advanced modeling capabilities needed to simulate complex flame dynamics and optimize combustor performance.

Whether you're designing a new combustor or refining an existing one, leveraging Ansys Fluent can help you stay ahead of operational challenges and meet your performance goals.
