SIwave is an effective tool for characterizing PCBs, high speed electronic packages, and IC packages. The software has tools to verify power integrity (PI), electromagnetic interference (EMI) and signal integrity (SI). Different structures on a PCB can be designed, debugged, and optimized using these tools. It is a one-stop shop for PCB RF designers. Users can build any setup in a few minutes using the interface.
SIwizard is a tool for implementing SI. By selecting the RF lines to analyze, assigning ports, assigning signals, and specifying the frequency band, SIwizard will perform the analysis. The SIwizard will then attach the ports to the model, solve for the S-parameters, construct a circuit in the Ansys AEDT circuit, populate the contents, add a transient solver and a quick solver (optional), solve, and display the results. The user can modify the circuit built by SIwizard, add additional components, and/or add Verify Eye solvers.
SIwizard has only one drawback, namely that it comes with four generic signal definitions:

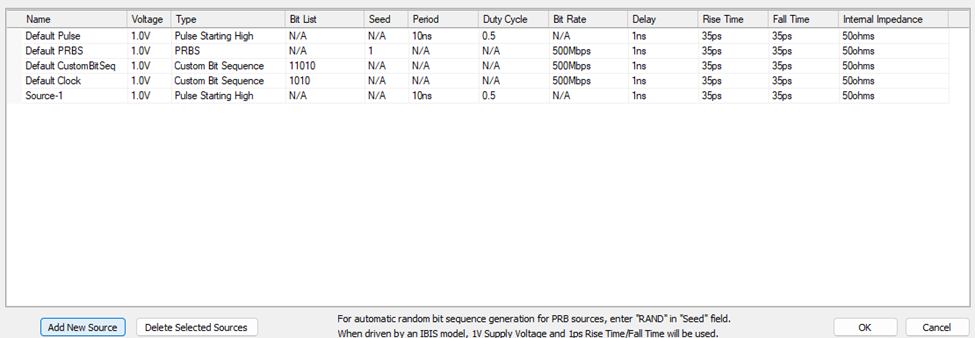

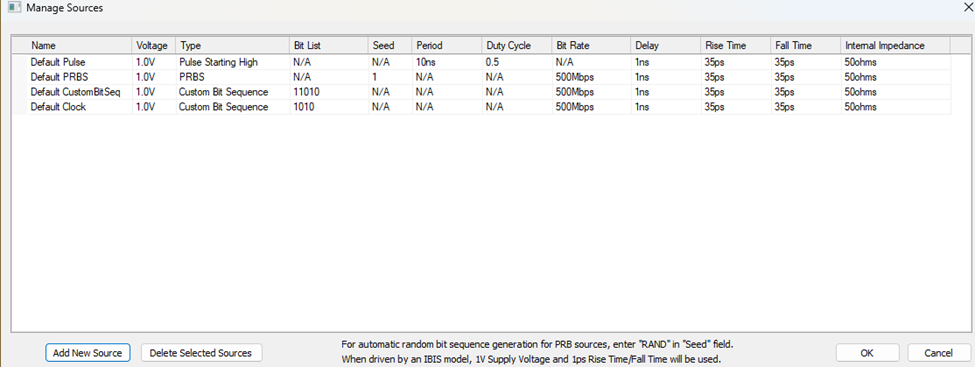

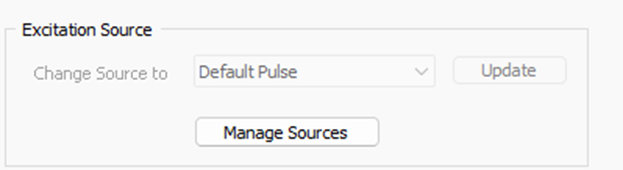

By clicking on Manage sources, users can add more sources:
Add source
Enter the necessary numbers.
It is not convenient to do this. The numbers for all standards are not known to all users. Even if they know them and enter them, they cannot save them for future use.
In order to overcome this problem, Ozen Engineering has developed a library of ready-to-use standards. You may copy-paste the standards you wish to include in the .siw file from the list. Here are the steps to follow.
1- Open SIwave.
2- Import the ECAD file.
3- Save and close the file.
4- Use Notepad to open the .siw file.
5- Look for the "B_TRANSIENT_SOURCES" section.
6- Add the lines from the library below.
7- Open SIwave again, and open the SIwave file.
8- Launch SIwizard: Simulations>SIwizard.
9- Add the lines, and go Next.

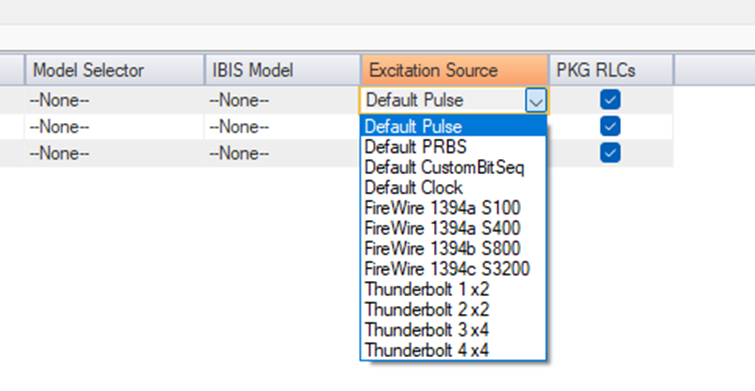

10- In the source section, drop down the menu and select the right standard.
The list:
PCIE, USB, DP, HDMI, MIPI, Ethernet, DDR(DATA, CLK, ADDR), AURORA, SDIO, MCA, ISA, VXI, AXI, AHB, APB, HyperTransport, RapidIO, InfiniBand, SpaceWire, FlexRay, NuBus, VMEbus, RS-485, QSPI, UART, CAMAC, LPC, LIN, I2C, I3C, CAN, CAN-FD, Firewire, Thunderbolt, LVDS, CPI, FSMC, GPMC, SerialLite, JESD204, SpaceFibre, ARINC, NVLink, eMMC, UFS, SpaceWire, Can FD, LIN, TTP, MOST, TileLink, OpenCAPI, NoC,EtherCat, FRPFIBUS,Modbus, I23, SPDIF, MIPI SoundWire, SLVS-EC, cPHY, Medical ISO, MICS, Zigbee, Telecom, SONET, SDH, RISC, DMI, TileLink, and others.
"PCIe1 0.8V 200p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "200ps" "200ps" "50ohms"
"PCIe1 CLK 0.8V 200p" "0.8V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "200ps" "200ps" "50ohms"
"PCIe1 1.2V 200p" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "200ps" "200ps" "50ohms"
"PCIe1 CLK 1.2V 200p" "1.2V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "200ps" "200ps" "50ohms"
"PCIe1 0.8V 250p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "250ps" "250ps" "50ohms"
"PCIe1 CLK 0.8V 250p" "0.8V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "250ps" "250ps" "50ohms"
"PCIe1 1.2V 250p" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "250ps" "250ps" "50ohms"
"PCIe1 CLK 1.2V 250p" "1.2V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "250ps" "250ps" "50ohms"
"PCIe1.1 0.8V 200p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "200ps" "200ps" "50ohms"
"PCIe1.1 CLK 0.8V 200p" "0.8V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "200ps" "200ps" "50ohms"
"PCIe1.1 1.2V 200p" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "200ps" "200ps" "50ohms"
"PCIe1.1 CLK 1.2V 200p" "1.2V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "200ps" "200ps" "50ohms"
"PCIe1.1 0.8V 250p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "250ps" "250ps" "50ohms"
"PCIe1.1 CLK 0.8V 250p" "0.8V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "250ps" "250ps" "50ohms"
"PCIe1.1 1.2V 250p" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "250ps" "250ps" "50ohms"
"PCIe1.1 CLK 1.2V 250p" "1.2V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "250ps" "250ps" "50ohms"
"PCIe2 0.8V 120p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "5000Mbps" "1ns" "120ps" "120ps" "50ohms"
"PCIe2 CLK 0.8V 120p" "0.8V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "120ps" "120ps" "50ohms"
"PCIe2 0.8V 200p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "5000Mbps" "1ns" "200ps" "200ps" "50ohms"
"PCIe2 CLK 0.8V 200p" "0.8V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "200ps" "200ps" "50ohms"
"PCIe2 1.2V 120p" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "5000Mbps" "1ns" "120ps" "120ps" "50ohms"
"PCIe2 CLK 1.2V 120p" "1.2V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "120ps" "120ps" "50ohms"
"PCIe2 1.2V 200p" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "5000Mbps" "1ns" "200ps" "200ps" "50ohms"
"PCIe2 CLK 1.2V 200p" "1.2V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "200ps" "200ps" "50ohms"
"PCIe3 0.8V 85p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "8000Mbps" "1ns" "85ps" "85ps" "50ohms"
"PCIe3 CLK 0.8V 85p" "0.8V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "85ps" "85ps" "50ohms"
"PCIe3 0.8V 120p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "8000Mbps" "1ns" "120ps" "120ps" "50ohms"
"PCIe3 CLK 0.8V 120" "0.8V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "200Mbps" "1ns" "120ps" "120ps" "50ohms"
"PCIe4_0.8V 50p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "16000Mbps" "1ns" "50ps" "50ps" "50ohms"
"PCIe4 CLK 0.8V 50p" "0.8V" "Custom Bit Sequence" "1010" "N?A" "N/A" "N/A" "200Mbps" "1ns" "50ps" "50ps" "50ohms"
"PCIe4_0.8V 85p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "16000Mbps" "1ns" "85ps" "85ps" "50ohms"
"PCIe4 CLK 0.8V 85p" "0.8V" "Custom Bit Sequence" "1010" "N?A" "N/A" "N/A" "200Mbps" "1ns" "85ps" "85ps" "50ohms"
"PCIe5 0.8V 30p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "32000Mbps" "1ns" "30ps" "30ps" "50ohms"
"PCIe5 CLK 0.8V 30p" "0.8V" "Custom Bit Sequence" "1010" "N?A" "N/A" "N/A" "200Mbps" "1ns" "30ps" "30ps" "50ohms"
"PCIe5 0.8V 50p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "32000Mbps" "1ns" "50ps" "50ps" "50ohms"
"PCIe5 CLK 0.8V 50p" "0.8V" "Custom Bit Sequence" "1010" "N?A" "N/A" "N/A" "200Mbps" "1ns" "50ps" "50ps" "50ohms"
"PCIe6 0.4V 10p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "64000Mbps" "1ns" "10ps" "10ps" "50ohms"
"PCIe6 CLK 0.4V 10p" "0.4V" "PCustom Bit Sequence" "1010" "N?A" "N/A" "N/A" "200Mbps" "1ns" "10ps" "10ps" "50ohms"
"PCIe6 0.4V 30p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "64000Mbps" "1ns" "30ps" "30ps" "50ohms"
"PCIe6 CLK 0.4V 30p" "0.4V" "PCustom Bit Sequence" "1010" "N?A" "N/A" "N/A" "200Mbps" "1ns" "30ps" "30ps" "50ohms"
"PCIe7 0.4V" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "128000Mbps" "1ns" "6.5ps" "6.5ps" "50ohms"
"PCIe7 CLK 0.4V" "0.4V" "Custom Bit Sequence" "1010" "N?A" "N/A" "N/A" "200Mbps" "1ns" "6.5ps" "6.5ps" "50ohms"
"USB 1.0 50n" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "1.5Mbps" "1ns" "50ns" "50ns" "50ohms"
"USB 1.0 100n" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "1.5Mbps" "1ns" "100ns" "100ns" "50ohms"
"USB 1.1 5ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "12Mbps" "1ns" "5ns" "5ns" "50ohms"
"USB 1.1 20ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "12Mbps" "1ns" "20ns" "20ns" "50ohms"
"USB 2.0 0.4V 500p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "480Mbps" "1ns" "500ps" "500ps" "50ohms"
"USB 2.0 0.4V 1.5ns" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "480Mbps" "1ns" "1500ps" "1500ps" "50ohms"
"USB 2.0 0.6V 500p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "480Mbps" "1ns" "500ps" "500ps" "50ohms"
"USB 2.0 0.6V 1.5n" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "480Mbps" "1ns" "1500ps" "1500ps" "50ohms"
"USB 3.0 35p" "0.8" "PRBS" "N/A" "1" "N/A" "N/A" "5000Mbps" "1ns" "35ps" "35ps" "50ohms"
"USB 3.0 50p" "0.8" "PRBS" "N/A" "1" "N/A" "N/A" "5000Mbps" "1ns" "50ps" "50ps" "50ohms"
"USB 3.1 Gen1 35p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "5000Mbps" "1ns" "35ps" "35ps" "50ohms"
"USB 3.1 Gen1 50p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "5000Mbps" "1ns" "50ps" "50ps" "50ohms"
"USB 3.1 Gen2 20p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "10000Mbps" "1ns" "20ps" "20ps" "50ohms"
"USB 3.1 Gen2 35p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "10000Mbps" "1ns" "35ps" "35ps" "50ohms"
"USB 3.2 Gen2 15p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "20000Mbps" "1ns" "15ps" "15ps" "50ohms"
"USB 3.2 Gen2 30p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "20000Mbps" "1ns" "30ps" "30ps" "50ohms"
"USB 4 Gen3 0.6V 10p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "40000Mbps" "1ns" "10ps" "10ps" "50ohms"
"USB 4 Gen3 0.6V 20p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "40000Mbps" "1ns" "20ps" "20ps" "50ohms"
"USB 4 Gen3 0.9V 10p" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "40000Mbps" "1ns" "10ps" "10ps" "50ohms"
"USB 4 Gen3 0.9V 20p" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "40000Mbps" "1ns" "20ps" "20ps" "50ohms"
"USB v2.0 0.5V 5p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "80000Mbps" "1ns" "5ps" "5ps" "50ohms"
"USB v2.0 0.5V 15p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "80000Mbps" "1ns" "15ps" "15ps" "50ohms"
"USB v2.0 0.7V 5p" "0.7V" "PRBS" "N/A" "1" "N/A" "N/A" "80000Mbps" "1ns" "5ps" "5ps" "50ohms"
"USB v2.0 0.7V 15p" "0.7V" "PRBS" "N/A" "1" "N/A" "N/A" "80000Mbps" "1ns" "15ps" "15ps" "50ohms"
"DisplayPort 1.1a 400mV" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "2700Mbps" "1ns" "50ps" "50ps" "50ohms"
"DisplayPort 1.1a 400mV" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "2700Mbps" "1ns" "160ps" "160ps" "50ohms"
"DisplayPort 1.1a 600mV" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "2700Mbps" "1ns" "50ps" "50ps" "50ohms"
"DisplayPort 1.1a 600mV" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "2700Mbps" "1ns" "160ps" "160ps" "50ohms"
"DisplayPort 1.2a 600mV" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "5400Mbps" "1ns" "50ps" "50ps" "50ohms"
"DisplayPort 1.2a 600mV" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "5400Mbps" "1ns" "160ps" "160ps" "50ohms"
"DisplayPort 1.2a 800mV" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "5400Mbps" "1ns" "50ps" "50ps" "50ohms"
"DisplayPort 1.2a 800mV" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "5400Mbps" "1ns" "160ps" "160ps" "50ohms"
"DisplayPort 1.4 200mV 50p" "0.2V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "50ps" "50ps" "50ohms"
"DisplayPort 1.4 400mV 50p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "50ps" "50ps" "50ohms"
"DisplayPort 1.4 600mV 50p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "50ps" "50ps" "50ohms"
"DisplayPort 1.4 800mV 50p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "50ps" "50ps" "50ohms"
"DisplayPort 1.4 200mV 90p" "0.2V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "90ps" "90ps" "50ohms"
"DisplayPort 1.4 400mV 90p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "90ps" "90ps" "50ohms"
"DisplayPort 1.4 600mV 90p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "90ps" "90ps" "50ohms"
"DisplayPort 1.4 800mV 90p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "90ps" "90ps" "50ohms"
"DisplayPort 1.4 200mV 120p" "0.2V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "120ps" "120ps" "50ohms"
"DisplayPort 1.4 400mV 120p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "120ps" "120ps" "50ohms"
"DisplayPort 1.4 600mV 120p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "120ps" "120ps" "50ohms"
"DisplayPort 1.4 800mV 120p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "120ps" "120ps" "50ohms"
"DisplayPort 1.4 200mV 160p" "0.2V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "160ps" "160ps" "50ohms"
"DisplayPort 1.4 400mV 160p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "160ps" "160ps" "50ohms"
"DisplayPort 1.4 600mV 160p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "160ps" "160ps" "50ohms"
"DisplayPort 1.4 800mV 160p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "8100Mbps" "1ns" "160ps" "160ps" "50ohms"
"DisplayPort 2.0 600mV UHBR10 30p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "9700Mbps" "1ns" "30ps" "30ps" "50ohms"
"DisplayPort 2.0 600mV UHBR10 60p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "9700Mbps" "1ns" "60ps" "60ps" "50ohms"
"DisplayPort 2.0 900mV UHBR10 30p" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "9700Mbps" "1ns" "30ps" "30ps" "50ohms"
"DisplayPort 2.0 900mV UHBR10 60p" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "9700Mbps" "1ns" "60ps" "60ps" "50ohms"
"DisplayPort 2.1 600mV UHBR13.5 30p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "13100Mbps" "1ns" "30ps" "30ps" "50ohms"
"DisplayPort 2.1 600mV UHBR13.5 60p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "13100Mbps" "1ns" "60ps" "60ps" "50ohms"
"DisplayPort 2.1 900mV UHBR13.5 30p" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "13100Mbps" "1ns" "30ps" "30ps" "50ohms"
"DisplayPort 2.1 900mV UHBR13.5 60p" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "13100Mbps" "1ns" "60ps" "60ps" "50ohms"
"DisplayPort 2.1a 600mV UHBR20 30p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "19700Mbps" "1ns" "30ps" "30ps" "50ohms"
"DisplayPort 2.1a 600mV UHBR20 60p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "19700Mbps" "1ns" "60ps" "60ps" "50ohms"
"DisplayPort 2.1a 900mV UHBR20 30p" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "19700Mbps" "1ns" "30ps" "30ps" "50ohms"
"DisplayPort 2.1a 900mV UHBR20 60p" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "19700Mbps" "1ns" "60ps" "60ps" "50ohms"
"HDMI 1.0 0.5V 100p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "4950Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.0 0.5V 125p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "4950Mbps" "1ns" "125ps" "125ps" "50ohms"
"HDMI 1.0 1.0V 100p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "4950Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.0 1.0V 125p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "4950Mbps" "1ns" "125ps" "125ps" "50ohms"
"HDMI 1.0 CLK 0.5V 100p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "330Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.0 CLK 0.5V 125p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "330Mbps" "1ns" "125ps" "125ps" "50ohms"
"HDMI 1.0 CLK 1.0V 100p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "330Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.0 CLK 1.0V 125p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "330Mbps" "1ns" "125ps" "125ps" "50ohms"
"HDMI 1.1 0.5V 100p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "4950Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.1 0.5V 125p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "4950Mbps" "1ns" "125ps" "125ps" "50ohms"
"HDMI 1.1 1.0V 100p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "4950Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.1 1.0V 125p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "4950Mbps" "1ns" "125ps" "125ps" "50ohms"
"HDMI 1.1 CLK 0.5V 100p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "330Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.1 CLK 0.5V 125p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "330Mbps" "1ns" "125ps" "125ps" "50ohms"
"HDMI 1.1 CLK 1.0V 100p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "330Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.1 CLK 1.0V 125p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "330Mbps" "1ns" "125ps" "125ps" "50ohms"
"HDMI 1.2 0.5V 100p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "4950Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.2 0.5V 125p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "4950Mbps" "1ns" "125ps" "125ps" "50ohms"
"HDMI 1.2 1.0V 100p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "4950Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.2 1.0V 125p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "4950Mbps" "1ns" "125ps" "125ps" "50ohms"
"HDMI 1.2 CLK 0.5V 100p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "330Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.2 CLK 0.5V 125p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "330Mbps" "1ns" "125ps" "125ps" "50ohms"
"HDMI 1.2 CLK 1,0V 100p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "330Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.2 CLK 1.0V 125p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "330Mbps" "1ns" "125ps" "125ps" "50ohms"
"HDMI 1.3 0.5V" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "10200Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.3 1.0V" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "10200Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.3 CLK 0.5V" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "680Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.3 CLK 1.0V" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "680Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.4 0.5V" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "10200Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.4 1.0V" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "10200Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.4 CLK 0.5V" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "680Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 1.4 CLK 1.0V" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "680Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.0 0.5V 75p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.0 0.5V 100p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.0 1.0V 75p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.0 1.0V 100p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.0 CLK 0.5V 75p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.0 CLK 0.5V 100p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.0 CLK 1.0V 75p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.0 CLK 1.0V 100p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.0a 0.5V 75p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.0a 0.5V 100p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.0a 1.0V 75p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.0a 1.0V 100p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.0a CLK 0.5V 75p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.0a CLK 0.5V 100p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.0a CLK 1.0V 75p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.0a CLK 1.0V 100p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.0b 0.5V 75p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.0b 0.5V 100p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.0b 1.0V 75p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.0b 1.0V 100p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.0b CLK 0.5V 75p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.0b CLK 0.5V 100p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.0b CLK 1.0V 75p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.0b CLK 1.0V 100p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.1 TMDS 0.5V 75p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.1 TMDS 0.5V 100p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.1 TMDS 1.0V 75p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.1 TMDS 1.0V 100p" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "18000Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.1 TMDS CLK 0.5V 75p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.1 TMDS CLK 0.5V 100p" "0.5V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.1 TMDS CLK 1.0V 75p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "75ps" "75ps" "50ohms"
"HDMI 2.1 TMDS CLK 1.0V 100p" "1.0V" "Custom Bit Sequence" "1010" "N/A" "N/A" "N/A" "1200Mbps" "1ns" "100ps" "100ps" "50ohms"
"HDMI 2.1 FRL 0.8V 50ps" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "48000Mbps" "1ns" "50ps" "50ps" "50ohms"
"HDMI 2.1 FRL 0.8V 100ps" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "48000Mbps" "1ns" "100ps" "100ps" "50ohms"
"D-PHY v1.0 HS 0.2V 150p" "0.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1500Mbps" "1ns" "150ps" "150ps" "50ohms"
"D-PHY v1.0 HS 0.2V 300p" "0.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1500Mbps" "1ns" "300ps" "300ps" "50ohms"
"D-PHY v1.0 HS 0.4V 150p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "1500Mbps" "1ns" "150ps" "150ps" "50ohms"
"D-PHY v1.0 HS 0.4V 300p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "1500Mbps" "1ns" "300ps" "300ps" "50ohms"
"D-PHY v1.0 LS 1.2V" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1500Mbps" "1ns" "150ps" "150ps" "50ohms"
"D-PHY v1.2 HS 0.2V 150p" "0.2V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "150ps" "150ps" "50ohms"
"D-PHY v1.2 HS 0.2V 250p" "0.2V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "250ps" "250ps" "50ohms"
"D-PHY v1.2 HS 0.4V 150p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "150ps" "150ps" "50ohms"
"D-PHY v1.2 HS 0.4V 250p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "250ps" "250ps" "50ohms"
"D-PHY v2.0 0.4V 100p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "4500Mbps" "1ns" "100ps" "100ps" "50ohms"
"D-PHY v2.0 0.4V 200p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "4500Mbps" "1ns" "200ps" "200ps" "50ohms"
"D-PHY v3.5 0.4V 80p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "6000Mbps" "1ns" "80ps" "80ps" "50ohms"
"D-PHY v3.5 0.4V 150p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "6000Mbps" "1ns" "150ps" "150ps" "50ohms"
"C-PHY v1.0 0.2V 100p" "0.2V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "100ps" "100ps" "50ohms"
"C-PHY v1.0 0.2V 200p" "0.2V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "200ps" "200ps" "50ohms"
"C-PHY v1.0 0.4V 100p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "100ps" "100ps" "50ohms"
"C-PHY v1.0 0.4V 200p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "200ps" "200ps" "50ohms"
"C-PHY v1.2 0.3V 80p" "0.3V" "PRBS" "N/A" "1" "N/A" "N/A" "3500Mbps" "1ns" "80ps" "80ps" "50ohms"
"C-PHY v1.2 0.3V 150p" "0.3V" "PRBS" "N/A" "1" "N/A" "N/A" "3500Mbps" "1ns" "150ps" "150ps" "50ohms"
"C-PHY v1.2 0.5V 80p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "3500Mbps" "1ns" "80ps" "80ps" "50ohms"
"C-PHY v1.2 0.5V 150p" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "3500Mbps" "1ns" "150ps" "150ps" "50ohms"
"M-PHY Gear1 0.4V 100p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "1250Mbps" "1ns" "100ps" "100ps" "50ohms"
"M-PHY Gear1 0.4V 200p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "1250Mbps" "1ns" "200ps" "200ps" "50ohms"
"M-PHY Gear1 0.6V 100p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "1250Mbps" "1ns" "100ps" "100ps" "50ohms"
"M-PHY Gear1 0.6V 200p" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "1250Mbps" "1ns" "200ps" "200ps" "50ohms"
"M-PHY Gear4 0.2V 30p" "0.2V" "PRBS" "N/A" "1" "N/A" "N/A" "11600Mbps" "1ns" "30ps" "30ps" "50ohms"
"M-PHY Gear4 0.2V 60p" "0.2V" "PRBS" "N/A" "1" "N/A" "N/A" "11600Mbps" "1ns" "60ps" "60ps" "50ohms"
"M-PHY Gear4 0.4V 30p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "11600Mbps" "1ns" "30ps" "30ps" "50ohms"
"M-PHY Gear4 0.4V 60p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "11600Mbps" "1ns" "60ps" "60ps" "50ohms"
"10Base-T" "2.5V" "PRBS" "N/A" "1" "N/A" "N/A" "10Mbps" "1ns" "25ns" "25ns" "50ohms"
"100Base-T 1V 5n" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "125Mbps" "1ns" "5ns" "5ns" "50ohms"
"100Base-T 1V 10n" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "125Mbps" "1ns" "10ns" "10ns" "50ohms"
"100Base-T 2V 5n" "2.0V" "PRBS" "N/A" "1" "N/A" "N/A" "125Mbps" "1ns" "5ns" "5ns" "50ohms"
"100Base-T 2V 10n" "2.0V" "PRBS" "N/A" "1" "N/A" "N/A" "125Mbps" "1ns" "10ns" "10ns" "50ohms"
"1000Base-T 1V 1.5n" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "1250Mbps" "1ns" "1.5ns" "1.5ns" "50ohms"
"1000Base-T 1V 2n" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "1250Mbps" "1ns" "2ns" "2ns" "50ohms"
"2.5GBase-T 1V 0.8n" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "0.8ns" "0.8ns" "50ohms"
"2.5GBase-T 1V 1n" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "1ns" "1ns" "50ohms"
"5GBase-T 1V 0.6n" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "5000Mbps" "1ns" "0.6ns" "0.6ns" "50ohms"
"5GBase-T 1V 0.8n" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "5000Mbps" "1ns" "0.8ns" "0.8ns" "50ohms"
"10GBase-T 1V 0.4n" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "10000Mbps" "1ns" "0.4ns" "0.4ns" "50ohms"
"10GBase-T 1V 0.6n" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "10000Mbps" "1ns" "0.6ns" "0.6ns" "50ohms"
"25GBase-CR 0.8V 30p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "25781.25Mbps" "1ns" "30ps" "30ps" "50ohms"
"25GBase-CR 0.8V 50p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "25781.25Mbps" "1ns" "50ps" "50ps" "50ohms"
"25GBase-SR 0.8V 30p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "25781.25Mbps" "1ns" "30ps" "30ps" "50ohms"
"25GBase-SR 0.8V 50p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "25781.25Mbps" "1ns" "50ps" "50ps" "50ohms"
"50GBase-CR 0.4V 15p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "26562.5Mbps" "1ns" "15ps" "15ps" "50ohms"
"50GBase-CR 0.4V 30p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "26562.5Mbps" "1ns" "30ps" "30ps" "50ohms"
"50GBase-SR 0.4V 15p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "26562.5Mbps" "1ns" "15ps" "15ps" "50ohms"
"50GBase-SR 0.4V 30p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "26562.5Mbps" "1ns" "30ps" "30ps" "50ohms"
"100GBase-CR 0.8V 20p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "26562.5Mbps" "1ns" "20ps" "20ps" "50ohms"
"100GBase-CR 0.8V 40p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "26562.5Mbps" "1ns" "40ps" "40ps" "50ohms"
"100GBase-SR 0.8V 20p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "26562.5Mbps" "1ns" "20ps" "20ps" "50ohms"
"100GBase-SR 0.8V 40p" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "26562.5Mbps" "1ns" "40ps" "40ps" "50ohms"
"100GBase-CR 0.4V 20p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "25781.5Mbps" "1ns" "20ps" "20ps" "50ohms"
"100GBase-CR 0.4V 40p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "25781.5Mbps" "1ns" "40ps" "40ps" "50ohms"
"100GBase-SR 0.4V 20p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "25781.5Mbps" "1ns" "20ps" "20ps" "50ohms"
"100GBase-SR 0.4V 40p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "25781.5Mbps" "1ns" "40ps" "40ps" "50ohms"
"400GBase 0.4V 10p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "53125Mbps" "1ns" "10ps" "10ps" "50ohms"
"400GBase 0.4V 20p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "53125Mbps" "1ns" "20ps" "20ps" "50ohms"
"800GBase 0.4V 8p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "106250Mbps" "1ns" "8ps" "8ps" "50ohms"
"800GBase 0.4V 15p" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "106250Mbps" "1ns" "15ps" "15ps" "50ohms"
"DDR1 100" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "106250Mbps" "1ns" "15ps" "15ps" "50ohms"
"DDR2 400" "0.4V" "PRBS" "N/A" "1" "N/A" "N/A" "425Mbps" "1ns" "20ps" "20ps" "50ohms"
"DDR3 800" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "250ps" "250ps" "50ohms"
"DDR3 CLK 800" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "800Mbps" "1ns" "250ps" "250ps" "50ohms"
"DDR3 ADDR 800" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "400Mbps" "1ns" "250ps" "250ps" "50ohms"
"DDR3 1066" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "200ps" "200ps" "50ohms"
"DDR3 CLK 1066" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1066Mbps" "1ns" "200ps" "200ps" "50ohms"
"DDR3 ADDR 1066" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "533Mbps" "1ns" "200ps" "200ps" "50ohms"
"DDR3 1333" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1333Mbps" "1ns" "175ps" "175ps" "50ohms"
"DDR3 CLK 1333" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1333Mbps" "1ns" "175ps" "175ps" "50ohms"
"DDR3 ADDR 1333" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "667Mbps" "1ns" "175ps" "175ps" "50ohms"
"DDR3 1600" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "125ps" "125ps" "50ohms"
"DDR3 CLK 1600" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1600Mbps" "1ns" "125ps" "125ps" "50ohms"
"DDR3 ADDR 1600" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "125ps" "125ps" "50ohms"
"DDR3 1866" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1866Mbps" "1ns" "110ps" "110ps" "50ohms"
"DDR3 CLK 1866" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1866Mbps" "1ns" "110ps" "110ps" "50ohms"
"DDR3 ADDR 1866" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "933Mbps" "1ns" "110ps" "110ps" "50ohms"
"DDR3 2133" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "2133Mbps" "1ns" "100ps" "100ps" "50ohms"
"DDR3 CLK 2133" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2133Mbps" "1ns" "100ps" "100ps" "50ohms"
"DDR3 ADDR 2133" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "100ps" "100ps" "50ohms"
"DDR4 1600" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "85ps" "85ps" "50ohms"
"DDR4 CLK 1600" "1.2V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1600Mbps" "1ns" "85ps" "85ps" "50ohms"
"DDR4 ADDR 1600" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "85ps" "85ps" "50ohms"
"DDR4 1866" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1866Mbps" "1ns" "75ps" "75ps" "50ohms"
"DDR4 CLK 1866" "1.2V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1866Mbps" "1ns" "75ps" "75ps" "50ohms"
"DDR4 ADDR 1866" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "933Mbps" "1ns" "75ps" "75ps" "50ohms"
"DDR4 2133" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "2133Mbps" "1ns" "65ps" "65ps" "50ohms"
"DDR4 CLK 2133" "1.2V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2133Mbps" "1ns" "65ps" "65ps" "50ohms"
"DDR4 ADDR 2133" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "65ps" "65ps" "50ohms"
"DDR4 2400" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "2400Mbps" "1ns" "60ps" "60ps" "50ohms"
"DDR4 CLK 2400" "1.2V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2400Mbps" "1ns" "60ps" "60ps" "50ohms"
"DDR4 ADDR 2400" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1200Mbps" "1ns" "60ps" "60ps" "50ohms"
"DDR4 2666" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "2666Mbps" "1ns" "55ps" "55ps" "50ohms"
"DDR4 CLK 2666" "1.2V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2666Mbps" "1ns" "55ps" "55ps" "50ohms"
"DDR4 ADDR 2666" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1333Mbps" "1ns" "55ps" "55ps" "50ohms"
"DDR4 2933" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "2933Mbps" "1ns" "50ps" "50ps" "50ohms"
"DDR4 CLK 2933" "1.2V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2933Mbps" "1ns" "50ps" "50ps" "50ohms"
"DDR4 ADDR 2933" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1466Mbps" "1ns" "50ps" "50ps" "50ohms"
"DDR4 3200" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "45ps" "45ps" "50ohms"
"DDR4 CLK 3200" "1.2V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "3200Mbps" "1ns" "45ps" "45ps" "50ohms"
"DDR4 ADDR 3200" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "45ps" "45ps" "50ohms"
"DDR5 3200" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "45ps" "45ps" "50ohms"
"DDR5 CLK 3200" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "3200Mbps" "1ns" "45ps" "45ps" "50ohms"
"DDR5 ADDR 3200" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "45ps" "45ps" "50ohms"
"DDR5 3600" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "3600Mbps" "1ns" "42ps" "42ps" "50ohms"
"DDR5 CLK 3600" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "3600Mbps" "1ns" "42ps" "42ps" "50ohms"
"DDR5 ADDR 3600" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "1800Mbps" "1ns" "42ps" "42ps" "50ohms"
"DDR5 4000" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "4000Mbps" "1ns" "40ps" "40ps" "50ohms"
"DDR5 CLK 4000" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "4000Mbps" "1ns" "40ps" "40ps" "50ohms"
"DDR5 ADDR 4000" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2000Mbps" "1ns" "40ps" "40ps" "50ohms"
"DDR5 4400" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "4400Mbps" "1ns" "38ps" "38ps" "50ohms"
"DDR5 CLK 4400" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "4400Mbps" "1ns" "38ps" "38ps" "50ohms"
"DDR5 ADDR 4400" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2200Mbps" "1ns" "38ps" "38ps" "50ohms"
"DDR5 4800" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "4800Mbps" "1ns" "35ps" "35ps" "50ohms"
"DDR5 CLK 4800" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "4800Mbps" "1ns" "35ps" "35ps" "50ohms"
"DDR5 ADDR 4800" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2400Mbps" "1ns" "35ps" "35ps" "50ohms"
"DDR5 5200" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "5200Mbps" "1ns" "32ps" "32ps" "50ohms"
"DDR5 CLK 5200" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "5200Mbps" "1ns" "32ps" "32ps" "50ohms"
"DDR5 ADDR 5200" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2600Mbps" "1ns" "32ps" "32ps" "50ohms"
"DDR5 5600" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "5600Mbps" "1ns" "30ps" "30ps" "50ohms"
"DDR5 CLK 5600" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "5600Mbps" "1ns" "30ps" "30ps" "50ohms"
"DDR5 ADDR 5600" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2800Mbps" "1ns" "30ps" "30ps" "50ohms"
"DDR5 6000" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "6000Mbps" "1ns" "28ps" "28ps" "50ohms"
"DDR5 CLK 6000" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "6000Mbps" "1ns" "28ps" "28ps" "50ohms"
"DDR5 ADDR 6000" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "3000Mbps" "1ns" "28ps" "28ps" "50ohms"
"DDR5 6400" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "6400Mbps" "1ns" "26ps" "26ps" "50ohms"
"DDR5 CLK 6400" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "6400Mbps" "1ns" "26ps" "26ps" "50ohms"
"DDR5 ADDR 6400" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "26ps" "26ps" "50ohms"
"LPDDR2 400" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "400Mbps" "1ns" "300ps" "300ps" "50ohms"
"LPDDR2 CLK 400 LP" "1.0V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "400Mbps" "1ns" "300ps" "300ps" "50ohms"
"LPDDR2 ADDR 400" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "400Mbps" "1ns" "300ps" "300ps" "50ohms"
"LPDDR2 533" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "533Mbps" "1ns" "250ps" "250ps" "50ohms"
"LPDDR2 CLK 533" "1.0V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "533Mbps" "1ns" "250ps" "250ps" "50ohms"
"LPDDR2 ADDR 533" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "533Mbps" "1ns" "250ps" "250ps" "50ohms"
"LPDDR2 667" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "667Mbps" "1ns" "200ps" "200ps" "50ohms"
"LPDDR2 CLK 667" "1.0V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "667Mbps" "1ns" "200ps" "200ps" "50ohms"
"LPDDR2 ADDR 667" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "667Mbps" "1ns" "200ps" "200ps" "50ohms"
"LPDDR2 800" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "180ps" "180ps" "50ohms"
"LPDDR2 CLK 800" "1.0V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "800Mbps" "1ns" "180ps" "180ps" "50ohms"
"LPDDR2 ADDR 800" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "180ps" "180ps" "50ohms"
"LPDDR2 1066" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "150ps" "150ps" "50ohms"
"LPDDR2 CLK 1066" "1.0V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1066Mbps" "1ns" "150ps" "150ps" "50ohms"
"LPDDR2 ADDR 1066" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "150ps" "150ps" "50ohms"
"LPDDR2 400 LP" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "400Mbps" "1ns" "350ps" "350ps" "50ohms"
"LPDDR2 CLK 400 LP" "1.0V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "400Mbps" "1ns" "350ps" "350ps" "50ohms"
"LPDDR2 ADDR 400 LP" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "400Mbps" "1ns" "350ps" "350ps" "50ohms"
"LPDDR2 266 LP" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "266Mbps" "1ns" "400ps" "400ps" "50ohms"
"LPDDR2 CLK 266 LP" "1.0V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "266Mbps" "1ns" "400ps" "400ps" "50ohms"
"LPDDR2 ADDR 266 LP" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "266Mbps" "1ns" "400ps" "400ps" "50ohms"
"LPDDR2 200 LP" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "200Mbps" "1ns" "450ps" "450ps" "50ohms"
"LPDDR2 CLK 200 LP" "1.0V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "200Mbps" "1ns" "450ps" "450ps" "50ohms"
"LPDDR2 ADDR 200 LP" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "200Mbps" "1ns" "450ps" "450ps" "50ohms"
"LPDDR3 800" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "200ps" "200ps" "50ohms"
"LPDDR3 CLK 800" "1.2V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "800Mbps" "1ns" "200ps" "200ps" "50ohms"
"LPDDR3 ADDR 800" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "200ps" "200ps" "50ohms"
"LPDDR3 1066" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "180ps" "180ps" "50ohms"
"LPDDR3 CLK 1066" "1.2V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1066Mbps" "1ns" "180ps" "180ps" "50ohms"
"LPDDR3 ADDR 1066" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "180ps" "180ps" "50ohms"
"LPDDR3 1333" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1333Mbps" "1ns" "160ps" "160ps" "50ohms"
"LPDDR3 CLK 1333" "1.2V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1333Mbps" "1ns" "160ps" "160ps" "50ohms"
"LPDDR3 ADDR 1333" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1333Mbps" "1ns" "160ps" "160ps" "50ohms"
"LPDDR3 1600" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "140ps" "140ps" "50ohms"
"LPDDR3 CLK 1600" "1.2V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1600Mbps" "1ns" "140ps" "140ps" "50ohms"
"LPDDR3 ADDR 1600" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "140ps" "140ps" "50ohms"
"LPDDR3 1866" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1866Mbps" "1ns" "125ps" "125ps" "50ohms"
"LPDDR3 CLK 1866" "1.2V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1866Mbps" "1ns" "125ps" "125ps" "50ohms"
"LPDDR3 ADDR 1866" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1866Mbps" "1ns" "125ps" "125ps" "50ohms"
"LPDDR3 800 LP" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "220ps" "220ps" "50ohms"
"LPDDR3 CLK 800 LP" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "800Mbps" "1ns" "220ps" "220ps" "50ohms"
"LPDDR3 ADDR 800 LP" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "220ps" "220ps" "50ohms"
"LPDDR3 533 LP" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "533Mbps" "1ns" "250ps" "250ps" "50ohms"
"LPDDR3 CLK 533 LP" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "533Mbps" "1ns" "250ps" "250ps" "50ohms"
"LPDDR3 ADDR 533 LP" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "533Mbps" "1ns" "250ps" "250ps" "50ohms"
"LPDDR3 400 LP" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "400Mbps" "1ns" "300ps" "300ps" "50ohms"
"LPDDR3 CLK 400 LP" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "400Mbps" "1ns" "300ps" "300ps" "50ohms"
"LPDDR3 ADDR 400 LP" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "400Mbps" "1ns" "300ps" "300ps" "50ohms"
"LPDDR4 3200 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "60ps" "60ps" "50ohms"
"LPDDR4 CLK 3200 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "3200Mbps" "1ns" "60ps" "60ps" "50ohms"
"LPDDR4 ADDR 3200 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "60ps" "60ps" "50ohms"
"LPDDR4 2666 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2666Mbps" "1ns" "70ps" "70ps" "50ohms"
"LPDDR4 CLK 2666 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2666Mbps" "1ns" "70ps" "70ps" "50ohms"
"LPDDR4 ADDR 2666 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2666Mbps" "1ns" "70ps" "70ps" "50ohms"
"LPDDR4 2400 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2400Mbps" "1ns" "75ps" "75ps" "50ohms"
"LPDDR4 CLK 2400 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2400Mbps" "1ns" "75ps" "75ps" "50ohms"
"LPDDR4 ADDR 2400 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2400Mbps" "1ns" "75ps" "75ps" "50ohms"
"LPDDR4 2133 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2133Mbps" "1ns" "80ps" "80ps" "50ohms"
"LPDDR4 CLK 2133 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2133Mbps" "1ns" "80ps" "80ps" "50ohms"
"LPDDR4 ADDR 2133 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2133Mbps" "1ns" "80ps" "80ps" "50ohms"
"LPDDR4 1600 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "100ps" "100ps" "50ohms"
"LPDDR4 CLK 1600 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1600Mbps" "1ns" "100ps" "100ps" "50ohms"
"LPDDR4 ADDR 1600 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "100ps" "100ps" "50ohms"
"LPDDR4 1600 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "110ps" "110ps" "50ohms"
"LPDDR4 CLK 1600 FSP1" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1600Mbps" "1ns" "110ps" "110ps" "50ohms"
"LPDDR4 ADDR 1600 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "110ps" "110ps" "50ohms"
"LPDDR4 1066 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "130ps" "130ps" "50ohms"
"LPDDR4 CLK 1066 FSP1" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1066Mbps" "1ns" "130ps" "130ps" "50ohms"
"LPDDR4 ADDR 1066 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "130ps" "130ps" "50ohms"
"LPDDR4 800 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "150ps" "150ps" "50ohms"
"LPDDR4 CLK 800 FSP1" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "800Mbps" "1ns" "150ps" "150ps" "50ohms"
"LPDDR4 ADDR 800 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "150ps" "150ps" "50ohms"
"LPDDR5 3200 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "50ps" "50ps" "50ohms"
"LPDDR5 CLK 3200 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "3200Mbps" "1ns" "50ps" "50ps" "50ohms"
"LPDDR5 ADDR 3200 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "50ps" "50ps" "50ohms"
"LPDDR5 4000 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "4000Mbps" "1ns" "40ps" "40ps" "50ohms"
"LPDDR5 CLK 4000 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "4000Mbps" "1ns" "40ps" "40ps" "50ohms"
"LPDDR5 ADDR 4000 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "4000Mbps" "1ns" "40ps" "40ps" "50ohms"
"LPDDR5 4800 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "4800Mbps" "1ns" "35ps" "35ps" "50ohms"
"LPDDR5 CLK 4800 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "4800Mbps" "1ns" "35ps" "35ps" "50ohms"
"LPDDR5 ADDR 4800 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "4800Mbps" "1ns" "35ps" "35ps" "50ohms"
"LPDDR5 5500 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "5500Mbps" "1ns" "30ps" "30ps" "50ohms"
"LPDDR5 CLK 5500 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "5500Mbps" "1ns" "30ps" "30ps" "50ohms"
"LPDDR5 ADDR 5500 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "5500Mbps" "1ns" "30ps" "30ps" "50ohms"
"LPDDR5 6400 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "6400Mbps" "1ns" "25ps" "25ps" "50ohms"
"LPDDR5 CLK 6400 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "6400Mbps" "1ns" "25ps" "25ps" "50ohms"
"LPDDR5 ADDR 6400 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "6400Mbps" "1ns" "25ps" "25ps" "50ohms"
"LPDDR5 3200 FSP1" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "70ps" "70ps" "50ohms"
"LPDDR5 CLK 3200 FSP1" "0.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "3200Mbps" "1ns" "70ps" "70ps" "50ohms"
"LPDDR5 ADDR 3200 FSP1" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "70ps" "70ps" "50ohms"
"LPDDR5 2400 FSP1" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "2400Mbps" "1ns" "90ps" "90ps" "50ohms"
"LPDDR5 CLK 2400 FSP1" "0.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2400Mbps" "1ns" "90ps" "90ps" "50ohms"
"LPDDR5 ADDR 2400 FSP1" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "2400Mbps" "1ns" "90ps" "90ps" "50ohms"
"LPDDR5 1600 FSP1" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "120ps" "120ps" "50ohms"
"LPDDR5 CLK 1600 FSP1" "0.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1600Mbps" "1ns" "120ps" "120ps" "50ohms"
"LPDDR5 ADDR 1600 FSP1" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "120ps" "120ps" "50ohms"
"LPDDR5 1066 FSP1" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "150ps" "150ps" "50ohms"
"LPDDR5 CLK 1066 FSP1" "0.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1066Mbps" "1ns" "150ps" "150ps" "50ohms"
"LPDDR5 ADDR 1066 FSP1" "0.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "150ps" "150ps" "50ohms"
"LPDDR3X 1866" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "1866Mbps" "1ns" "120ps" "120ps" "50ohms"
"LPDDR3X CLK 1866" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1866Mbps" "1ns" "120ps" "120ps" "50ohms"
"LPDDR3X ADDR 1866" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "1866Mbps" "1ns" "120ps" "120ps" "50ohms"
"LPDDR3X 2133" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2133Mbps" "1ns" "100ps" "100ps" "50ohms"
"LPDDR3X CLK 2133" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2133Mbps" "1ns" "100ps" "100ps" "50ohms"
"LPDDR3X ADDR 2133" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "2133Mbps" "1ns" "100ps" "100ps" "50ohms"
"LPDDR4X 3200 FSP0" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "60ps" "60ps" "50ohms"
"LPDDR4X CLK 3200 FSP0" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "3200Mbps" "1ns" "60ps" "60ps" "50ohms"
"LPDDR4X ADDR 3200 FSP0" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "60ps" "60ps" "50ohms"
"LPDDR4X 3600 FSP0" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "3600Mbps" "1ns" "55ps" "55ps" "50ohms"
"LPDDR4X CLK 3600 FSP0" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "3600Mbps" "1ns" "55ps" "55ps" "50ohms"
"LPDDR4X ADDR 3600 FSP0" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "3600Mbps" "1ns" "55ps" "55ps" "50ohms"
"LPDDR4X 3733 FSP0" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "3733Mbps" "1ns" "52ps" "52ps" "50ohms"
"LPDDR3X CLK 3733 FSP0" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "3733Mbps" "1ns" "52ps" "52ps" "50ohms"
"LPDDR4X ADDR 3733 FSP0" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "3733Mbps" "1ns" "52ps" "52ps" "50ohm"
"LPDDR4X 4266 FSP0" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "4266Mbps" "1ns" "50ps" "50ps" "50ohms"
"LPDDR4X CLK 4266 FSP0" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "4266Mbps" "1ns" "50ps" "50ps" "50ohms"
"LPDDR4X ADDR 4266 FSP0" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "4266Mbps" "1ns" "50ps" "50ps" "50ohms"
"LPDDR4X 1600 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "90ps" "90ps" "50ohms"
"LPDDR4X CLK 1600 FSP0" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1600Mbps" "1ns" "90ps" "90ps" "50ohms"
"LPDDR4X ADDR 1600 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "90ps" "90ps" "50ohms"
"LPDDR4X 1066 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "110ps" "110ps" "50ohms"
"LPDDR4X CLK 1066 FSP1" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1066Mbps" "1ns" "110ps" "110ps" "50ohms"
"LPDDR4X ADDR 1066 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "110ps" "110ps" "50ohms"
"LPDDR4X 800 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "130ps" "130ps" "50ohms"
"LPDDR4X CLK 800 FSP1" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "800Mbps" "1ns" "130ps" "130ps" "50ohms"
"LPDDR4X ADDR 800 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "130ps" "130ps" "50ohms"
"LPDDR5X 7500 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "7500Mbps" "1ns" "40ps" "40ps" "50ohms"
"LPDDR5X CLK 7500 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "7500Mbps" "1ns" "40ps" "40ps" "50ohms"
"LPDDR5X ADDR 7500 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "7500Mbps" "1ns" "40ps" "40ps" "50ohms"
"LPDDR5X 8000 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "8000Mbps" "1ns" "35ps" "35ps" "50ohms"
"LPDDR5X CLK 8000 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "800Mbps" "1ns" "35ps" "35ps" "50ohms"
"LPDDR5X ADDR 8000 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "8000Mbps" "1ns" "35ps" "35ps" "50ohms"
"LPDDR5X 8533 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "8533Mbps" "1ns" "32ps" "32ps" "50ohms"
"LPDDR5X CLK 8533 FSP0" "1.1V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "8533Mbps" "1ns" "32ps" "32ps" "50ohms"
"LPDDR5X ADDR 8533 FSP0" "1.1V" "PRBS" "N/A" "1" "N/A" "N/A" "8533Mbps" "1ns" "32ps" "32ps" "50ohms"
"LPDDR5X 4800 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "4800Mbps" "1ns" "55ps" "55ps" "50ohms"
"LPDDR5X CLK 4800 FSP1" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "4800Mbps" "1ns" "55ps" "55ps" "50ohms"
"LPDDR5X ADDR 4800 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "4800Mbps" "1ns" "55ps" "55ps" "50ohms"
"LPDDR5X 3200 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "65ps" "65ps" "50ohms"
"LPDDR5X CLK 3200 FSP1" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "3200Mbps" "1ns" "65ps" "65ps" "50ohms"
"LPDDR5X ADDR 3200 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "65ps" "65ps" "50ohms"
"LPDDR5X 2133 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "2133Mbps" "1ns" "80ps" "80ps" "50ohms"
"LPDDR5X CLK 2133 FSP1" "0.6V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2133Mbps" "1ns" "80ps" "80ps" "50ohms"
"LPDDR5X ADDR 2133 FSP1" "0.6V" "PRBS" "N/A" "1" "N/A" "N/A" "2133Mbps" "1ns" "80ps" "80ps" "50ohms"
"GDDR3 1000" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "1000Mbps" "1ns" "250ps" "250ps" "50ohms"
"GDDR3 CLK 1000" "1.8V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1000Mbps" "1ns" "250ps" "250ps" "50ohms"
"GDDR3 ADDR 1000" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "500Mbps" "1ns" "250ps" "250ps" "50ohms"
"GDDR3 1200" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "1200Mbps" "1ns" "200ps" "200ps" "50ohms"
"GDDR3 CLK 1200" "1.8V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1200Mbps" "1ns" "200ps" "200ps" "50ohms"
"GDDR3 ADDR 1200" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "600Mbps" "1ns" "200ps" "200ps" "50ohms"
"GDDR3 1333" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "1333Mbps" "1ns" "180ps" "180ps" "50ohms"
"GDDR3 CLK 1333" "1.8V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1333Mbps" "1ns" "180ps" "180ps" "50ohms"
"GDDR3 ADDR 1333" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "666Mbps" "1ns" "180ps" "180ps" "50ohms"
"GDDR3 1600" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "160ps" "160ps" "50ohms"
"GDDR3 CLK 1600" "1.8V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1600Mbps" "1ns" "160ps" "160ps" "50ohms"
"GDDR3 ADDR 1600" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "800Mbps" "1ns" "160ps" "160ps" "50ohms"
"GDDR3 1800" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "1800Mbps" "1ns" "150ps" "150ps" "50ohms"
"GDDR3 CLK 1800" "1.8V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "1800Mbps" "1ns" "150ps" "150ps" "50ohms"
"GDDR3 ADDR 1800" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "900Mbps" "1ns" "150ps" "150ps" "50ohms"
"GDDR3 2000" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "2000Mbps" "1ns" "130ps" "130ps" "50ohms"
"GDDR3 CLK 2000" "1.8V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2000Mbps" "1ns" "130ps" "130ps" "50ohms"
"GDDR3 ADDR 2000" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "1000Mbps" "1ns" "130ps" "130ps" "50ohms"
"GDDR4 2000" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "2000Mbps" "1ns" "180ps" "180ps" "50ohms"
"GDDR4 CLK 2000" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2000Mbps" "1ns" "180ps" "180ps" "50ohms"
"GDDR4 ADDR 2000" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1000Mbps" "1ns" "180ps" "180ps" "50ohms"
"GDDR4 2400" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "2400Mbps" "1ns" "160ps" "160ps" "50ohms"
"GDDR4 CLK 2400" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2400Mbps" "1ns" "160ps" "160ps" "50ohms"
"GDDR4 ADDR 2400" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1200Mbps" "1ns" "160ps" "160ps" "50ohms"
"GDDR4 2800" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "2800Mbps" "1ns" "130ps" "130ps" "50ohms"
"GDDR4 CLK 2800" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "2800Mbps" "1ns" "130ps" "130ps" "50ohms"
"GDDR4 ADDR 2800" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1400Mbps" "1ns" "130ps" "130ps" "50ohms"
"GDDR5 3000" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "3000Mbps" "1ns" "150ps" "150ps" "50ohms"
"GDDR5 CLK 3000" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "3000Mbps" "1ns" "150ps" "150ps" "50ohms"
"GDDR5 ADDR 3000" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "1500Mbps" "1ns" "150ps" "150ps" "50ohms"
"GDDR5 4000" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "4000Mbps" "1ns" "120ps" "120ps" "50ohms"
"GDDR5 CLK 4000" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "4000Mbps" "1ns" "120ps" "120ps" "50ohms"
"GDDR5 ADDR 4000" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "2000Mbps" "1ns" "120ps" "120ps" "50ohms"
"GDDR5 5000" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "5000Mbps" "1ns" "100ps" "100ps" "50ohms"
"GDDR5 CLK 5000" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "5000Mbps" "1ns" "100ps" "100ps" "50ohms"
"GDDR5 ADDR 5000" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "2500Mbps" "1ns" "100ps" "100ps" "50ohms"
"GDDR5 6000" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "6000Mbps" "1ns" "85ps" "85ps" "50ohms"
"GDDR5 CLK 6000" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "6000Mbps" "1ns" "85ps" "85ps" "50ohms"
"GDDR5 ADDR 6000" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "3000Mbps" "1ns" "85ps" "85ps" "50ohms"
"GDDR5 7000" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "7000Mbps" "1ns" "75ps" "75ps" "50ohms"
"GDDR5 CLK 7000" "1.5V" "Custom Bit Sequence" "1010" "1" "N/A" "N/A" "7000Mbps" "1ns" "75ps" "75ps" "50ohms"
"GDDR5 ADDR 7000" "1.5V" "PRBS" "N/A" "1" "N/A" "N/A" "3500Mbps" "1ns" "75ps" "75ps" "50ohms"
"UART RS-232 12V 4800 60ns" "12V" "PRBS" "N/A" "1" "N/A" "N/A" "4800bps" "1ns" "60ns" "60ns" "100ohms"
"UART RS-232 12V 9600 30ns" "12V" "PRBS" "N/A" "1" "N/A" "N/A" "9600bps" "1ns" "30ns" "30ns" "100ohms"
"UART RS-232 12V 19200 15ns" "12V" "PRBS" "N/A" "1" "N/A" "N/A" "19200bps" "1ns" "15ns" "15ns" "100ohms"
"UART RS-232 12V 38400 8ns" "12V" "PRBS" "N/A" "1" "N/A" "N/A" "38400bps" "1ns" "8ns" "8ns" "100ohms"
"UART RS-232 12V 57600 5ns" "12V" "PRBS" "N/A" "1" "N/A" "N/A" "57600bps" "1ns" "5ns" "5ns" "100ohms"
"UART RS-232 12V 115200 2.5ns" "12V" "PRBS" "N/A" "1" "N/A" "N/A" "115200bps" "1ns" "2.5ns" "2.5ns" "100ohms"
"UART RS-232 12V 230400 1.25ns" "12V" "PRBS" "N/A" "1" "N/A" "N/A" "230400bps" "1ns" "1.25ns" "1.25ns" "100ohms"
"UART RS-232 12V 460800 625ps" "12V" "PRBS" "N/A" "1" "N/A" "N/A" "460800bps" "1ns" "625ps" "625ps" "100ohms"
"UART RS-232 12V 921600 312ps" "12V" "PRBS" "Yes" "1" "8N1" "921600bps" "1ns" "312ps" "312ps" "100ohms"
"UART TTL 5V 4800 60ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "4800bps" "1ns" "60ns" "60ns" "100ohms"
"UART TTL 5V 9600 30ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "9600bps" "1ns" "30ns" "30ns" "100ohms"
"UART TTL 5V 19200 15ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "19200bps" "1ns" "15ns" "15ns" "100ohms"
"UART TTL 5V 38400 8ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "38400bps" "1ns" "8ns" "8ns" "100ohms"
"UART TTL 5V 57600 5ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "57600bps" "1ns" "5ns" "5ns" "100ohms"
"UART TTL 5V 115200 2.5ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "115200bps" "1ns" "2.5ns" "2.5ns" "100ohms"
"UART TTL 5V 230400 1.25ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "230400bps" "1ns" "1.25ns" "1.25ns" "100ohms"
"UART TTL 5V 460800 625ps" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "460800bps" "1ns" "625ps" "625ps" "100ohms"
"UART TTL 5V 921600 312ps" "5V" "PRBS" "Yes" "1" "8N1" "921600bps" "1ns" "312ps" "312ps" "100ohms"
"UART Modern Controller 3.3V 4800 60ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "4800bps" "1ns" "60ns" "60ns" "100ohms"
"UART Modern Controller 3.3V 9600 30ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "9600bps" "1ns" "30ns" "30ns" "100ohms"
"UART Modern Controller 3.3V 19200 15ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "19200bps" "1ns" "15ns" "15ns" "100ohms"
"UART Modern Controller 3.3V 38400 8ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "38400bps" "1ns" "8ns" "8ns" "100ohms"
"UART Modern Controller 3.3V 57600 5ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "57600bps" "1ns" "5ns" "5ns" "100ohms"
"UART Modern Controller 3.3V 115200 2.5ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "115200bps" "1ns" "2.5ns" "2.5ns" "100ohms"
"UART Modern Controller 3.3V 230400 1.25ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "230400bps" "1ns" "1.25ns" "1.25ns" "100ohms"
"UART Modern Controller 3.3V 460800 625ps" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "460800bps" "1ns" "625ps" "625ps" "100ohms"
"UART Modern Controller 3.3V 921600 312ps" "3.3V" "PRBS" "Yes" "1" "8N1" "921600bps" "1ns" "312ps" "312ps" "100ohms"
"UART Modern Controller 1.8V 4800 60ns" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "4800bps" "1ns" "60ns" "60ns" "100ohms"
"UART Modern Controller 1.8V 9600 30ns" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "9600bps" "1ns" "30ns" "30ns" "100ohms"
"UART Modern Controller 1.8V 19200 15ns" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "19200bps" "1ns" "15ns" "15ns" "100ohms"
"UART Modern Controller 1.8V 38400 8ns" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "38400bps" "1ns" "8ns" "8ns" "100ohms"
"UART Modern Controller 1.8V 57600 5ns" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "57600bps" "1ns" "5ns" "5ns" "100ohms"
"UART Modern Controller 1.8V 115200 2.5ns" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "115200bps" "1ns" "2.5ns" "2.5ns" "100ohms"
"UART Modern Controller 1.8V 230400 1.25ns" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "230400bps" "1ns" "1.25ns" "1.25ns" "100ohms"
"UART Modern Controller 1.8V 460800 625ps" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "460800bps" "1ns" "625ps" "625ps" "100ohms"
"UART Modern Controller 1.8V 921600 312ps" "1.8V" "PRBS" "Yes" "1" "8N1" "921600bps" "1ns" "312ps" "312ps" "100ohms"
"UART 3M" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "3Mbps" "1ns" "80ns" "80ns" "50ohms"
"HT 1.0 800MT/s x2" "1.2V" "PRBS" "DDR" "2" "N/A" "N/A" "1600Mbps" "1ns" "200ps" "200ps" "100ohms"
"HT 3.1 2600MT/s x8" "1.2V" "PRBS" "DDR" "8" "N/A" "N/A" "20800Mbps" "1ns" "50ps" "50ps" "100ohms"
"SRIO v2.1 x1" "1.0V" "PRBS" "8b/10b" "1" "N/A" "N/A" "1250Mbps" "1ns" "150ps" "150ps" "100ohms"
"SRIO v2.2 x4" "1.0V" "PRBS" "64b/67b" "4" "N/A" "N/A" "20000Mbps" "1ns" "50ps" "50ps" "100ohms"
"InfiniBand SDR x1" "1.2V" "PRBS" "8b/10b" "1" "N/A" "N/A" "2500Mbps" "1ns" "100ps" "100ps" "100ohms"
"InfiniBand EDR x4" "1.2V" "PRBS" "64b/66b" "4" "N/A" "N/A" "100000Mbps" "1ns" "30ps" "30ps" "100ohms"
"SpaceWire 10Mbps" "3.3V" "PRBS" "8b/10b" "2" "N/A" "N/A" "10Mbps" "1ns" "25ns" "25ns" "100ohms"
"SpaceWire 200Mbps" "3.3V" "PRBS" "8b/10b" "2" "N/A" "N/A" "200Mbps" "1ns" "5ns" "5ns" "100ohms"
"eDP 1.3 HBR2 x2" "0.85V" "PRBS" "8b/10b" "2" "N/A" "N/A" "10800Mbps" "1ns" "50ps" "50ps" "85ohms"
"eDP 1.4 HBR3 x4" "0.85V" "PRBS" "8b/10b" "4" "N/A" "N/A" "25920Mbps" "1ns" "40ps" "40ps" "85ohms"
"eDP 1.5 UHBR20 x4" "0.85V" "PRBS" "128b/132b" "4" "N/A" "N/A" "80000Mbps" "1ns" "30ps" "30ps" "85ohms"
"FireWire 1394b S800" "1.8V" "PRBS" "8b/10b" "2" "N/A" "N/A" "800Mbps" "1ns" "5ns" "5ns" "110ohms"
"FireWire 1394c S3200" "1.8V" "PRBS" "8b/10b" "2" "N/A" "N/A" "3200Mbps" "1ns" "2ns" "2ns" "110ohms"
"Thunderbolt 1 x2" "0.8V" "PRBS" "8b/10b" "2" "N/A" "N/A" "10000Mbps" "1ns" "30ps" "30ps" "85ohms"
"Thunderbolt 2 x2" "0.8V" "PRBS" "8b/10b" "2" "N/A" "N/A" "20000Mbps" "1ns" "25ps" "25ps" "85ohms"
"Thunderbolt 3 x4" "0.8V" "PRBS" "128b/130b" "4" "N/A" "N/A" "40000Mbps" "1ns" "20ps" "20ps" "85ohms"
"Thunderbolt 4 x4" "0.8V" "PRBS" "128b/130b" "4" "N/A" "N/A" "40000Mbps" "1ns" "20ps" "20ps" "85ohms"
"LVDS Generic 400Mbps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "400Mbps" "2.5ns" "150ps" "150ps" "100ohms"
"LVDS Generic 655Mbps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "655Mbps" "1.5ns" "120ps" "120ps" "100ohms"
"LVDS Flat Panel 1.5Gbps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "1500Mbps" "0.67ns" "100ps" "100ps" "100ohms"
"CPI 8-bit 24MHz" "3.3V" "PRBS" "N/A" "8" "N/A" "N/A" "192Mbps" "42ns" "10ns" "10ns" "50ohms"
"CPI 8-bit 48MHz" "3.3V" "PRBS" "N/A" "8" "N/A" "N/A" "384Mbps" "21ns" "8ns" "8ns" "50ohms"
"DVP 8-bit 27MHz" "3.3V" "PRBS" "N/A" "8" "N/A" "N/A" "216Mbps" "37ns" "8ns" "8ns" "50ohms"
"DVP 10-bit 36MHz" "3.3V" "PRBS" "N/A" "10" "N/A" "N/A" "360Mbps" "27ns" "7ns" "7ns" "50ohms"
"LVDS 455Mbps" "0.35V" "N/A" "N/A" "1" "N/A" "N/A" "455Mbps" "2.2ns" "150ps" "150ps" "100ohms"
"LVDS 1Gbps" "0.35V" "PRBS" "N/A" "1" "N/A" "N/A" "1000Mbps" "1ns" "100ps" "100ps" "100ohms"
"SDIO Default 25MHz" "3.3V" "PRBS" "N/A" "4" "N/A"N/A "100Mbps" "11ns" "5ns" "5ns" "50ohms"
"SDIO High 50MHz" "3.3V" "PRBS" "N/A" "4" "N/A"N/A "200Mbps" "1ns" "3ns" "3ns" "50ohms"
"SDIO UHS-I 104MHz" "1.8V" "PRBS" "N/A" "4" "N/A" "N/A" "416Mbps" "1ns" "1ns" "1ns" "50ohms"
"FireWire 1394a S100" "3.3V" "PRBS" "DS-Link" "1" "N/A" "N/A" "100Mbps" "1ns" "20ns" "20ns" "110ohms"
"FireWire 1394a S400" "3.3V" "PRBS" "DS-Link" "1" "N/A" "N/A" "400Mbps" "1ns" "10ns" "10ns" "110ohms"
"CAN 125kbps" "5V" "PRBS" "PRBS" "1" "N/A" "N/A" "125Kbps" "1ns" "300ns" "300ns" "120ohms"
"CAN 500kbps" "5V" "PRBS" "PRBS" "1" "N/A" "N/A" "500Kbps" "1ns" "150ns" "150ns" "120ohms"
"CAN 1Mbps" "5V" "PRBS" "PRBS" "1" "N/A" "N/A" "1Mbps" "1ns" "100ns" "100ns" "120ohms"
"CAN-FD 2Mbps" "5V" "PRBS" "PRBS" "1" "N/A" "N/A" "2Mbps" "1ns" "70ns" "70ns" "120ohms"
"CAN-FD 5Mbps" "5V" "PRBS" "PRBS" "1" "N/A" "N/A" "5Mbps" "1ns" "50ns" "50ns" "120ohms"
"I3C SDR 12.5Mbps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "12500Kbps" "1ns" "20ns" "20ns" "50ohms"
"I3C HDR-TSP 25Mbps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "25Mbps" "1ns" "10ns" "10ns" "50ohms"
"I3C HDR-TSL 33Mbps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "33Mbps" "1ns" "8ns" "8ns" "50ohms"
"LIN 19.2kbps" "12V" "PRBS" "UART/Checksum" "1" "N/A" "N/A" "19200bps" "1ns" "1us" "1us" "60ohms"
"LIN 10.4kbps" "12V" "PRBS" "UART/Checksum" "1" "N/A" "N/A" "10400bps" "1ns" "2us" "2us" "60ohms"
"FlexRay 10Mbps" "5V" "PRBS" "N/A" "2" "N/A" "N/A" "10Mbps" "1ns" "20ns" "20ns" "100ohms"
"SPI 1Mbps" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "1Mbps" "1ns" "100ns" "100ns" "50ohms"
"SPI 10Mbps" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "10Mbps" "1ns" "10ns" "10ns" "50ohms"
"SPI 50Mbps" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "50Mbps" "1ns" "5ns" "5ns" "50ohms"
"SPI 100Mbps" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "100Mbps" "1ns" "3ns" "3ns" "50ohms"
"Dual SPI 100Mbps" "1.8V" "PRBS" "N/A" "2" "N/A" "N/A" "100Mbps" "1ns" "3ns" "3ns" "50ohms"
"Quad SPI 200Mbps" "1.8V" "PRBS" "N/A" "4" "N/A" "N/A" "200Mbps" "1ns" "2ns" "2ns" "50ohms"
"Octal SPI 400Mbps" "1.2V" "PRBS" "N/A" "8" "N/A" "N/A" "400Mbps" "1ns" "1ns" "1ns" "50ohms"
"I2C Standard 100k" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "100Kbps" "1ns" "300ns" "300ns" "50ohms"
"I2C Fast 400k" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "400Kbps" "1ns" "120ns" "120ns" "50ohms"
"I2C Fast+ 1M" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "1Mbps" "1ns" "80ns" "80ns" "50ohms"
"I2C HS 3.4M" "1.8V" "PRBS" "N/A" "1" "N/A" "N/A" "3400Kbps" "1ns" "30ns" "30ns" "50ohms"
"QSPI 50Mbps" "1.8V" "PRBS" "N/A" "4" "N/A" "N/A" "50Mbps" "1ns" "5ns" "5ns" "50ohms"
"QSPI 80Mbps" "1.8V" "PRBS" "N/A" "4" "N/A" "N/A" "80Mbps" "1ns" "3ns" "3ns" "50ohms"
"QSPI 133Mbps" "1.8V" "PRBS" "N/A" "4" "N/A" "N/A" "133Mbps" "1ns" "2ns" "2ns" "50ohms"
"QSPI DDR 200Mbps" "1.8V" "PRBS" "N/A" "4" "N/A" "N/A" "200Mbps" "1ns" "1.5ns" "1.5ns" "50ohms"
"RS-485 100kbps 5V" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "100Kbps" "1ns" "300ns" "300ns" "120ohms"
"RS-485 1Mbps 5V" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "1Mbps" "1ns" "100ns" "100ns" "120ohms"
"RS-485 5Mbps 5V" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "5Mbps" "1ns" "50ns" "50ns" "120ohms"
"RS-485 10Mbps 5V" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "10Mbps" "1ns" "30ns" "30ns" "120ohms"
"RS-485 100kbps 3.3V" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "100Kbps" "1ns" "400ns" "400ns" "120ohms"
"RS-485 1Mbps 3.3V" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "1Mbps" "1ns" "150ns" "150ns" "120ohms"
"RS-485 5Mbps 3.3V" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "5Mbps" "1ns" "90ns" "90ns" "120ohms"
"RS-485 10Mbps 3.3V" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "10Mbps" "1ns" "75ns" "75ns" "120ohms"
"LPC 33MHz" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "33Mbps" "1ns" "10ns" "10ns" "50ohms"
"ISA 8MHz" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "8Mbps" "1ns" "60ns" "60ns" "50ohms"
"CAMAC 1Mbps" "6V" "PRBS" "N/A" "1" "N/A" "N/A" "1Mbps" "1ns" "300ns" "300ns" "93ohms"
"VMEbus 40Mbps" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "40Mbps" "1ns" "10ns" "10ns" "50ohms"
"NuBus 10Mbps" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "10Mbps" "1ns" "50ns" "50ns" "50ohms"
"PCI 133Mbps" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "133Mbps" "1ns" "3ns" "3ns" "50ohms"
"PXIe Gen1 x1" "3.3V" "PRBS" "8b/10b" "1" "N/A" "N/A" "250Mbps" "1ns" "200ps" "200ps" "85ohms"
"PXIe Gen2 x4" "3.3V" "PRBS" "8b/10b" "4" "N/A" "N/A" "2000Mbps" "1ns" "100ps" "100ps" "85ohms"
"PXIe Gen3 x8" "3.3V" "PRBS" "128b/130b" "8" "N/A" "N/A" "7875Mbps" "1ns" "50ps" "50ps" "85ohms"
"ISA 8MHz" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "8Mbps" "1ns" "60ns" "60ns" "50ohms"
"MCA 10MHz" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "10Mbps" "1ns" "50ns" "50ns" "50ohms"
"cPCI 32bit 33MHz" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "133Mbps" "1ns" "3ns" "3ns" "50ohms"
"cPCI 64bit 66MHz" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "533Mbps" "1ns" "2ns" "2ns" "50ohms"
"PCI-X 66MHz 64bit" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "533Mbps" "1ns" "2ns" "2ns" "50ohms"
"PCI-X 133MHz 64bit" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "1066Mbps" "1ns" "1.5ns" "1.5ns" "50ohms"
"VXI C-size" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "40Mbps" "1ns" "10ns" "10ns" "50ohms"
"AXI 64b 100MHz" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "6400Mbps" "1ns" "500ps" "500ps" "50ohms"
"AHB 32b 100MHz" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "3200Mbps" "1ns" "700ps" "700ps" "50ohms"
"APB 32b 50MHz" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "1ns" "1ns" "50ohms"
"FSMC 16-bit 60MHz" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "960Mbps" "1ns" "6ns" "6ns" "50ohms"
"GPMC 16-bit 100MHz" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "1600Mbps" "1ns" "5ns" "5ns" "50ohms"
"Aurora 1.2V 30ps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "28000Mbps" "1ns" "30ps" "30ps" "50ohms"
"Aurora 1.2V 60ps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "28000Mbps" "1ns" "60ps" "60ps" "50ohms"
"Aurora 1.0V 30ps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "28000Mbps" "1ns" "35ps" "35ps" "50ohms"
"Aurora 1.0V 60ps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "28000Mbps" "1ns" "65ps" "65ps" "50ohms"
"Aurora 0.8V 30ps" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "28000Mbps" "1ns" "40ps" "40ps" "50ohms"
"Aurora 0.8V 60ps" "0.8V" "PRBS" "N/A" "1" "N/A" "N/A" "28000Mbps" "1ns" "70ps" "70ps" "50ohms"
"SerialLite 1.2V 50ps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "28Gbps" "1ns" "50ps" "50ps" "50ohms"
"SerialLite 0.9V 80ps" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "10Gbps" "1ns" "80ps" "80ps" "50ohms"
"JESD204B 1.2V 100ps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "3.125Gbps" "1ns" "100ps" "100ps" "100ohms"
"JESD204C 1.2V 50ps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "32Gbps" "1ns" "50ps" "50ps" "100ohms"
"SpaceFibre 1.0V 100ps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "6.25Gbps" "1ns" "100ps" "100ps" "100ohms"
"MIL-STD-1553 5V 10ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "1Mbps" "1ns" "1ns" "10ns" "78ohms"
"ARINC 429 10.5Vpp 20ns" "10.5V" "PRBS" "N/A" "1" "N/A" "N/A" "12.5kbps" "1ns" "20ns" "20ns" "75ohms"
"ARINC 429 10.5Vpp 20ns 100kbps" "10.5V" "PRBS" "N/A" "1" "N/A" "N/A" "100kbps" "1ns" "20ns" "20ns" "75ohms"
"NVLink 1.2V 50ps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "50Gbps" "1ns" "50ps" "50ps" "100ohms"
"eMMC 3.3V 800ps" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "400MBps" "1ns" "800ps" "800ps" "50ohms"
"UFS 0.9V 80ps" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "5.8Gbps" "1ns" "80ps" "80ps" "100ohms"
"SpaceWire 3.3V 2ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "10Mbps" "1ns" "2ns" "2ns" "100ohms"
"SpaceWire 3.3V 1.5ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "100Mbps" "1ns" "1.5ns" "1.5ns" "100ohms"
"SpaceWire 3.3V 1ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "400Mbps" "1ns" "1ns" "1ns" "100ohms"
"SpaceFibre 1.0V 100ps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "6.25Gbps" "1ns" "100ps" "100ps" "100ohms"
"CAN-FD 5V 800ps" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "2Mbps" "1ns" "800ps" "800ps" "120ohms"
"CAN-FD 5V 600ps" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "5Mbps" "1ns" "600ps" "600ps" "120ohms"
"CAN-FD 5V 500ps" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "8Mbps" "1ns" "500ps" "500ps" "120ohms"
"CAN 5V 1ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "1Mbps" "1ns" "1ns" "1ns" "120ohms"
"CAN-FD 5V 2M 800ps" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "2Mbps" "1ns" "800ps" "800ps" "120ohms"
"CAN-FD 5V 5M 600ps" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "5Mbps" "1ns" "600ps" "600ps" "120ohms"
"CAN-FD 5V 8M 500ps" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "8Mbps" "1ns" "500ps" "500ps" "120ohms"
"LIN 12V 10ns" "12V" "PRBS" "N/A" "1" "N/A" "N/A" "20kbps" "1ns" "10ns" "10ns" "1kohm"
"TTP 5V 3ns 5M" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "5Mbps" "1ns" "3ns" "3ns" "50–100ohms"
"TTP 5V 2ns 10M" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "10Mbps" "1ns" "2ns" "2ns" "50–100ohms"
"MOST 5V 22.5M 2ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "22.5Mbps" "1ns" "2ns" "2ns" "100ohms"
"MOST 5V 44.1M 1.5ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "44.1Mbps" "1ns" "1.5ns" "1.5ns" "100ohms"
"MOST 5V 150M 1ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "150Mbps" "1ns" "1ns" "1ns" "100ohms"
"TileLink 1.0V 120ps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "0.5Gbps" "1ns" "120ps" "120ps" "50ohms"
"TileLink 1.0V 100ps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "1Gbps" "1ns" "100ps" "100ps" "50ohms"
"TileLink 1.0V 80ps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "2Gbps" "1ns" "80ps" "80ps" "50ohms"
"TileLink 1.0V 60ps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "4Gbps" "1ns" "60ps" "60ps" "50ohms"
"OpenCAPI 0.9V 25G" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "25Gbps" "1ns" "60ps" "60ps" "100ohms"
"OpenCAPI 0.9V 28G" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "28Gbps" "1ns" "50ps" "50ps" "100ohms"
"OpenCAPI 0.9V 32G" "0.9V" "PRBS" "N/A" "1" "N/A" "N/A" "32Gbps" "1ns" "45ps" "45ps" "100ohms"
"NoC (Xilinx/Intel) 1.0V 1Gbps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "1Gbps" "1ns" "120ps" "120ps" "100ohms"
"NoC (Xilinx/Intel) 1.0V 4Gbps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "4Gbps" "1ns" "100ps" "100ps" "100ohms"
"NoC (Xilinx/Intel) 1.0V 8Gbps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "8Gbps" "1ns" "80ps" "80ps" "100ohms"
"NoC (Xilinx/Intel) 1.0V 16Gbps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "16Gbps" "1ns" "60ps" "60ps" "100ohms"
"EtherCAT 3.3V 2ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "100Mbps" "1ns" "2ns" "2ns" "100ohms"
"PROFIBUS 5V 5ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "12Mbps" "1ns" "5ns" "5ns" "150ohms"
"Modbus 5V 10ns" "5V" "PRBS" "N/A" "1" "N/A" "N/A" "115.2kbps" "1ns" "10ns" "10ns" "120ohms"
"I2S 3.3V 1ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "3.1Mbps" "1ns" "1ns" "1ns" "100ohms"
"SPDIF 0.5Vpp 10ns" "0.5Vpp" "PRBS" "N/A" "1" "N/A" "N/A" "6.144Mbps" "1ns" "10ns" "10ns" "75ohms"
"MIPI SoundWire 1.2V 100ps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "12.288Mbps" "1ns" "100ps" "100ps" "50ohms"
"SLVS-EC 1.2V 50ps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "9Gbps" "1ns" "50ps" "50ps" "100ohms"
"cPHY 1.2V 80ps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "6Gbps" "1ns" "80ps" "80ps" "100ohm"
"Medical ISO/IEEE 11073 3.3V 5ns" "3.3V" "PRBS" ""N/A" "1" "N/A" "N/A" "1Mbps" "1ns" "5ns" "5ns" "100ohms"
"MICS Band Telemetry 1.0V 50ns" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "405MHz" "1ns" "50ns" "50ns" "Impedance matched"
"Zigbee Medical 3.3V 10ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "250kbps" "1ns" "10ns" "10ns" "50ohms"
"Telecom T1" 3.3V 5ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "1.544MbpsMbps" "1ns" "5ns" "5ns" "100ohms"
"Telecom E1" 3.3V 5ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "2.048Mbps" "1ns" "5ns" "5ns" "100ohms"
"SONET OC-3 3.3V 100ps" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "155.52Mbps" "1ns" "100ps" "100ps" "75ohms"
"SONET OC-192 1.2V 50ps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "9.953Gbps" "1ns" "50ps" "50ps" "75ohms"
"SDH STM-64 1.2V 50ps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "9.953Gbps" "1ns" "50ps" "50ps" "75ohms"
RISC-V / Debug Interfaces"JTAG 3.3V 5ns" "3.3V" "PRBS" "N/A" "1" "N/A" "N/A" "10–50MHz" "100ns" "5ns" "5ns" "50ohms"
"Debug Module Interface (DMI) 1.2V 200ps" "1.2V" "PRBS" "N/A" "1" "N/A" "N/A" "10Mbps" "1us" "200ps" "200ps" "50ohms"
"TileLink (RISC-V NoC) 1.0V 100ps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "0.5Gbps" "1ns" "100ps" "100ps" "50ohms"
"TileLink (RISC-V NoC) 1.0V 100ps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "1Gbps" "1ns" "90ps" "90ps" "50ohms"
"TileLink (RISC-V NoC) 1.0V 100ps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "2Gbps" "1ns" "80ps" "80ps" "50ohms"
"TileLink (RISC-V NoC) 1.0V 100ps" "1.0V" "PRBS" "N/A" "1" "N/A" "N/A" "4Gbps" "1ns" "70ps" "70ps" "50ohms"
Ozen Engineering Expertise
Ozen Engineering Inc. leverages its extensive consulting expertise in CFD, FEA, optics, photonics, and electromagnetic simulations to achieve exceptional results across various engineering projects, addressing complex challenges such as antenna design, signal integrity, electromagnetic interference (EMI), and electric motor analysis using Ansys software.
We offer support, mentoring, and consulting services to enhance the performance and reliability of your electronics systems. Trust our proven track record to accelerate projects, optimize performance, and deliver high-quality, cost-effective results. For more information, please visit https://ozeninc.com.
If you want to learn more about our consulting services, please visit: https://www.ozeninc.com/consulting/
CFD: https://www.ozeninc.com/consulting/cfd-consulting/
FEA: https://www.ozeninc.com/consulting/fea-consulting/
Optics: https://www.ozeninc.com/consulting/optics-photonics/
Photonics: https://www.ozeninc.com/consulting/optics-photonics/
Electromagnetic Simulations: https://www.ozeninc.com/consulting/electromagnetic-consulting/
Thermal Analysis & Electronics Cooling: https://www.ozeninc.com/consulting/thermal-engineering-electronics-cooling/
