Discover how to perform the inverter cooling analysis using Ansys IcePak, ensuring efficient heat transfer and reliable performance.
The challenges of cooling inverters
Cooling inverters is a complex challenge in the industry, especially when dealing with high-power electronics. Inverters generate significant amounts of heat during operation, and without efficient cooling mechanisms, their performance and longevity can be severely compromised. The use of liquid cooling systems has become increasingly popular due to their effectiveness in managing high heat loads compared to traditional air cooling methods.
However, integrating liquid cooling systems into inverter designs requires careful consideration of various factors such as fluid flow dynamics, thermal conductivity of materials, and the overall thermal management strategy. Ensuring that these systems work efficiently and reliably under different operating conditions is a key challenge that engineers need to address.
Engineering Solution: Ansys Icepak
To address the thermal challenges in modern power electronics, detailed analysis of conjugate heat transfer (CHT) is essential. Ansys Icepak enables engineers to simulate the thermal interactions between solids and fluids in liquid-cooled inverter systems, allowing for accurate temperature predictions and hotspot identification. The process involves importing CAD geometry, assigning material properties, and defining fluid boundary conditions. Advanced meshing ensures precision, particularly in areas with high thermal gradients. By leveraging CHT simulations, engineers can evaluate coolant types, channel designs, and heat exchanger placements, leading to improved inverter reliability, extended service life, and compliance with safety standards. These simulations are crucial for validating designs and managing thermal risks in high-power applications.
Simulation with Ansys Icepak AEDT
The Icepak simulation process within Ansys Electronics Desktop follows a structured workflow:- Import the CAD geometry of the inverter assembly
- Specify material definitions for all components

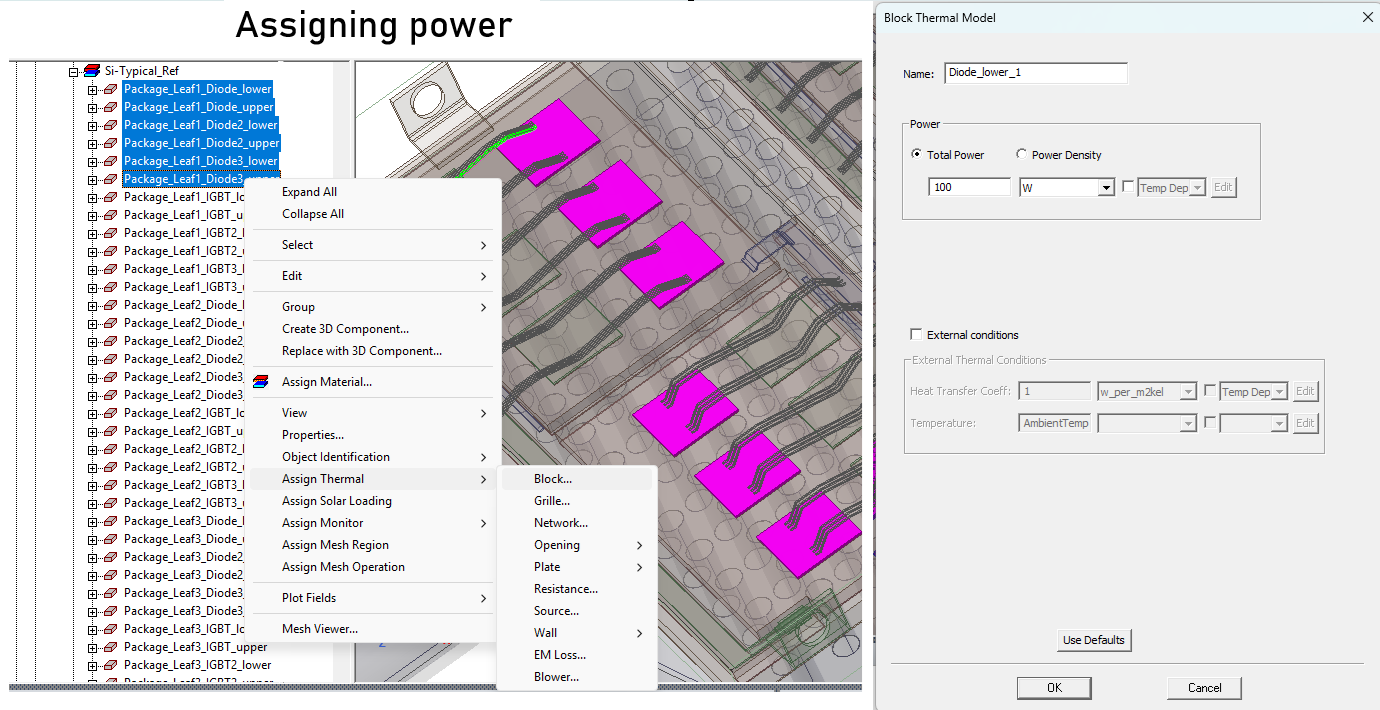

- Assign power dissipation values to the relevant modules
- Define flow inlet and outlet conditions for coolant
- Configure and refine mesh
- Set up solver parameters to initialize and execute the simulation

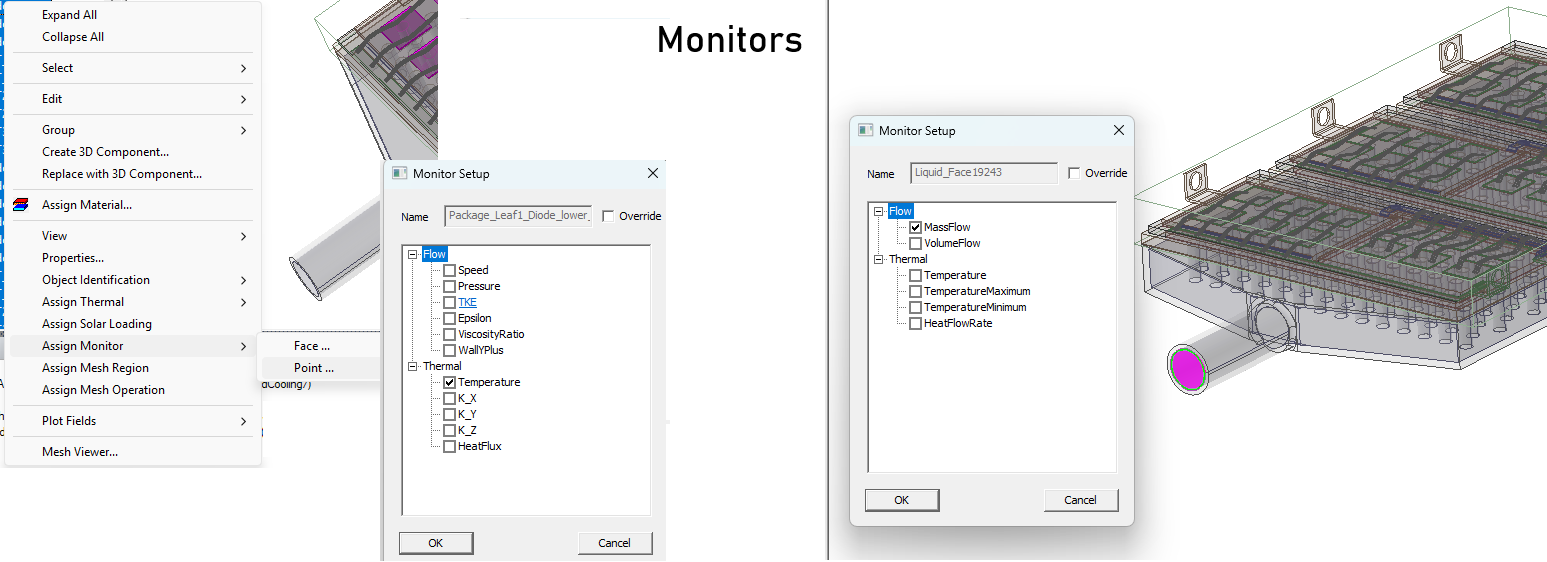

The global mesh region is edited to ensure adequate resolution, and mesh refinement is applied to power modules and critical components. Monitors are added to track simulation progress and convergence. defining mesh regions, setting up the solver, and running the solution. The solution setup includes specifying the maximum number of iterations, enabling the turbulent flow regime, and selecting the K-Omega SST model for highest accuracy in heat transfer and pressure drop predictions.
Video
This video demonstrates the modeling process of a liquid-cooled inverter in Ansys Icepak AEDT, showcasing the step-by-step approach for performing a conjugate heat transfer simulation. The results display temperature and pressure distributions, including detailed calculations of maximum and minimum temperatures for key components such as diodes and IGBTs.
Ansys Solution Benefits
Using Ansys Icepak for inverter cooling simulations offers several advantages. The software enables detailed analysis of heat transfer and fluid flow within complex geometries, ensuring accurate predictions of thermal performance. This results in more efficient cooling designs and enhances the reliability of inverters. The capability to perform both steady-state and transient simulations allows engineers to understand the thermal behavior of inverters under various operating conditions. Ansys Icepak's robust meshing features and advanced solver options, such as the K-Omega SST model, ensure high accuracy in simulation results, facilitating the optimization of cooling systems.
Ozen Engineering Expertise
Ozen Engineering Inc. leverages its extensive consulting expertise in CFD, FEA, optics, photonics, and electromagnetic simulations to achieve exceptional results across various engineering projects. Ozen Engineering leads in adopting advanced computational methods like GPU computing for high-quality CFD simulations. Equipped with expert teams and cutting-edge hardware, we help clients tackle modern CFD complexities, ensuring efficient and effective solutions.
We offer support, mentoring, and consulting services to enhance the performance and reliability of your systems. Trust our proven track record to accelerate projects, optimize performance, and deliver high-quality, cost-effective results for both new and existing water control systems. For more information, please visit https://ozeninc.com.
