Discover the cutting-edge techniques for simulating gas leaks and ensuring safety using Ansys Fluent.
Challenges
Gas leaks pose significant risks to both human safety and the environment. Detecting gas leaks early can prevent potential disasters, including explosions, fires, and toxic exposures. Effective gas leak detection systems are crucial for industries such as oil and gas, chemical processing, and residential infrastructure.
Modeling gas leaks presents several challenges, including the complexity of gas dynamics and the varying conditions under which leaks can occur. Factors such as pressure, temperature, and gas composition can significantly influence the behavior of a gas leak.
Another challenge is the accurate simulation of gas dispersion in different environments, which requires sophisticated computational tools and expertise. Understanding the interaction of leaked gas with the surrounding environment is critical for developing effective detection and mitigation strategies.
Engineering Solution
Advanced engineering solutions are required to address the challenges of gas leak detection. Computational Fluid Dynamics (CFD) tools like Ansys Fluent provide a robust platform for simulating gas leaks and analyzing their impact.
Methods
A representative generic geometry model is presented in Figure 1 with a smaller rectangular gas (He) tank and surrounding cylindrical chamber. It is assumed that He has slightly higher pressure than atmosphere and leaks out to the vacuumed cylindrical chamber. An inert gas (n2) is provided to the chamber for accelerating the He gas to the detector. A species transport option was turned on with the default settings.

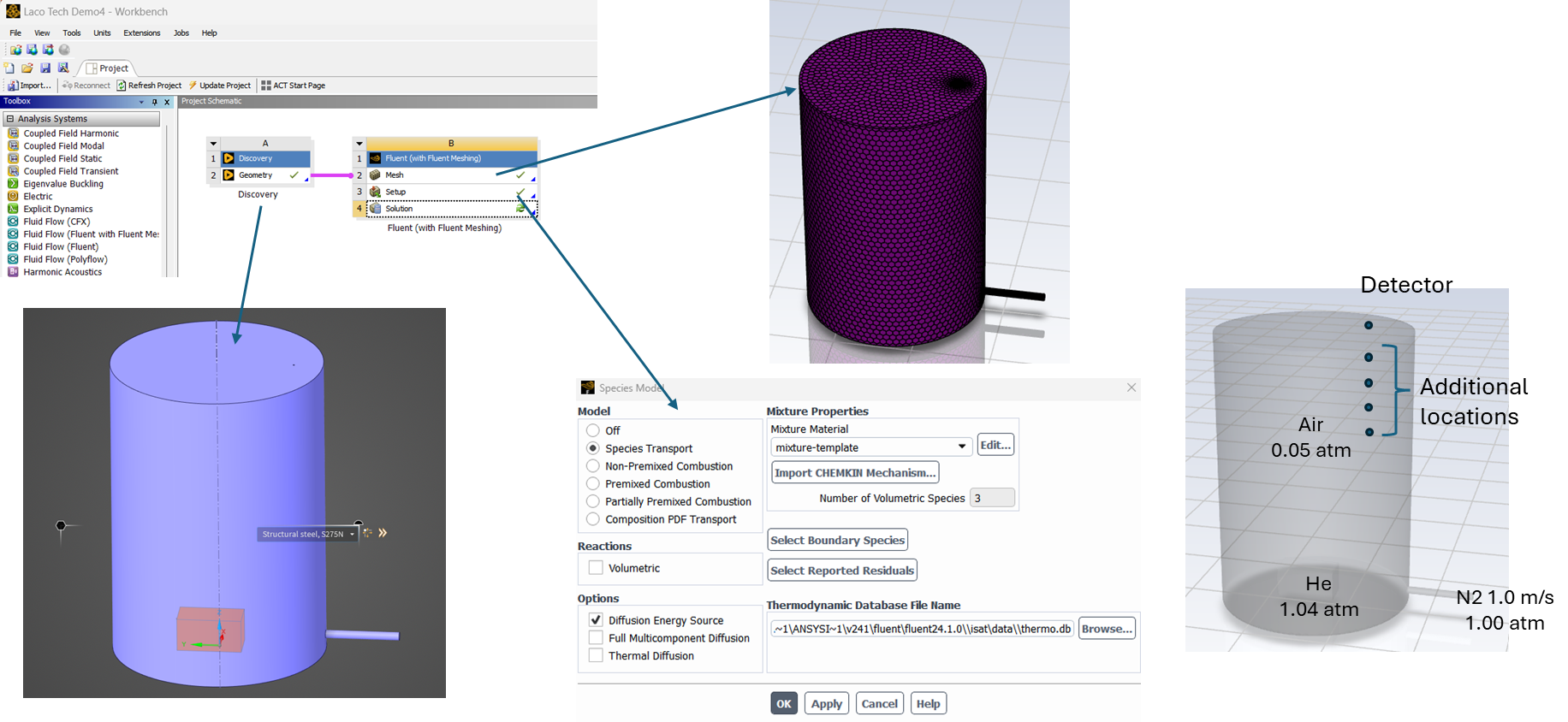

Figure 1. The geometry model, and model settings
The geometry model was generated with SpaceClaim, and connected to the Fluent module in Ansys Workbench.
Results
The amount of time that the leaked He reaches to the detector and/or different locations in the chamber could be of interest. For that purpose, additional detection locations were utilized and the maximum He content at each time step was monitored (Figure 2).
One can confirm that, the He gas reaches the lower detection point earlier compared to the others. Overall, based on the model settings, the detection is very fast (< 0.1 s).

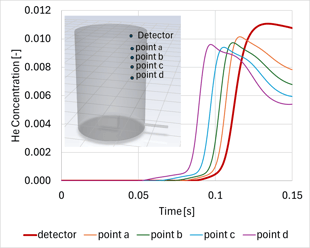

Figure 2. He concentration profiles
The other way of monitoring the leak would be generating animations from the simulation data. For example, the animation below indicates the gas distribution on a representative cross-sectional plane:
The other animation below represents the distribution of the "small" amount of He concentration (< 0.01) with iso-surface:
Similarly, the streamlines colored with a "small" amount of He concentration demonstrates the complicated flow field:
Ansys Solution Benefits
Using Ansys Fluent for gas leak detection offers numerous benefits. It enhances safety by providing accurate predictions of leak behavior and potential hazards. This allows for timely intervention and preventive measures, reducing the risk of accidents.
Ansys Fluent offers several key features that make it ideal for gas leak modeling. These include advanced turbulence models, multi-species transport capabilities, and detailed chemical reaction modeling. These features allow for precise simulation of gas behavior and dispersion patterns.
Moreover, Ansys Fluent provides extensive post-processing methods to optimize the design and placement of gas detection systems, ensuring maximum coverage and efficiency.
Ozen Engineering Expertise
Ozen Engineering Inc. leverages its extensive consulting expertise in CFD, FEA, optics, photonics, and electromagnetic simulations to achieve exceptional results across various engineering projects, addressing complex challenges like multiphase flows, erosion modeling, and channel flows using Ansys software.
We offer support, mentoring, and consulting services to enhance the performance and reliability of your particle flow system. Trust our proven track record to accelerate projects, optimize performance, and deliver high-quality, cost-effective results for both new and existing systems. For more information, please visit https://ozeninc.com.
