Challenges in Modeling Power Generation Cycle
Modeling power generation cycles, especially for combined cycle power plants, involves several challenges that can impact efficiency and accuracy. One significant challenge is the complexity of integrating multiple systems and processes, such as gas turbines, steam turbines, heat recovery steam generators, and various auxiliary components. This complexity requires precise modeling to ensure that each system's interdependencies and dynamic behaviors are accurately represented.
Another challenge is dealing with the variability in operational conditions. Power plants must operate efficiently across a range of loads and environmental conditions, necessitating robust models that can predict performance under different scenarios. Additionally, maintaining compliance with stringent regulatory and safety standards adds another layer of complexity to the modeling process. The engineers must ensure that their models not only optimize performance but also adhere to all applicable regulations.
Power Plant Modeling with Flownex
Flownex simulation environment provides engineers with advanced tools to model, analyze, and optimize fluid and thermal systems in power plants. It enables detailed simulation of heat transfer, fluid flow, and control dynamics, supporting performance evaluation, modification assessment, and root cause analysis. With Flownex, power plant engineers can accurately size components and systems, define optimal operating conditions across diverse load scenarios, calculate critical parameters, including flow rates, temperature profiles, pressure drops, and power consumption, and implement proven control strategies. Flownex integrates plant components into a unified model, enabling end-to-end simulation of the entire cycle. Its advanced solvers ensure accurate results, helping engineers optimize design, improve efficiency, and reduce costs.
Flownex also offers advanced features such as transient analysis, which is essential for understanding the dynamic behavior of power plant cycles. This capability enables engineers to simulate start-up, shutdown, and load-following operations, ensuring that the plant operates efficiently and reliably across various scenarios. Additionally, Flownex's user-friendly interface and extensive library of components streamline the modeling process, allowing engineers to focus on optimizing plant performance.
Combined Cycle Power Plants
Combined cycle power plants are designed to maximize efficiency by combining two thermodynamic cycles: the Brayton cycle for the gas turbine and the Rankine cycle for the steam turbine. In a typical combined cycle power plant, a gas turbine generates electricity and produces hot exhaust gases. These exhaust gases are then utilized to produce steam in a heat recovery steam generator (HRSG). The steam generated drives a steam turbine, which in turn produces additional electricity.
The integration of these two cycles allows combined cycle power plants to achieve higher efficiency compared to traditional single-cycle power plants. By leveraging the waste heat from the gas turbine, combined cycle plants can convert more of the fuel's energy into electricity, reducing fuel consumption and emissions. Understanding the complexity of these cycles and their interactions is crucial for optimizing the performance and efficiency of combined cycle power plants.
Flownex Modeling of Combined Cycle Power Plant
Flownex excels in modeling the complex interactions within combined cycle power plants. Its ability to simulate both the Brayton and Rankine cycles in a single environment allows engineers to analyze the entire power generation process holistically. With Flownex, engineers can simulate the performance of gas turbines, HRSGs, steam turbines, and auxiliary systems under various operating conditions, identifying opportunities for efficiency improvements.

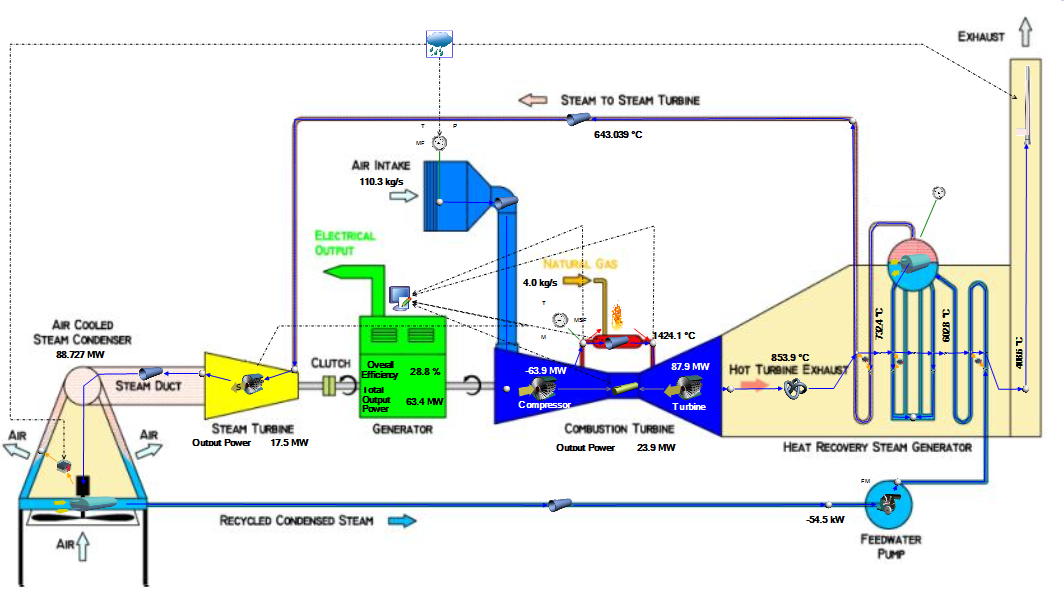

Flownex network model for a combined-cycle power plant
This video demonstrates how to run steady and transient simulations of the above Flownex flow network model for a combined cycle power plant, and how to optimize the heat recovery system to achieve a zero energy source for the boiler drum.
In the second video, you will learn how to change the fuel flow rate of the power plant and find the total output power and the overall efficiency of the plant's combined cycle in different weather conditions.

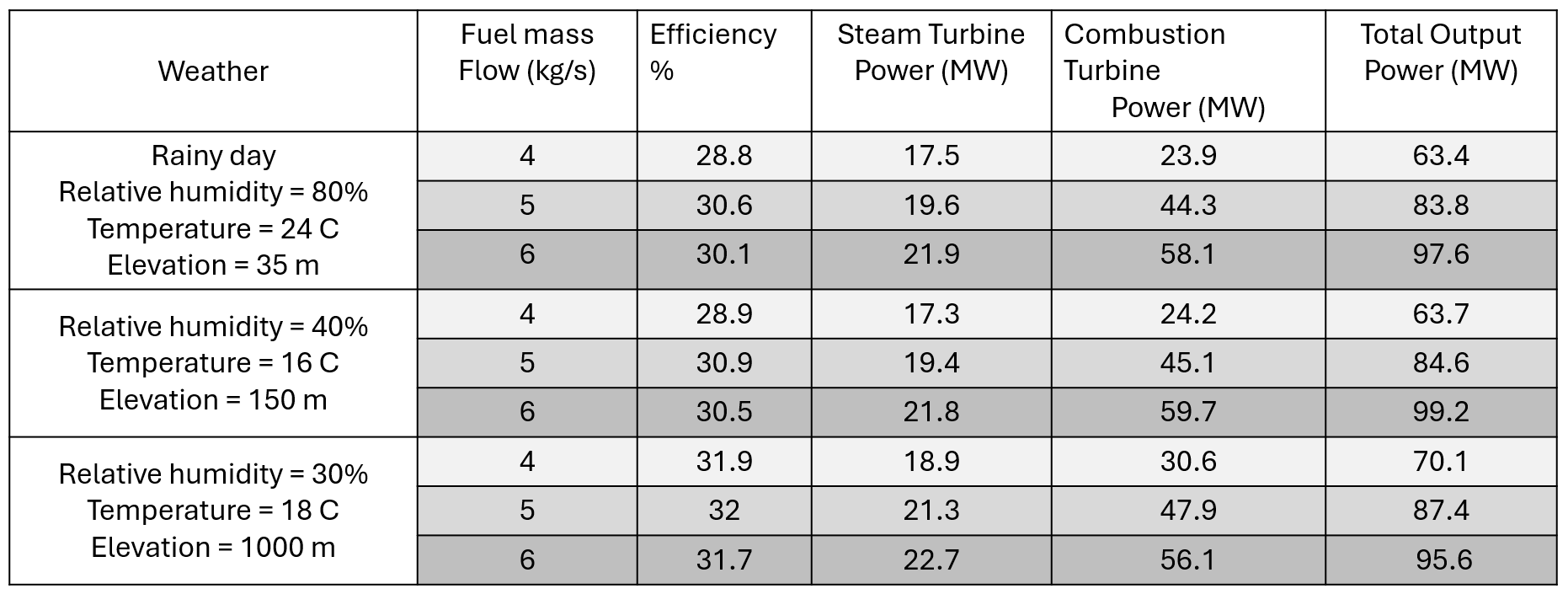

This table summarizes the power outputs and overall efficiency of the power plant when changing the fuel rate and different ambient conditions.
Ozen Engineering Expertise
Ozen Engineering Inc. leverages its extensive consulting expertise in CFD, FEA, optics, photonics, and electromagnetic simulations to achieve exceptional results across various engineering projects, addressing complex challenges like multiphase flows, erosion modeling, and channel flows using Ansys software. As an elite partner for ANSYS and other leading simulation tools, we provide comprehensive consulting, training, and technical support services tailored to the unique needs of the power generation industry.
Our team of experienced engineers specializes in using Flownex for system-level simulations, ensuring that our clients can achieve accurate and reliable results. From initial model development to detailed analysis and optimization, we provide end-to-end support to help power plant operators enhance efficiency, reduce costs, and meet regulatory requirements. Partner with Ozen Engineering, Inc. to unlock the full potential of your combined cycle power plant with Flownex software. For more information, please visit https://ozeninc.com.
