Master the art of setting up RGP tables in Ansys CFX Pre to optimize your simulation accuracy and efficiency.
Challenges
In the realm of computational fluid dynamics (CFD), RGP (Real Gas Properties) tables are essential for accurately simulating the behavior of fluids under varying conditions. These tables provide detailed thermodynamic properties that are crucial for high-fidelity simulations.
RGP tables are used to input real gas properties into the simulation environment. They help in defining how gases behave under different temperature and pressure conditions, which is critical for processes involving compressible flows, chemical reactions, and phase changes.
Without accurate RGP tables, simulations can produce erroneous results, leading to suboptimal designs and potential failures in manufacturing processes. Thus, understanding and leveraging RGP tables effectively is paramount for achieving precise and reliable simulation outcomes in Ansys CFX Pre.
Engineering Solution
It is now conveniently available within Ansys CFX Pre to generate RGP tables. For that, the step-by-step process is as follows.
Step-by-Step Process to Create and Configure RGP Tables
1. Open Ansys CFX Pre. It is not necessary to load your simulation project.

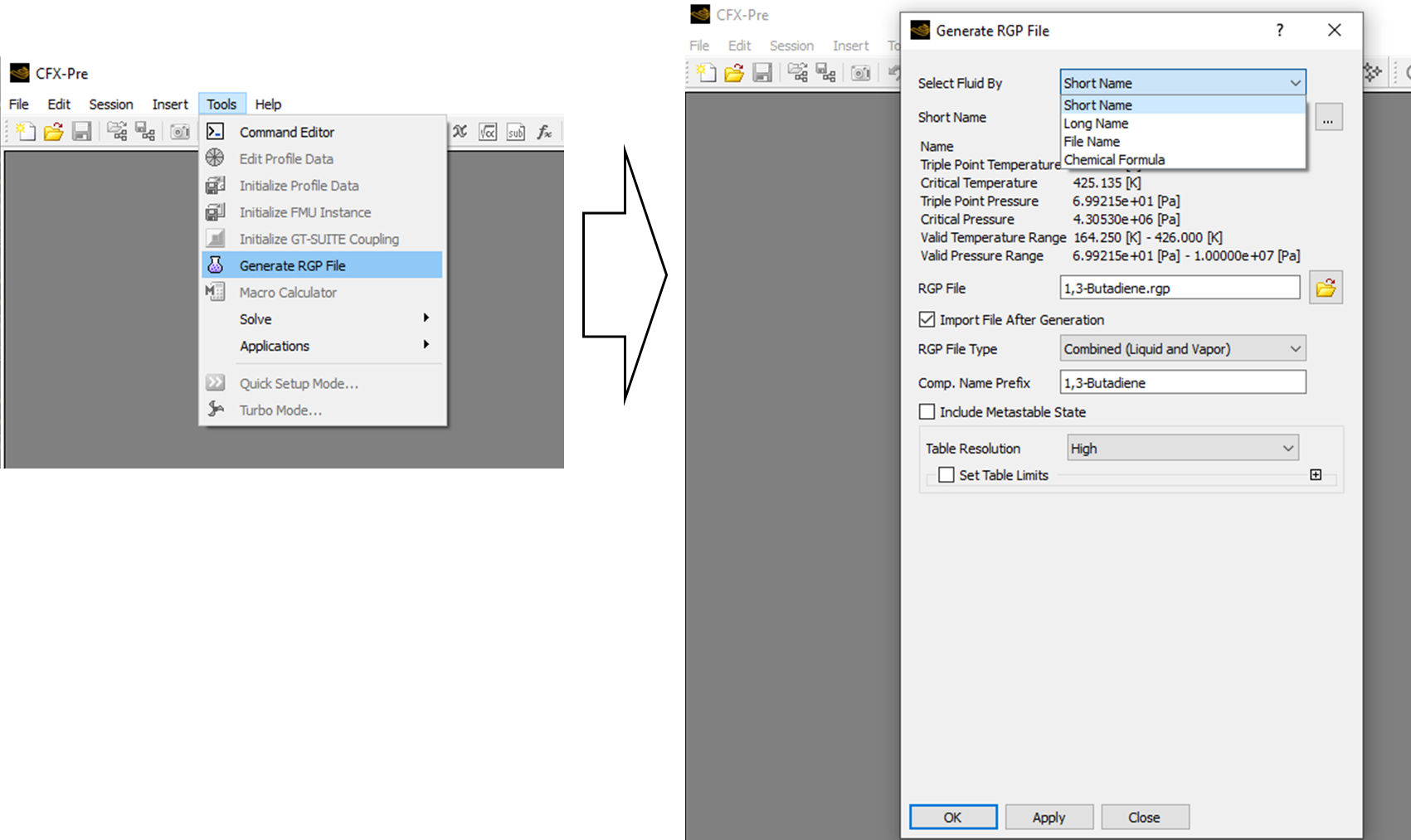

2. Navigate to the 'Tools' section and select 'Generate RGP table'. This will open a new window where the options are given to select the fluid you want to create the table for. The options are 'Short Name', 'Long Name', 'File Name', and 'Chemical Formula'.

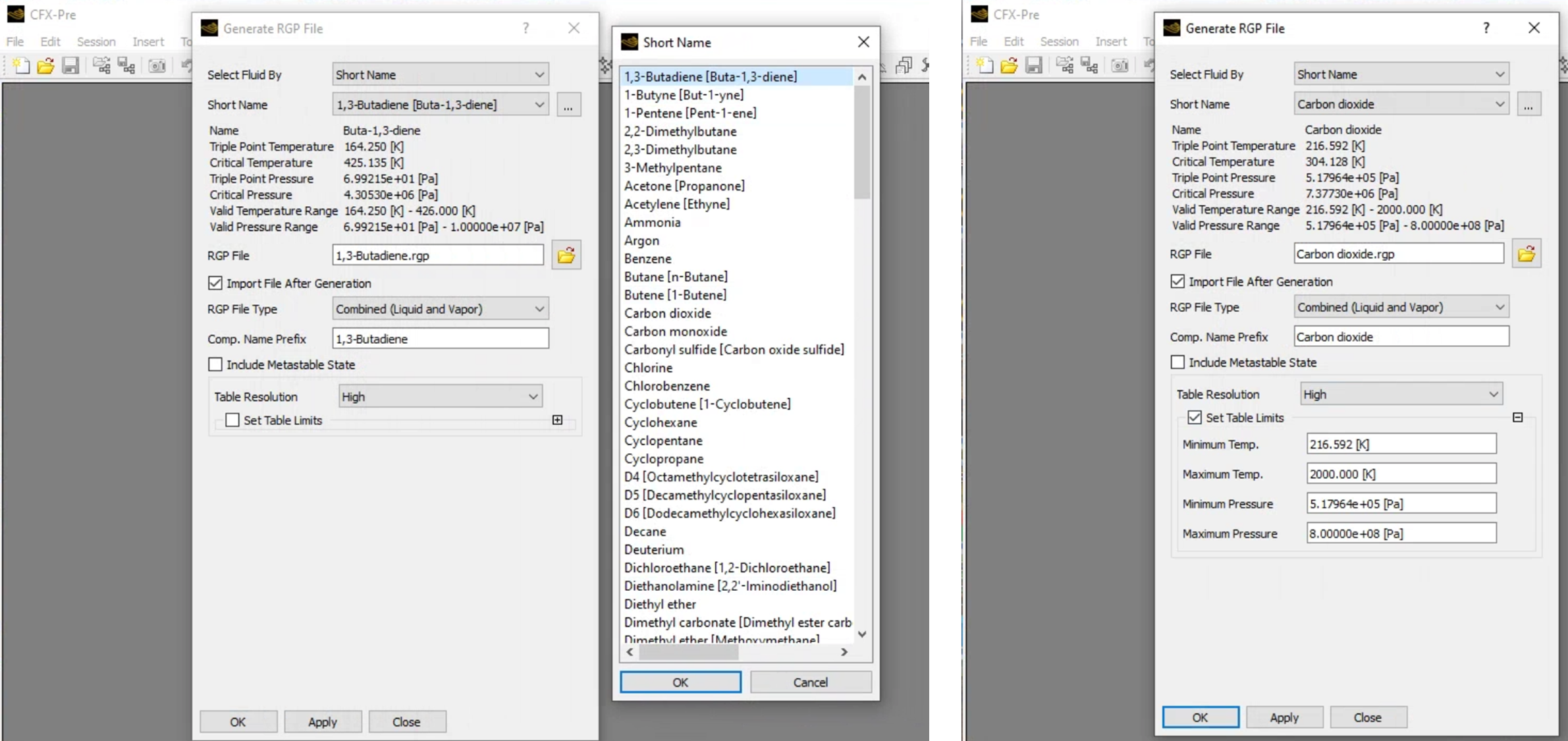

3. In the 'Short Name' option, there are various fluids listed. As an example, selection of 'Carbon dioxide' is shown below (left). Notice that the name of the table, and component name are correspondingly selected (user can change!). Also note that, the default critical data are shown. User is given an option to change the default limits. For that, click 'Set Table Limits', and modify the related temperatures and pressures (right).

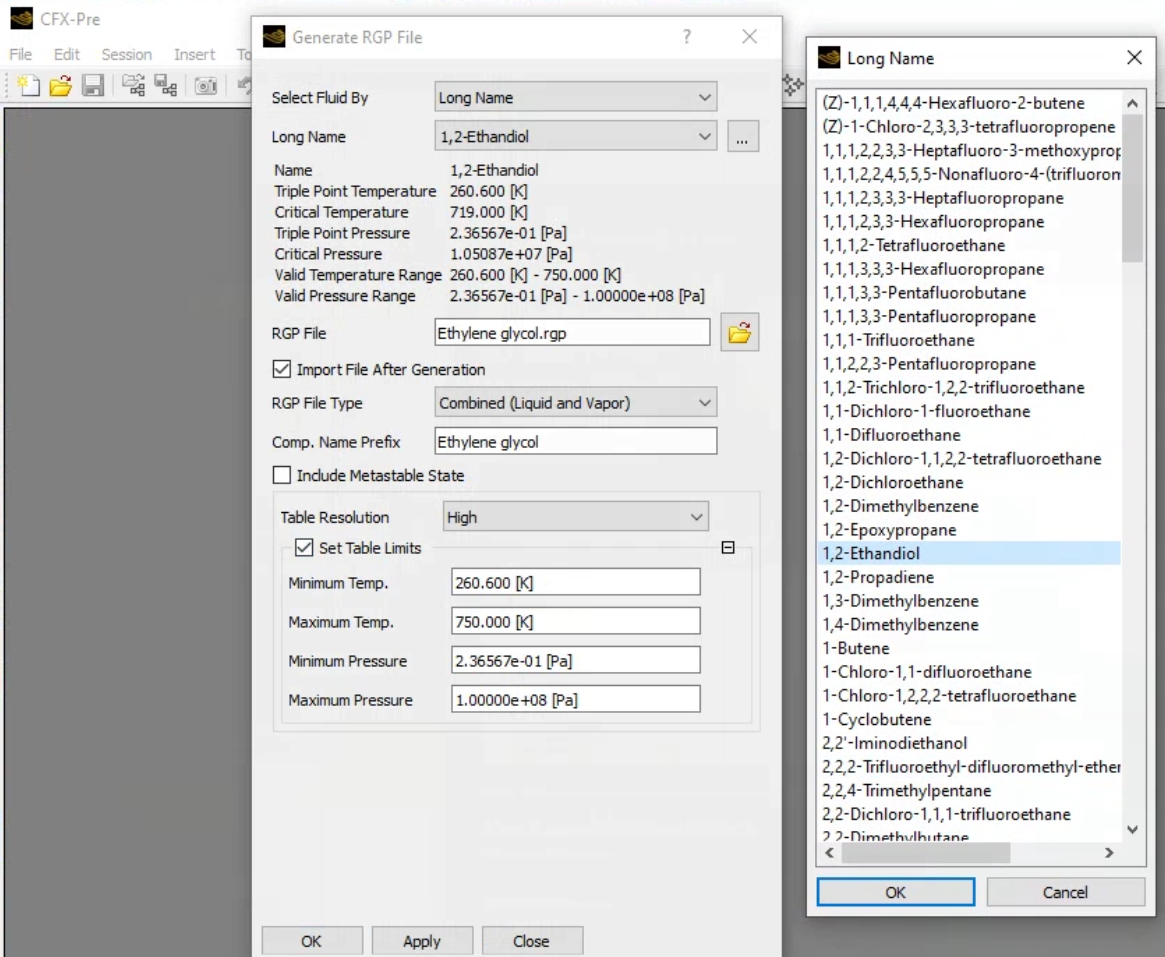

4. In the 'Long Name' option, various fluids are listed in different form.

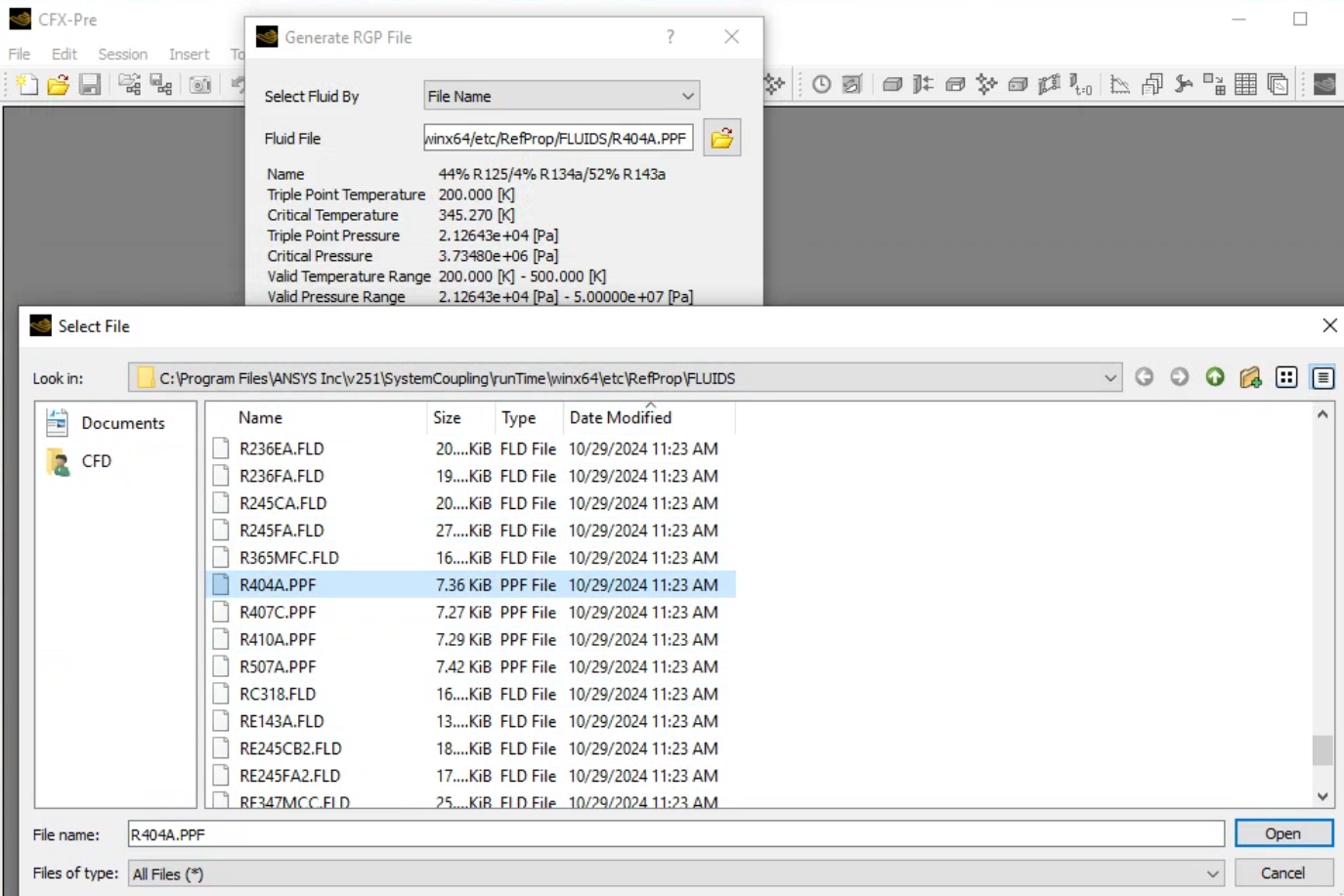

5. In the 'File Name' option, the user can select compound fluids. A refrigerant fluid R404A is demonstrated below.

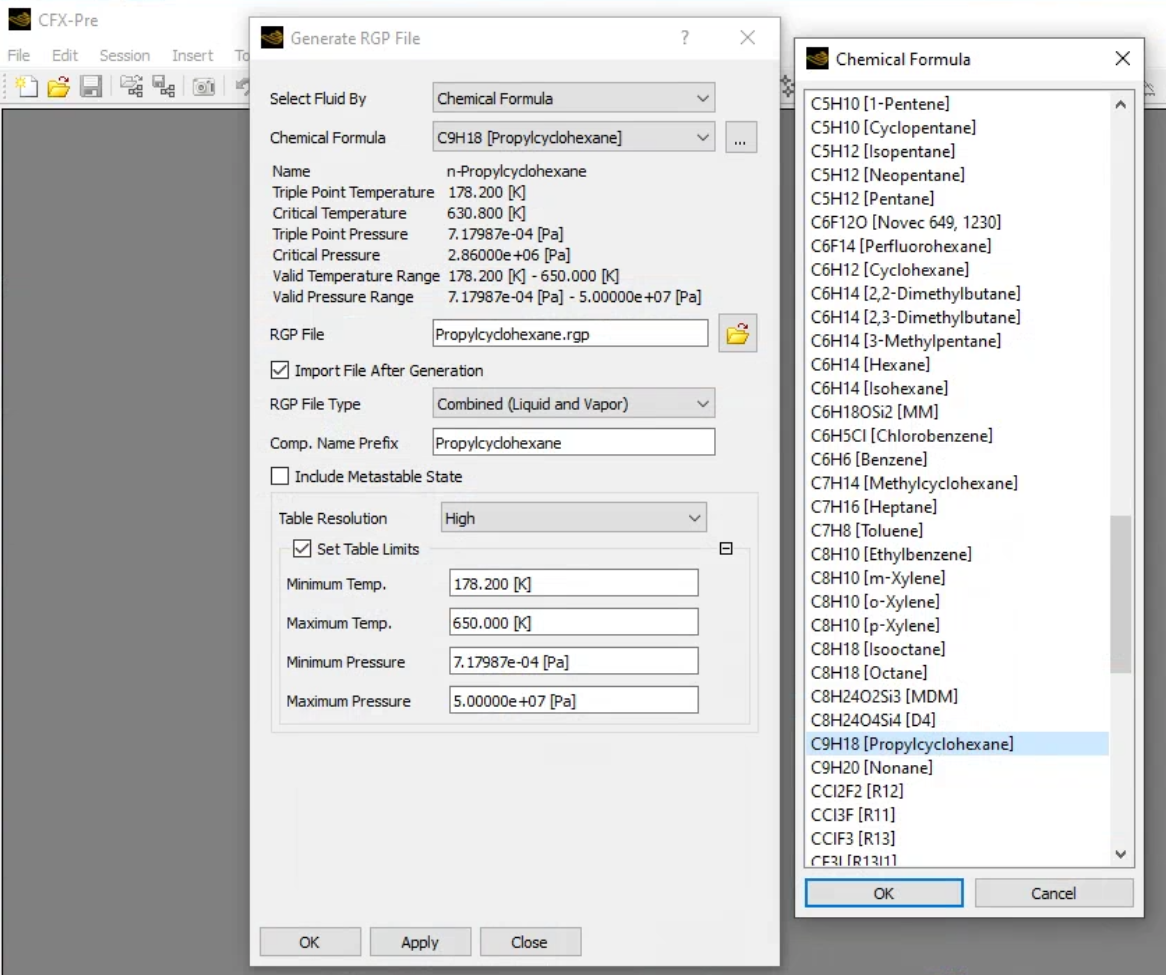

6. In the 'Chemical Formula' option, similar to the others, there are variety of chemicals listed.
7. After making all the selections, clicking 'OK' generates a single RGP table with combined liquid and vapor data.

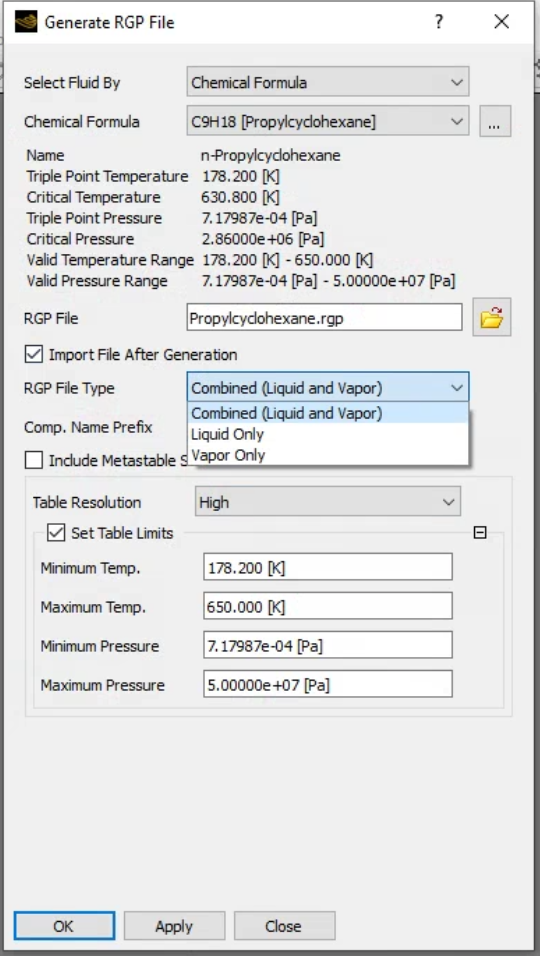

8. The user is given an option to generate separate RGP tables for liquid and vapor forms.
Benefits
Regularly updating your RGP tables with the latest and most accurate thermodynamic data is available. This is particularly important when simulating new materials or under different operating conditions.
Additionally, carefully following the software’s guidelines for table formatting to avoid import errors ensures seamless integration within the problem set-up.
