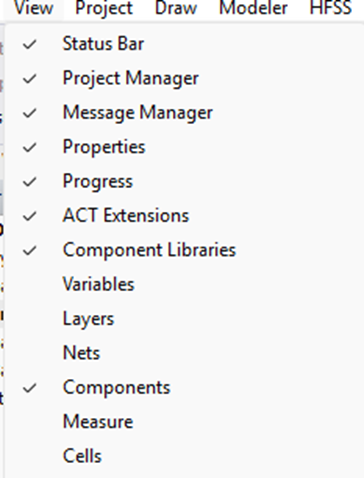

HFSS is equipped with many tools to help RF designers design different kinds of components, filters, matching networks, and antennas. One of these tools is the ACT extension. From View>ACT Extension.

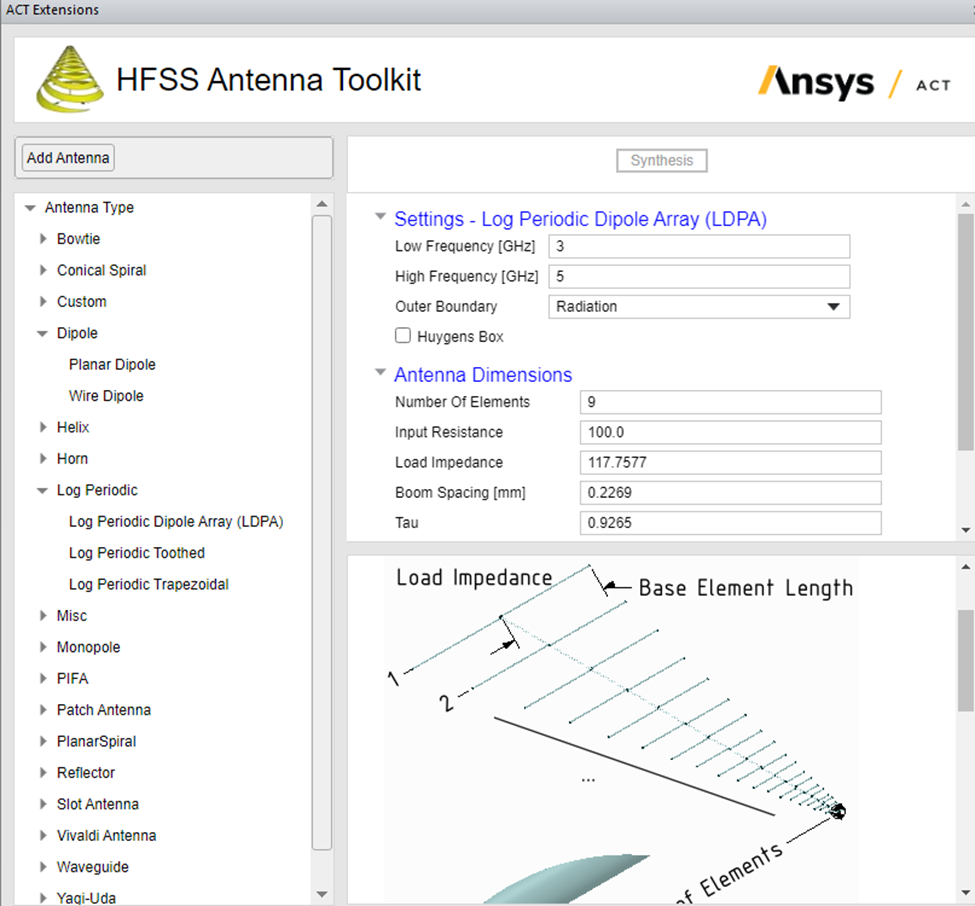

In the ACT extension, there is a section related to antennas. The user can use the ACT Wizard to design many antennas. One of these antennas is the log-periodic dipole antenna (LPDA). However, the tool does not allow for the synthesis of the antenna, so the user is limited to the given case.

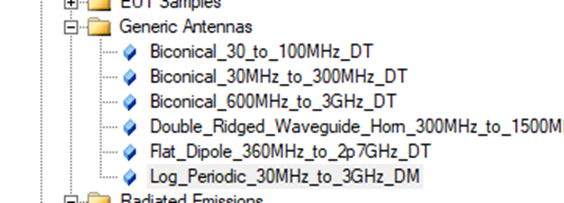

Also HFSS has the component Libraries. Another location where users can find more components. View>Component Libraries. Additionally, this library features only one design.
This blog discusses how to create a script to design a log periodic antenna for any desired band. The script is written in PyAEDT format. HFSS can read many types of scripts, such as Python, IronPython, and PyAEDT. PyAEDT has more capabilities than IronPython and offers a greater number of functions. Therefore, the focus is on developing a PYAEDT program for this purpose.
PADL antennas have well-known formulae. We will be using these formulae to design the antenna. The designer can run HFSS and parametrize the antenna for further optimization.
The formulae of the log periodic antenna are:
L_max (longest dipole) = c/(2*Fmin)
L-min(shortest dipole) = c/(2*Fmax)
Where Fmin and Fmax are the limits of the band of interest.
N (number of elements) = int (max (log(L_min/L_max)/log(tau)))+1
Where tau stands for taper, and it is between 0.8-0.95.
sigma is the ratio of the spacing to the wavelength al Fmin

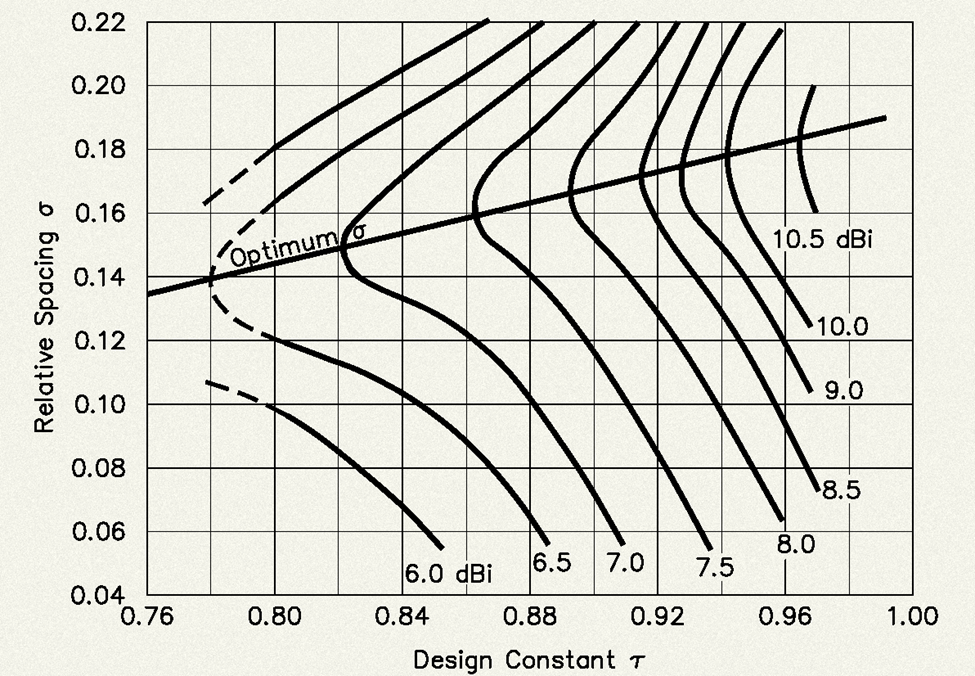

The antenna directivity is a function of tau and sigma. Decreasing sigma will decrease the antenna length, but decreasing tau will reduce both the length of the antenna and the number of elements (for unchanged spacing)
Reference: https://hamwaves.com/lpda/en/index.html
The size and spacing of the booms are related to the impedance of the antenna. The designer needs to run simulations with HFSS to assemble a structure that gives the right impedance without the dipoles. Some designs change the spacing between the two booms, with a wider one at the longest dipoles and a narrower one at the shortest dipoles.
Constructing the PyAEDT codes:
First, start by initializing the codes:
from pyaedt import Hfss
import math
Next launch HFSSL
hfss = Hfss(projectname="LPDA", designname="LPDA", solution_type="DrivenModal", new_desktop_session=True)
Define the main parameters. These parameters need to be defined in the codes before running it because the codes have to perform many calculations to derive the dimensions of the antenna:
f_min = 300e6 # Hz
f_max = 3e9 # Hz
c = 3e11 # mm/s
tau = 0.9
sigma = 0.05
r = 1 # mm
Zshift = 3 (Pitch between the two booms and the dimension of the boom's cross-section) # mm
Zgap = 1 (spacing between the two booms) # mm
Now we start the calculation of the dipoles and the other dimensions:
L_max = c / (2 * f_min)
L_min = c / (2 * f_max)
N = int(math.ceil(math.log(L_min / L_max) / math.log(tau))) + 1
x_pos = 0 # X-position start
# Create Dipoles
dipole_names = []
for n in range(N):
L_n = L_max * (tau ** n)
d_n = sigma * L_n
half_len = L_n / 2
name1 = f"Dipole{n}_1"
name2 = f"Dipole{n}_2"
hfss.modeler.primitives.create_cylinder(cs_axis="Y",
position=[x_pos, -half_len, 0],
radius=r,
height=L_n,
name=name1,
matname="copper")
hfss.modeler.primitives.create_cylinder(cs_axis="Y",
position=[x_pos, half_len, 0],
radius=r,
height=-L_n,
name=name2,
matname="copper")
dipole_names.extend([name1, name2])
x_pos += d_n

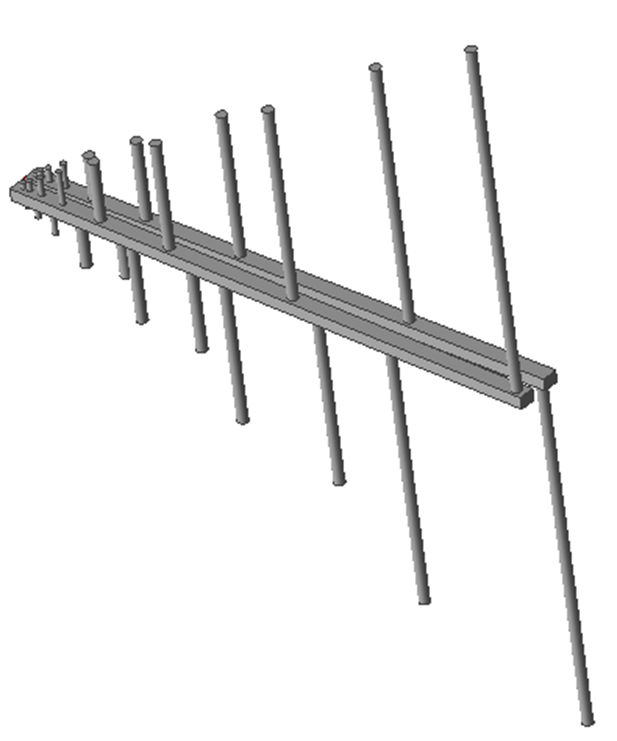

The above codes produce a log-periodic antenna with the dipoles attached to a single boom. We split them into two, then we move them by Zshift:
split_names = hfss.modeler.split(dipole_names, plane="ZX")
moved_objects = [name for name in split_names if "_Split1" in name]
hfss.modeler.move(moved_objects, [0, Zshift, Zshift])
We create the booms now:
Startofthebar = -r - Zshift
Lengthofthebar = x_pos + 2 * (r + Zshift)
StartofGap = (Zshift - Zgap) / 2
box1 = hfss.modeler.primitives.create_box(
[Startofthebar, 0, -(Zshift-Zgap)/2],
[Lengthofthebar, Zshift, Zshift-Zgap],
name="Box1",
matname="vacuum"
)
hfss.modeler.change_material("Box1", "copper")
hfss.modeler.duplicate_along_line("Box1", [0, 0, Zshift], 2)
Now that we have an antenna, we need to add a port:
Endofthebar = x_pos + (r + Zshift)
HZshift = Zshift / 2
HZgap = Zgap / 2
EndofGap = StartofGap + Zgap
rectangle = hfss.modeler.primitives.create_rectangle(
position=[Endofthebar, 0, StartofGap],
dimension_list=[Zshift, Zgap],
cs_axis="X",
name="Rectangle1",
matname="vacuum"
)
Assign lumped port:
hfss.create_lumped_port_to_sheet(sheet_name="Rectangle1",
axisdir="Z",
impedance=50,
start_point=[Endofthebar, HZshift, StartofGap],
end_point=[Endofthebar, HZshift, EndofGap])
And finally, we can close the project:
hfss.save_project()
hfss.release_desktop()
The user has an antenna designed for the required bandwidth. What if we want to parametrize the antenna to optimize it further? We want to optimize the dipole lengths while keeping the first and last ones fixed. So, we change the codes that create the dipoles to the following:
# Create Dipoles
dipole_names = []
for n in range(N):
L_n = L_max * (tau ** n)
d_n = sigma * L_n
half_len = L_n / 2
name1 = f"Dipole{n}_1"
name2 = f"Dipole{n}_2"
name3= f"DipoleLength{n}"
hfss[‘name3’] = L_n
hfss.modeler.primitives.create_cylinder(cs_axis="Y",
position=[x_pos, -half_len, 0],
radius=r,
height=”name3”,
name=name1,
matname="copper")
hfss.modeler.primitives.create_cylinder(cs_axis="Y",
position=[x_pos, half_len, 0],
radius=r,
height=”-name3”,
name=name2,
matname="copper")
dipole_names.extend([name1, name2])
x_pos += d_n

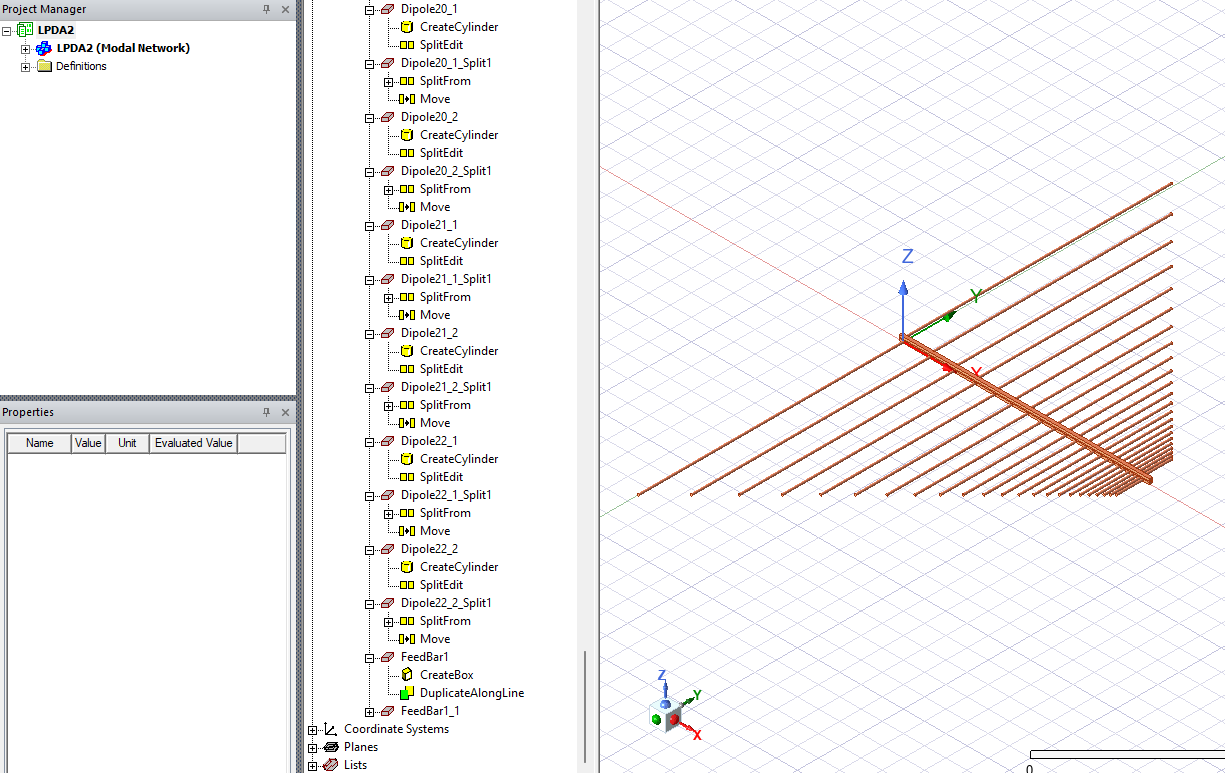

The final model, with parameterized dipoles, is shown below.
Downloadable Resources
PyAEDTFile
