The Challenges of Battery Cell Design for Potential Field
Battery cell potential field simulations play a crucial role in the battery manufacturing industry. They help in predicting the performance and behavior of battery cells under various conditions. This predictive capability is essential for optimizing the design and operation of batteries, ensuring they meet the required standards of efficiency, safety, and longevity.
Moreover, these simulations can identify potential issues early in the design phase, reducing the risk of costly recalls and failures. They also enable manufacturers to experiment with different materials and configurations virtually, saving time and resources compared to physical prototyping.
Engineering Solution
The Fluent battery model offers an advanced computational framework that significantly enhances the capability of battery cell simulations. By incorporating electro-thermal models, it provides a more comprehensive view of the potential field within a battery cell.
This level of detail allows for additional predictions of cell behavior under different operating conditions, leading to better-performing and more reliable batteries. The Fluent model also integrates seamlessly with other simulation tools, enabling a holistic approach to battery design and analysis.
The method used by the Fluent battery model to solve the potential field of a battery cell is to solve the Potential Field equation:
The thermal engineer can understand the potential field to be analogous to the relationship between temperature and conduction heat transfer. In the electrical situation, the potential voltage is similar to temperature, the current is similar to the heat transfer, and the electrical conductivity is similar to the thermal conductivity. Potential field simulations can help the thermal engineer understand the resistance to current flow through a battery cell while performing thermal simulations to understand the temperature behavior.
Fluent Battery Simulation Method
Setting up battery cell simulations with Fluent in this discussion involves several steps. These steps include a thought map, a product map, and Fluent case set up.

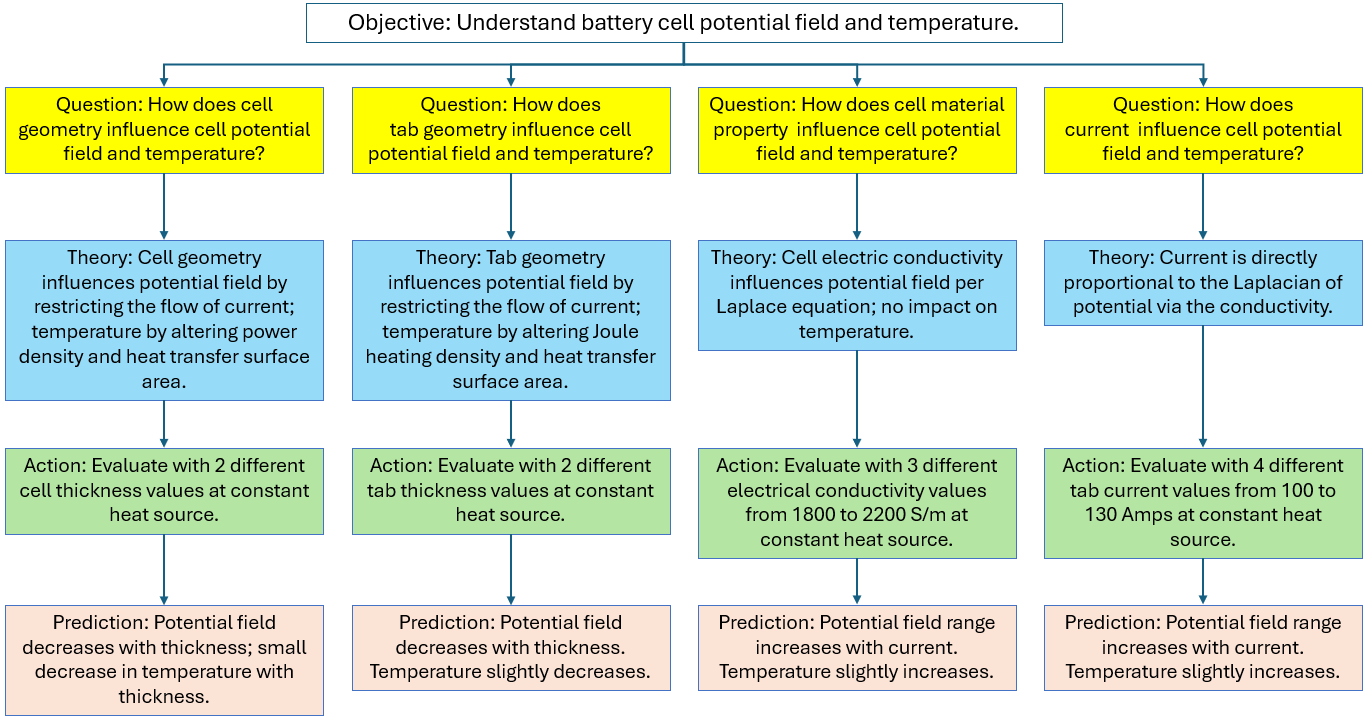

Thought Map: A thought map of the battery cell is generated to organize and represent ideas, concepts, or information in a structured way. The thought map below shows the objective of the simulation study and questions asked to address the objective. Each question is followed by a theory, action, and prediction to address each question. Results would also be added to the bottom of each branch as they are generated.

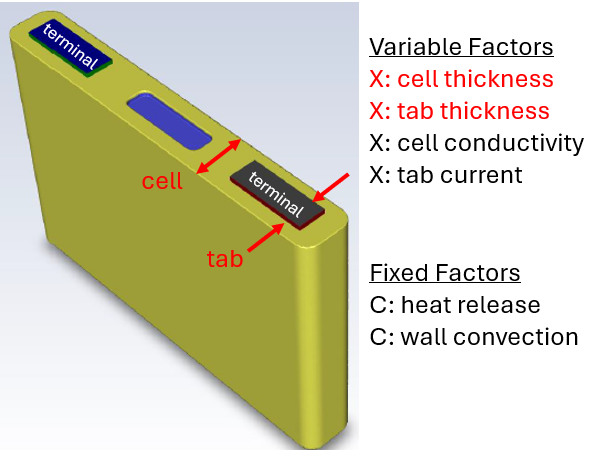

Product Map: A product map of the battery cell is generated to organize and categorize product features. The product map indicates design factors that correspond to theories/actions in the thought map. The map below shows an example battery cell with a tab at each cell terminal.

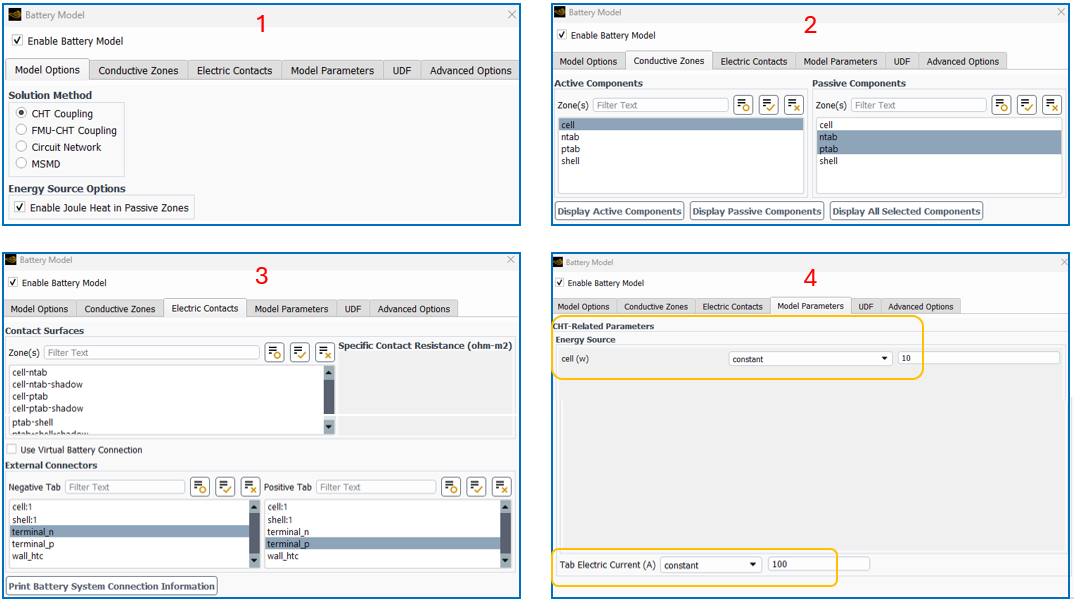

Fluent Simulation: Fluent models are generated per the studies produced by the thought map. Inputs pertaining to the battery are set up using the Battery Model. The simulations use CHT Coupling with an active cell and passive tabs. The active cell releases constant thermal energy, and the current is set between the two terminals. The image below shows the sequence of steps for populating inputs for the battery model.
The simulation calculations are executed to generate the results, focusing on potential fields and temperature distribution. Design treatments data are analyzed to answer the theory questions and confirm predictions.
Fluent Battery Simulation Results

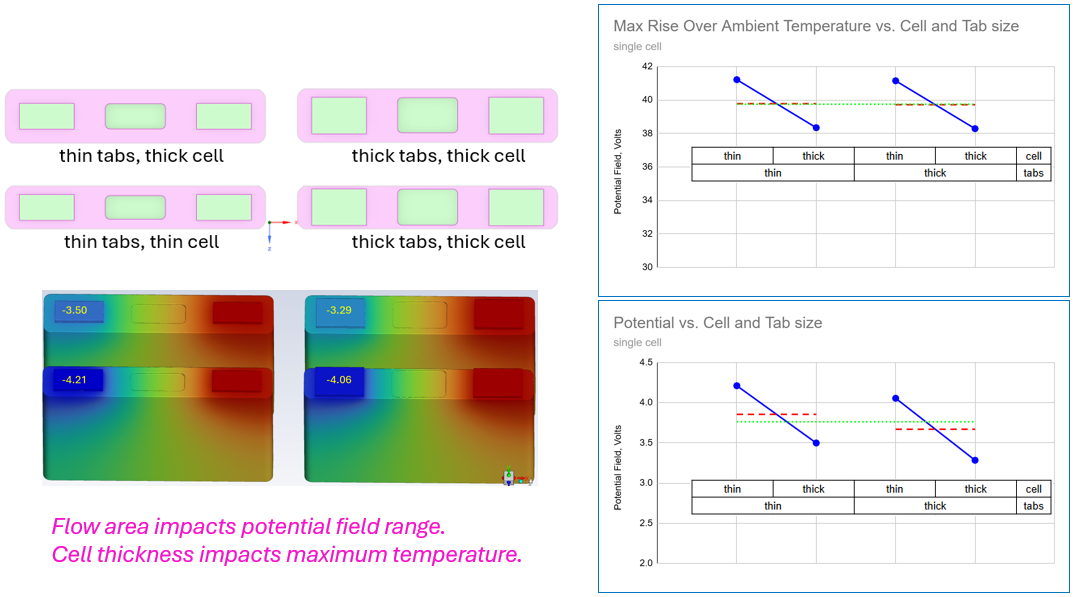

Cell and Tab Geometry: The battery cell and tab geometry simulations are combined into a 2-factor full factorial DOE. The cell conductivity, heat release, and tab current are held fixed while the thicknesses of the cell and tabs are varied. A convective boundary condition is used for all external walls. The results below indicate that the flow area for current impacts the potential field. As thicknesses increase the range of the potential field decreases. Only the thickness of the cell impacts the maximum temperature because of the difference in external surface heat transfer. Rise over ambient temperature is the temperature minus the ambient temperature.

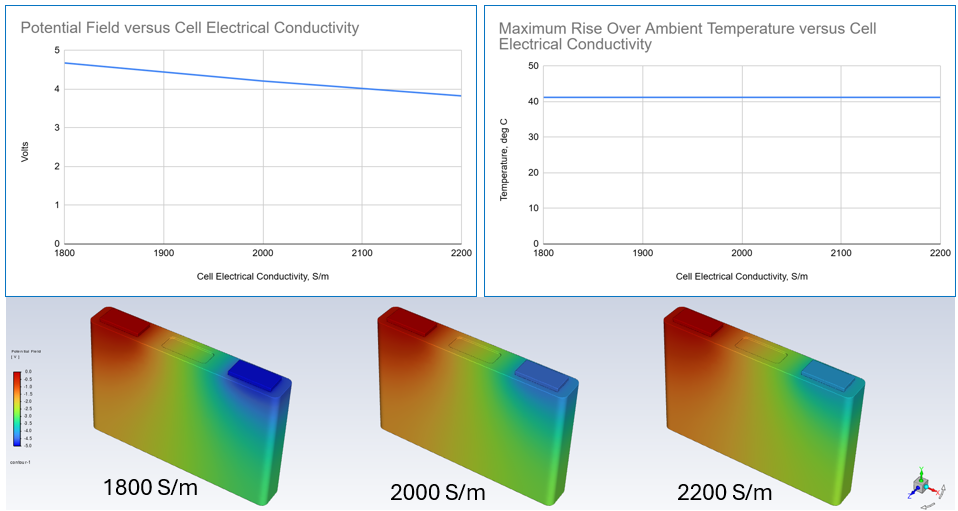

Cell Electrical Conductivity: The battery cell material electrical conductivity is varied. The cell geometry, heat release, and tab current are held fixed. A convective boundary condition is used for all external walls. The results below indicate that the electrical conductivity impacts the potential field. As conductivity increases the range of the potential field decreases. The cell electrical conductivity has very little impact on cell maximum temperature.

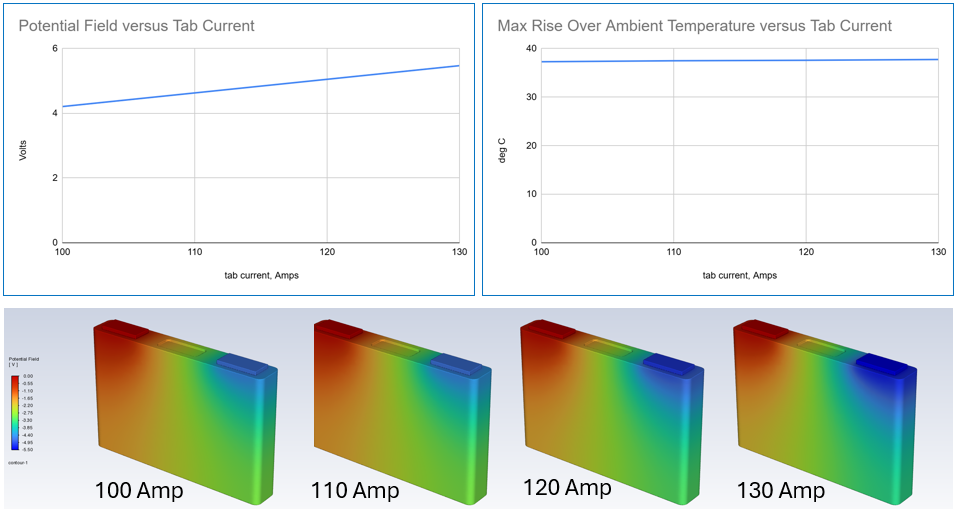

Tab Current: The battery tab current is varied from 100 to 130 Amps. The cell geometry, heat release, and electrical conductivity are held fixed. A convective boundary condition is used for all external walls. The results indicate that the tab current impacts the potential field. As current increases the range of the potential field increases. The tab current has very little impact on cell maximum temperature.

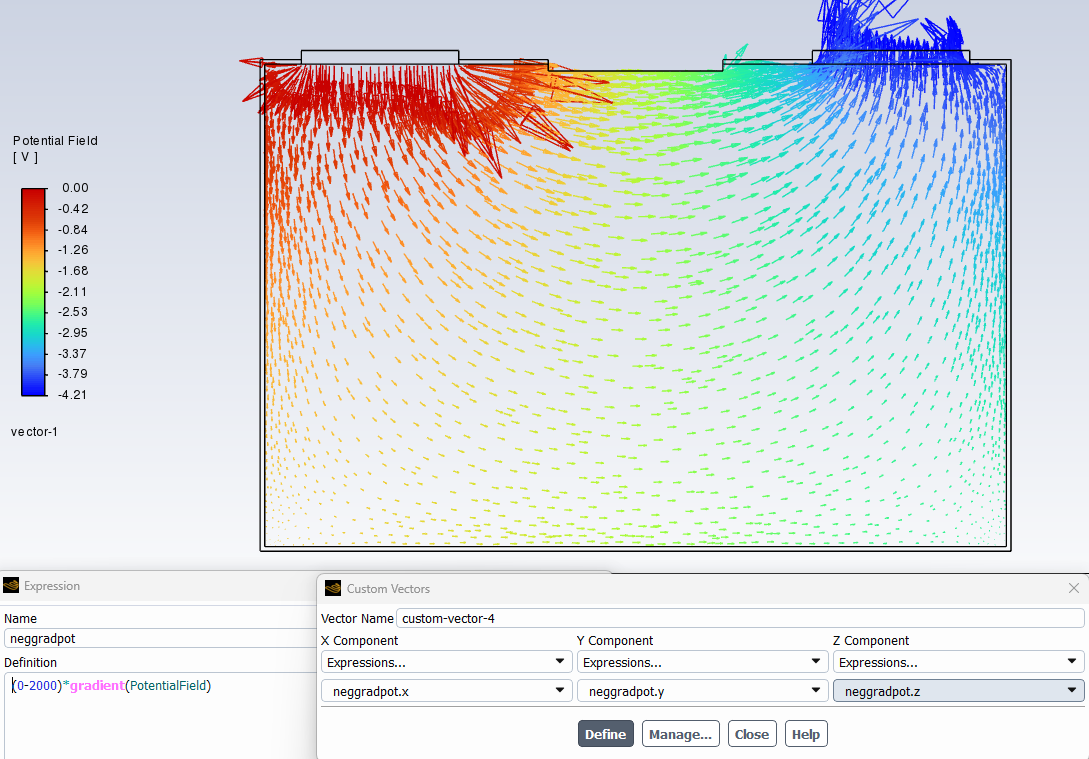

Current Distribution: The current distribution inside the cell can be generated from the potential field. The gradient of potential field is generated from an expression. A vector plot can be generated using custom vectors of the gradient components.
Ansys Solution Benefits
ANSYS offers advanced capabilities for simulating battery cells which offer numerous benefits, including enhanced design optimization, improved safety, and cost savings. By accurately predicting cell performance, manufacturers can design batteries that meet specific requirements more efficiently.
Applications of these simulations extend across various industries, such as electric vehicles, consumer electronics, and renewable energy storage solutions. They help in developing batteries with higher energy densities, longer lifespans, and better thermal management, which are critical for the advancement of these technologies.
Ansys Fluent enables the evaluation of multiple design/input factors such as cell heat release, tab current, cell geometry, material properties, and external heat transfer with the Battery Model. A thermal engineer can evaluate multiple design options to understand the thermal behavior as well as some of the electrical behavior of the cell. Beyond Fluent, ANSYS provides tools such as DesignXplorer and OptiSLang for further design parametrization and evaluation.
Ozen Engineering Expertise
Ozen Engineering Inc. leverages its extensive consulting expertise in CFD, FEA, optics, photonics, and electromagnetic simulations to achieve exceptional results across various engineering projects, addressing complex challenges like battery thermal behavior for normal and abnormal operation.
We offer support, mentoring, and consulting services to enhance the performance and reliability of your battery system. Trust our proven track record to accelerate projects, optimize performance, and deliver high-quality, cost-effective results for both new and existing systems. For more information, please visit https://ozeninc.com.
