Centrifugal Compressors: An Overview
Centrifugal compressors play a critical role in numerous industries, including automotive, aerospace, oil and gas, and energy. These devices are essential for applications that require pressurizing gases by converting kinetic energy into potential energy. Whether it's powering a turbocharger in a car engine or compressing natural gas for transport, centrifugal compressors have become indispensable for modern engineering.
What Is a Centrifugal Compressor?
At its core, a centrifugal compressor is a mechanical device that increases the pressure of a gas by accelerating it radially outward through a rotating impeller. This process converts velocity energy into pressure energy, allowing the gas to be compressed efficiently. The unique ability to operate across a wide range of flow rates and deliver high pressure ratios makes centrifugal compressors a preferred choice in many high-performance systems.
Importance of Centrifugal Compressors in Modern Applications
Automotive Industry
In automotive engineering, turbochargers rely heavily on centrifugal compressors to enhance engine efficiency and performance. By compressing air before it enters the combustion chamber, a turbocharger allows for more fuel to be burned, delivering increased power output without the need for a larger engine. This contributes to reduced emissions and better fuel economy—key considerations in today’s environmentally conscious world.
Energy and Oil & Gas
In the energy sector, centrifugal compressors are crucial for processing and transporting gases. They enable the efficient compression of natural gas for pipeline transport or storage, supporting the global energy supply chain. Their high efficiency and reliability make them a cornerstone in oil and gas operations.
Aerospace
In aerospace, centrifugal compressors are used in jet engines to compress air entering the engine, which is vital for achieving the thrust needed for flight. The compact size and efficiency of these compressors make them an excellent fit for high-speed aircraft applications.
Design Challenges in Centrifugal Compressors
The Complexity of Fluid Dynamics
The design of centrifugal compressors is far from straightforward. The flow within these devices is highly complex, involving three-dimensional and unsteady fluid dynamics phenomena. Designers must account for turbulence, separation, and secondary flow effects—all of which can significantly impact performance and efficiency.
Balancing Efficiency and Performance
A key challenge in compressor design is achieving the delicate balance between efficiency and performance. While engineers aim to maximize energy conversion, they must also ensure that the compressor operates effectively across a broad range of flow conditions. Small deviations in design can lead to issues like flow instability or efficiency losses.
Integration of Multi-Disciplinary Considerations
Modern centrifugal compressors require seamless integration of aerodynamic, structural, and thermal considerations. This multi-disciplinary approach often involves managing trade-offs between competing design objectives, such as minimizing weight while maximizing durability and efficiency.
Traditional Design Approaches: A Limitation
Historically, centrifugal compressor design relied on physical testing, empirical data, and experience-based decision-making. While these methods provided practical solutions, they often lacked the precision and flexibility required for optimizing complex systems. Additionally, iterative physical testing was both time-consuming and costly, limiting the speed of innovation.
Addressing Challenges with Advanced Simulation
Engineering Solution
With the advent of powerful computational tools, the landscape of centrifugal compressor design has transformed. Ansys has introduced an automated modular workflow to address the intricate challenges faced by designers. This approach leverages advanced simulation and automation to streamline the design process, reduce costs, and improve performance.
Features of the Ansys Workflow
- Integrated Tools: Combining parametric geometry generation with advanced simulation tools allows engineers to explore a wide range of design possibilities.
- Automation: The workflow automates complex simulation sequences, significantly reducing manual intervention and the potential for human error.
- Mesh Generation and Quality Control: Automated mesh generation ensures high-quality, reliable simulations.
- Post-Processing: Automated data processing and visualization make it easier to evaluate and optimize designs.
Benefits of the Ansys Solution
By adopting the Ansys workflow, engineers can achieve:
- Reduced Development Time and Costs: Automation eliminates redundant tasks and speeds up the design cycle.
- Improved Accuracy: Advanced simulation minimizes reliance on assumptions and manual processes, resulting in higher precision.
- Enhanced Customization: Parametric design capabilities allow engineers to test multiple configurations and optimize designs for specific applications.
Whether it’s improving a turbocharger’s efficiency or developing next-generation compressors for energy applications, the Ansys solution empowers engineers to push the boundaries of innovation while saving time and resources.
Challenges in Centrifugal Compressor Design
Compressors of different shapes and sizes have been used a long time for generating pressure rise by adding energy to the continuous flow of fluid through the rotor. They are also heavyly utilized in turbochargers in automotive industry. Figure 1 shows a typical centrifugal (radial) compressor impeller.

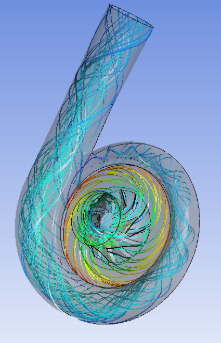

Fig. 1 Impeller
Centrifugal compressors are built to operate over a broad range of flow rates and to provide a high pressure ratio with high efficiency. The flow through a centrifugal compressor is very complex with 3-dimensional and unsteady flow phenomena that requires accurate prediction models for design.
Engineering Solution
Traditionally testing, empirical and experience-based data has been used to design compressors. As more computational power and higher fidelity numerical models were available, computer aided design methods have became the norm.
Ansys has recently developed an automated modular workflow for the design of centrifugal compressors to address the following challenges:
1. Integration of multi-disciplinary tools such as parametric geometry and simulation tool integration.
2. Automation of complex simulation sequences along with multiple design variables.
3. Automatic mesh generation with quality control.
4. Automated post processing.

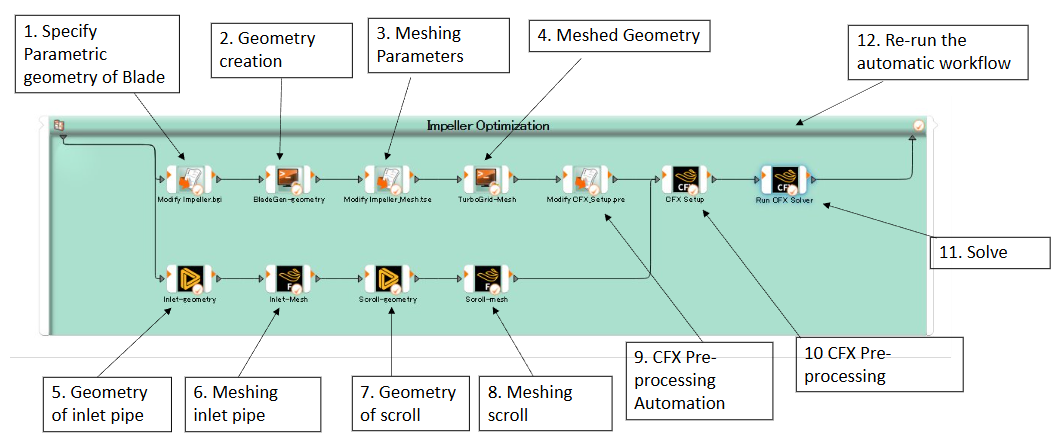

The solution architecture (in OptiSlang) is shown below:
Fig. 2 Ansys solution architecture
Ansys Solution Benefits
Customers who use the Ansys workflow for the design of centrifugal compressor (turbocharger) enjoy the following benefits:
1. Reduced engineering development time and cost due to automation.
2. Improved accuracy due to less human intervention.
3. Parametrization allowing for design customization and checking what-if scenarios.

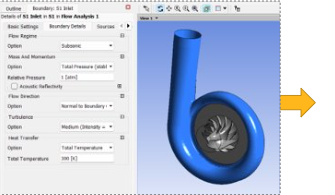

Fig. 3 Automated design to solution visualization
Ozen Engineering Expertise
Ozen leverages its extensive consulting expertise in CFD, FEA, optics, photonics, and electromagnetic simulations to achieve exceptional results across various engineering projects, addressing complex challenges like multiphase flows, erosion modeling, and channel flows using Ansys software.
We offer support, mentoring, and consulting services to enhance the performance and reliability of your hydraulic systems. Trust our proven track record to accelerate projects, optimize performance, and deliver high-quality, cost-effective results for both new and existing water control systems. For more information, please visit https://ozeninc.com.
